IMM80 High-Definition Imaging Lens Set
The IMM80 series high-definition imaging lens set includes three lenses with different diameters and thicknesses, specifically designed for imaging. Made of optical glass material, these lenses undergo high-precision grinding and polishing processes to ensure high transparency. The lenses feature multiple anti-reflective coatings, providing high color separation and excellent imaging quality. The system can be freely combined with LED light sources and imaging lenses, enabling variable focus optical imaging systems.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Optical Product Series | IMM80 |
| Product Category | High-definition imaging |
| LED Light Source | High-power LED or COB, emitting surface ≤28mm; LED modules such as MATBEAM and MATGOBO series |

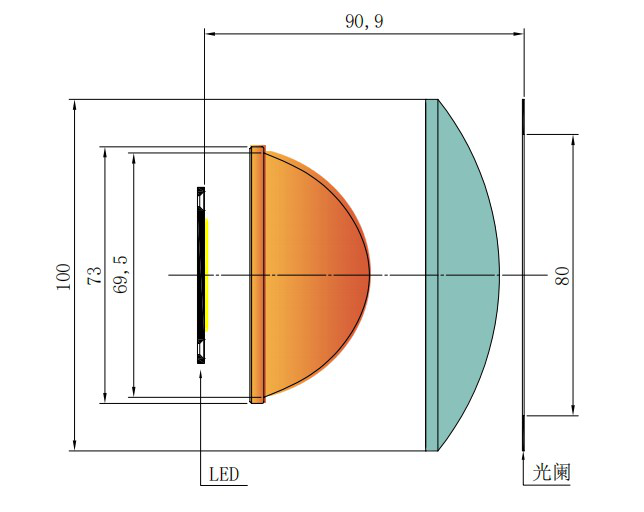

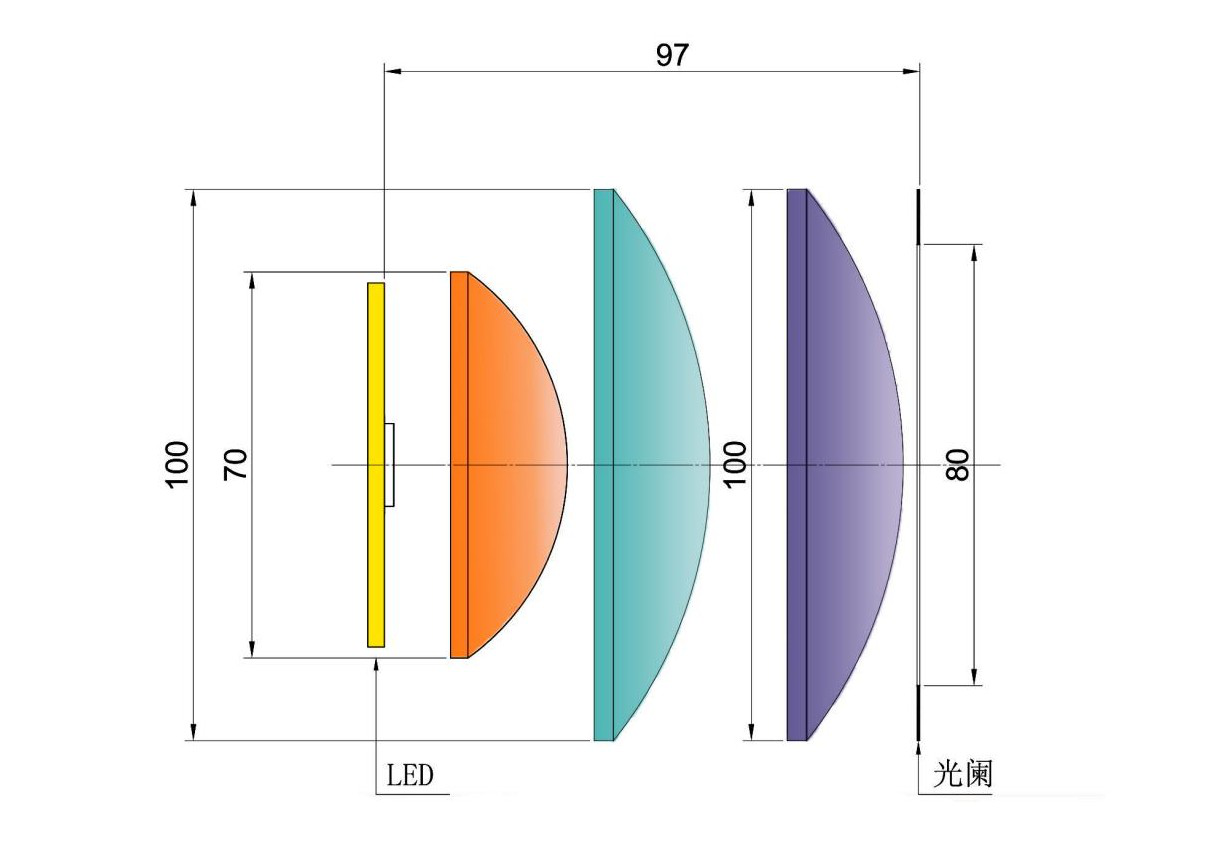

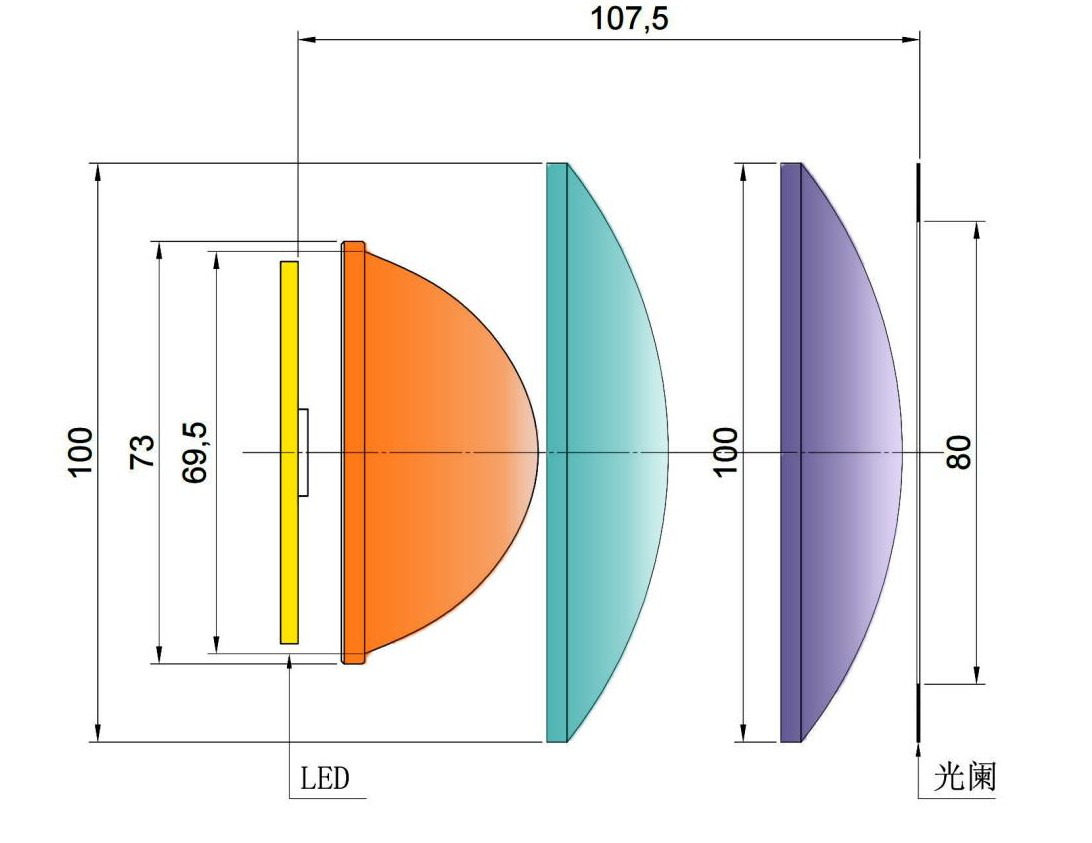

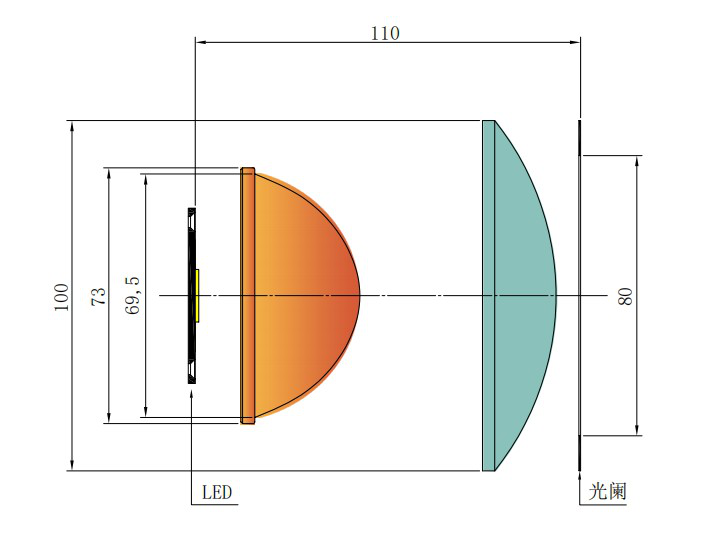

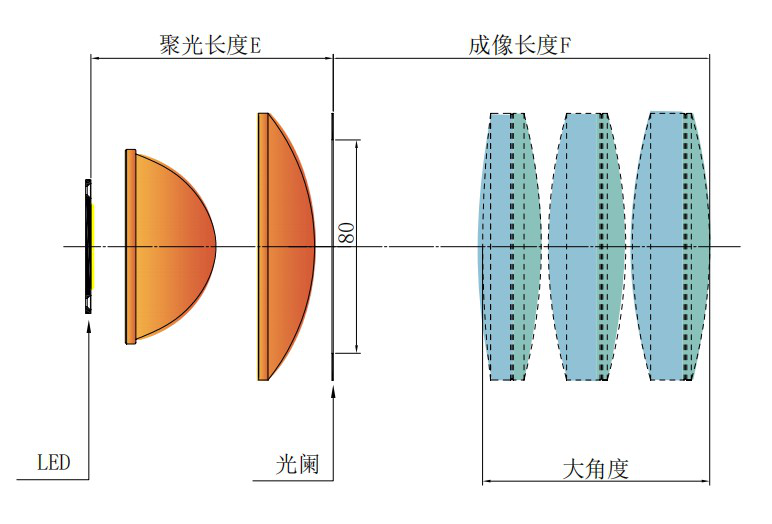

| Condensing Lens Group | IMMDX100X270, diameter Ø100mm and Ø70mm; IMMDX100X273, diameter Ø100mm and Ø73mm; IMMDX10073, diameter Ø100mm and Ø73mm |
| Aperture Size | Ø80mm |
| Imaging Lens Size | Ø100mm, Ø140mm |
| Lens Coating | Multiple anti-reflective coatings |
| Optional Imaging System Angles | 14°, 19°, 26°, 36°, 40°, 50°, 55° |

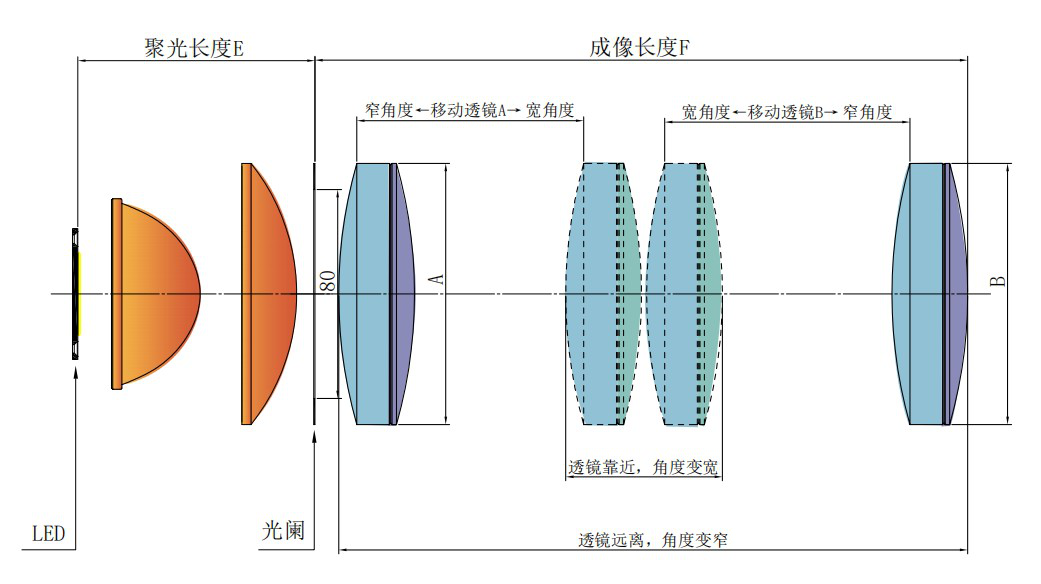

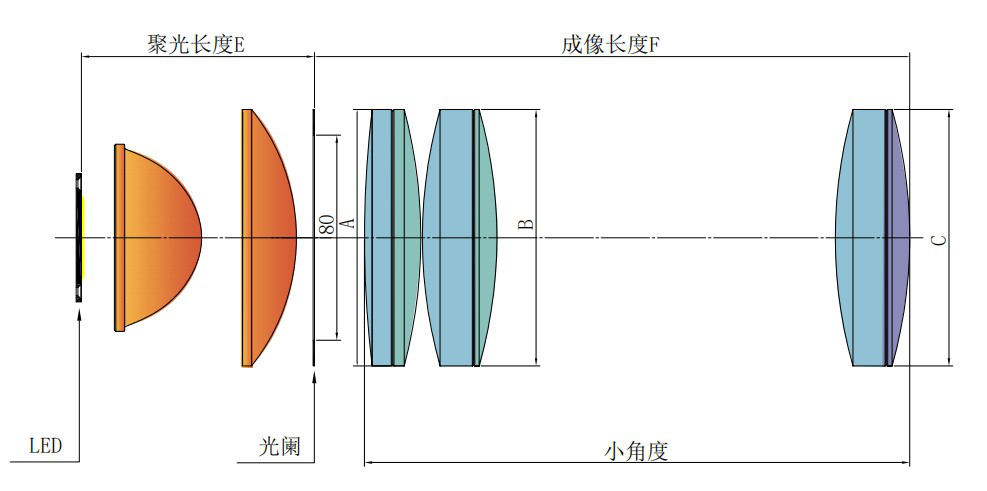

| Angle Zoom Description | IMM80-F36, fixed angle, 36°; IMM80-Z1530, variable angle, zoom range 15°-30° |
