IMM80S-F60 Projection Lens
IMM80S-F60 is a high-definition imaging projection lens with no distortion, designed for LED applications. It features precision grinding technology and high-quality coating for enhanced transparency and imaging quality.
Save to Favorites
Overview
Specifications

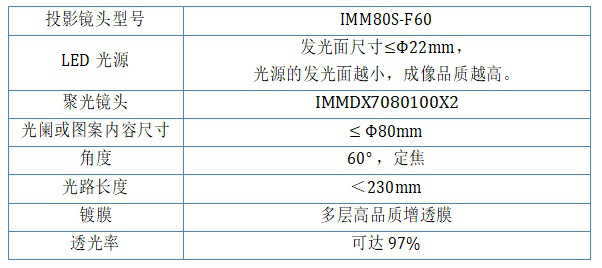

| Parameter | Value |
|---|---|
| Projection Lens Model | IMM80S-F60 |
| LED Light Source | Emission surface size ≤Φ22mm |
| Condensing Lens | IMMDX7080100X2 |
| Aperture or Pattern Content Size | ≤Φ80mm |
| Angle | 60°, fixed focus |

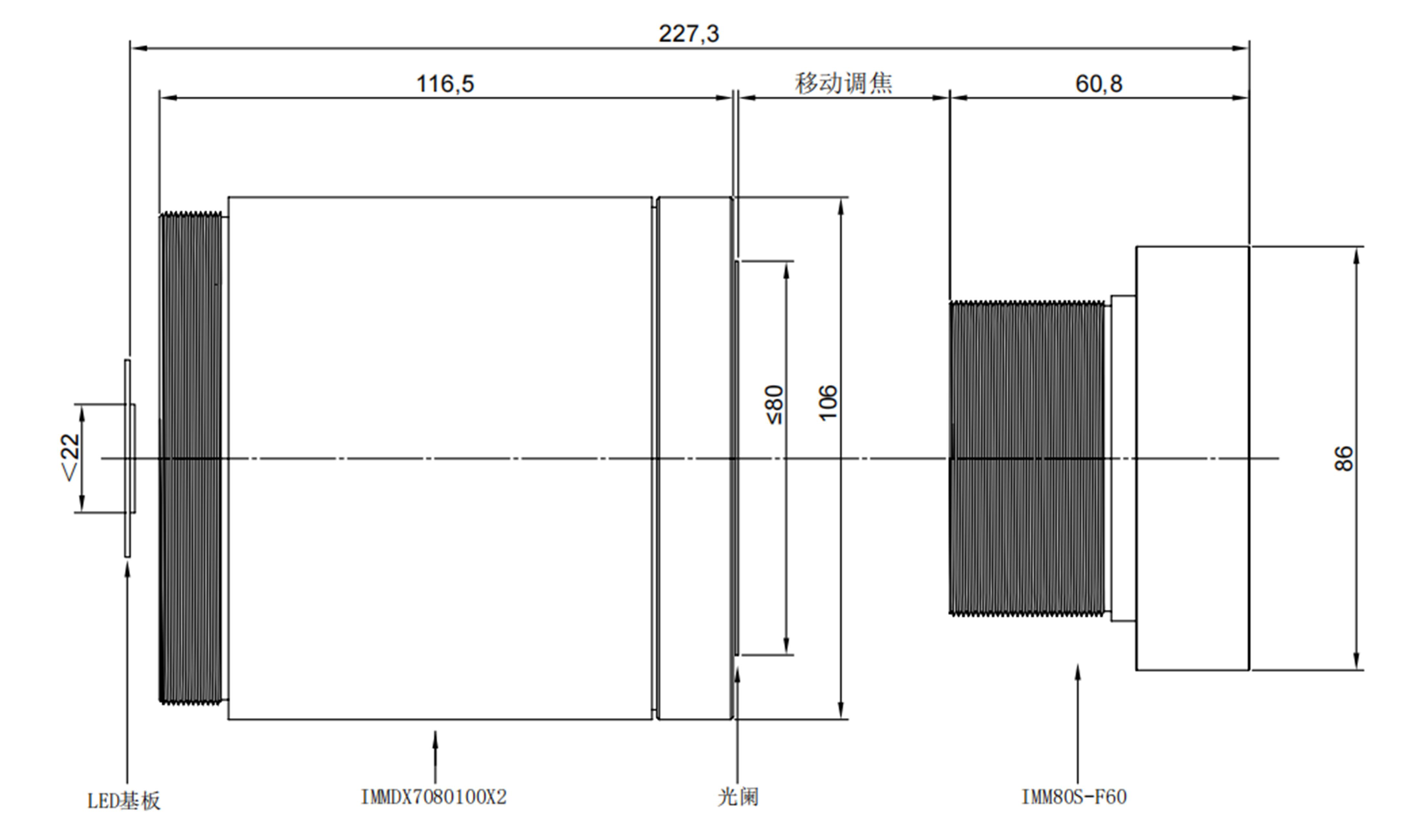

| Optical Path Length | <230mm |
| Coating | Multi-layer high-quality enhanced coating |
| Transmittance | Up to 97% |
Applications
Key Features
Datasheet
