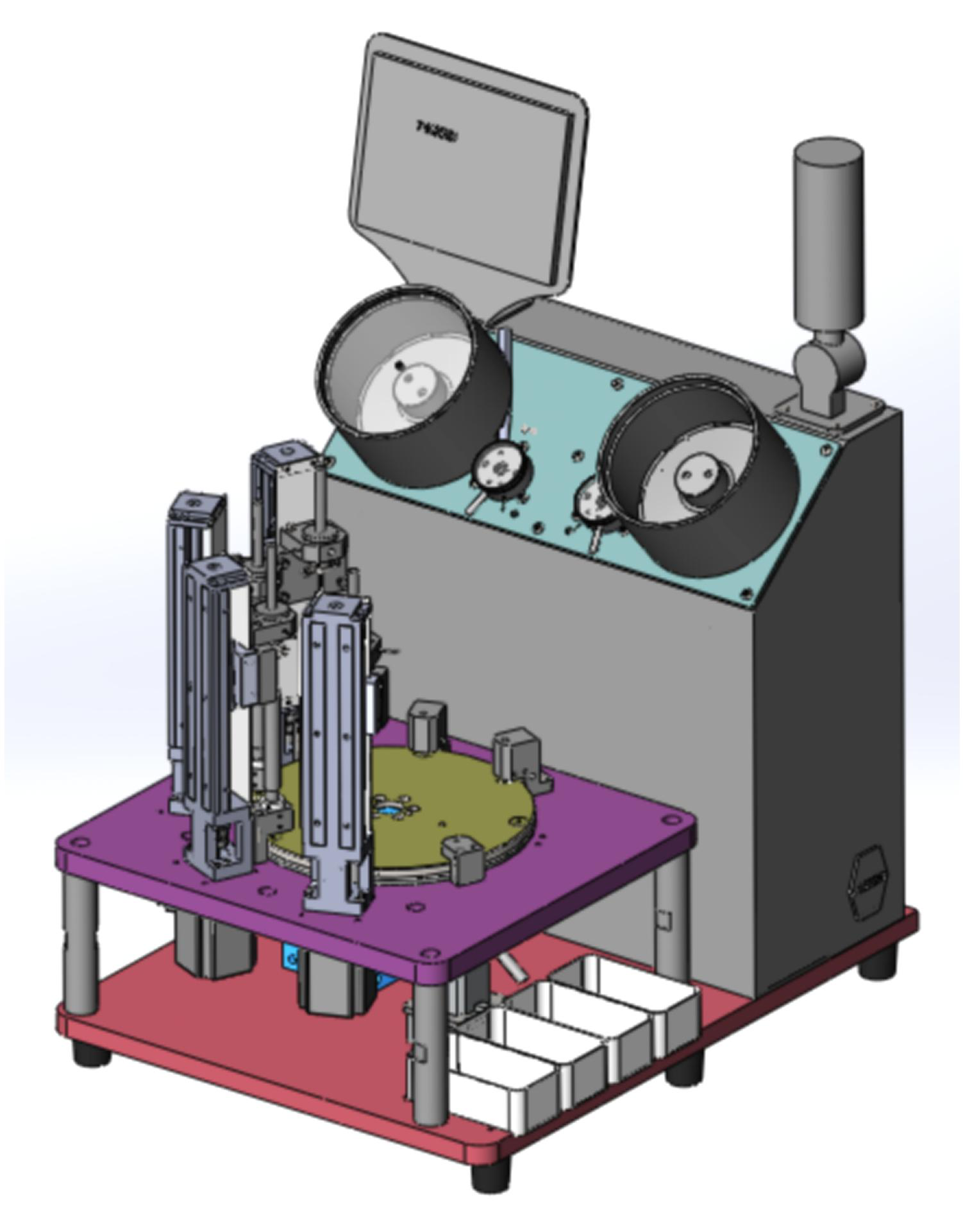

Fiber Ceramic Ferrule Inner Diameter Automatic Sorting Machine
This machine is designed for automatic sorting of fiber ceramic ferrules with an inner diameter of 2.5mm. It ensures high precision and efficiency in sorting operations.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|

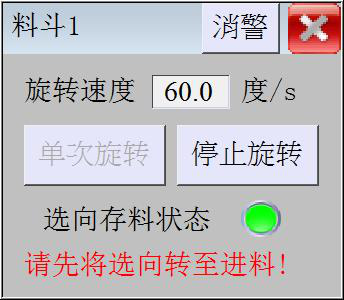

| Hopper 1 | 60°/s |
| Hopper 2 | 60°/s |

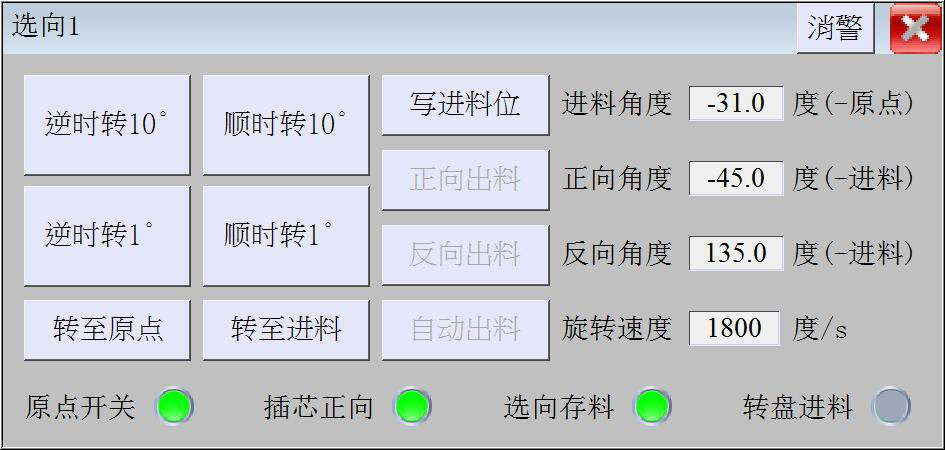

| Direction Selection 1 | -31° |

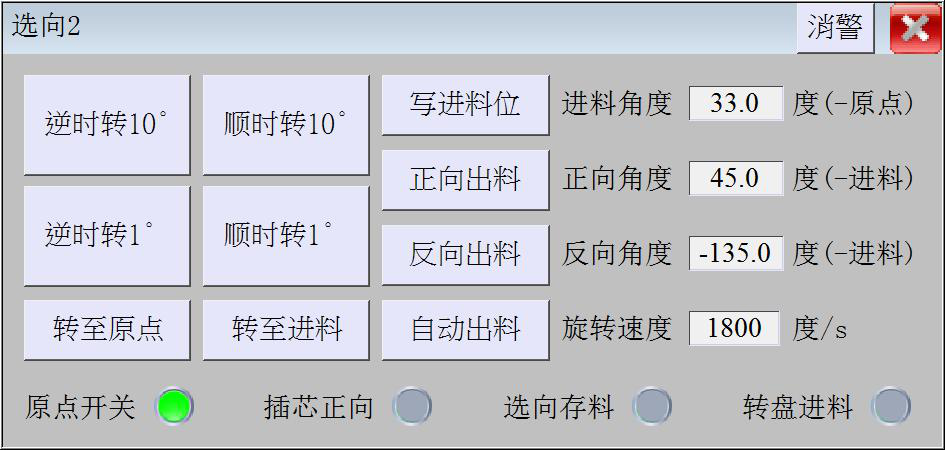

| Direction Selection 2 | 33° |
| Forward Angle | 45° |
| Reverse Angle | 135° |
| Rotation Speed | 1800°/s |

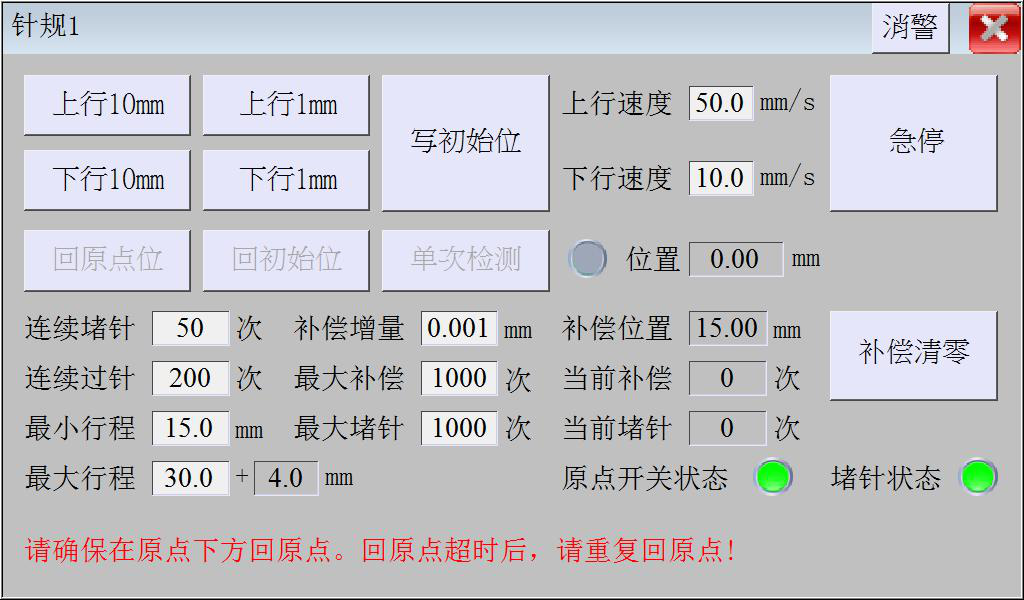

| Needle Gauge 1 Upward Speed | 50mm/s |
| Needle Gauge 1 Downward Speed | 10mm/s |
| Needle Gauge 1 Compensation Increment | 0.001 |
| Needle Gauge 1 Compensation Position | 15.00mm |
| Needle Gauge 1 Maximum Stroke | 30.0±4.0mm |

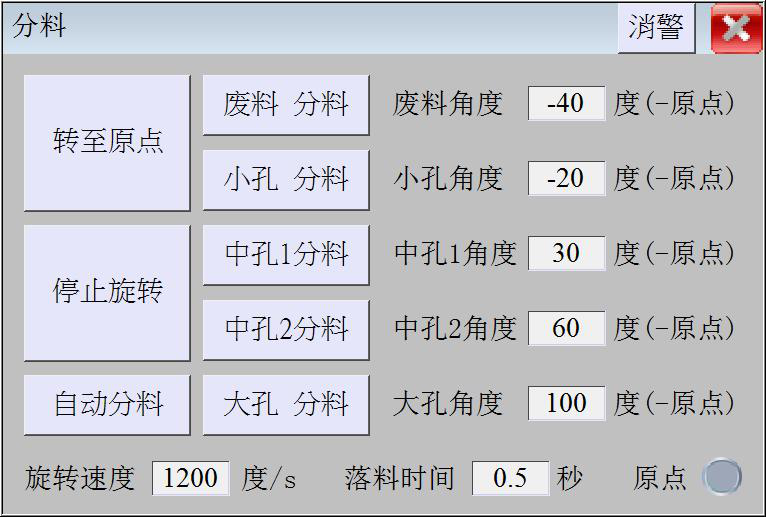

| Waste Material Angle | -40° |
| Small Hole Angle | -20° |
| Middle Hole 1 Angle | 30° |
| Middle Hole 2 Angle | 60° |
| Large Hole Angle | 100° |
| Sorting Rotation Speed | 1200°/s |
| Drop Time | 0.5s |
