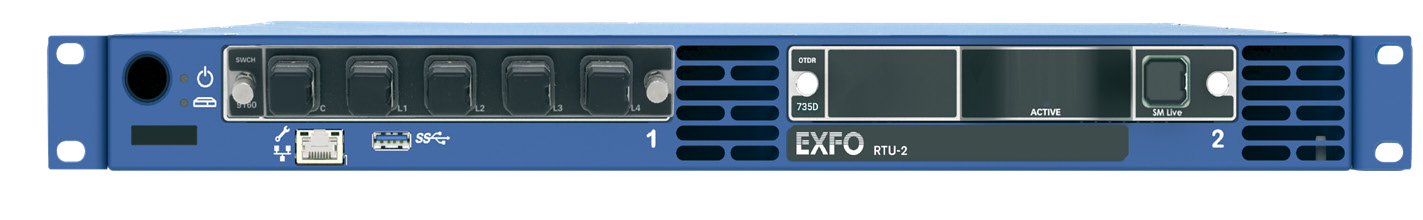

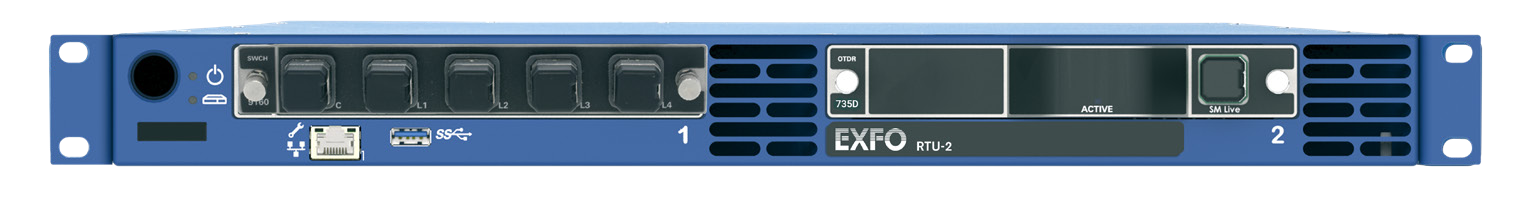

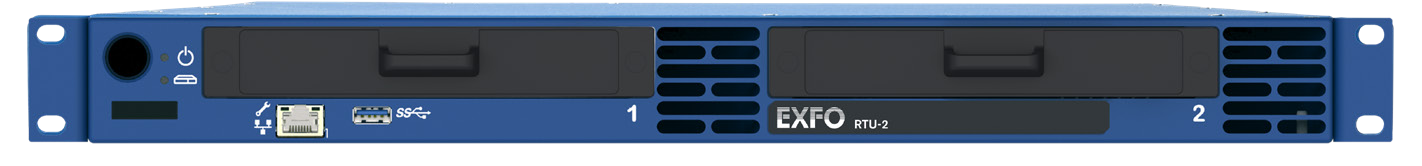

RTU-2
RTU-2 is a modular OTDR-based remote test unit designed for centralized and remote fiber testing and monitoring. It supports high fiber count testing, auditing, troubleshooting, and continuous monitoring of point-to-point (P2P) and passive optical networks (PONs).
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Mainframe | Quad-core Intel i7 processor / 8GB / Linux embedded |
| Front interfaces | RJ45 10/100/1000Mbit/s (management port), USB3.0 |

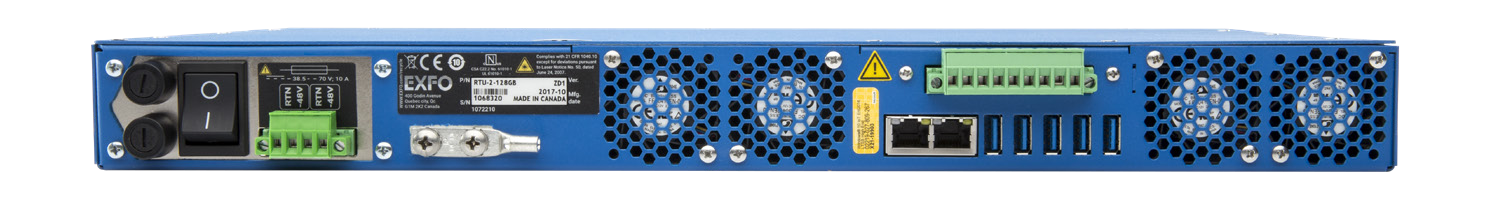

| Rear interfaces | RJ45 10/100/1000Mbit/s (management + Ethernet ports) (2), USB3.0 (5), Relay contact: 3 (power, system and user configurable) |
| Storage | 128GB SSD internal memory |
| Power Supply | -48VDC, 10A (ordering option: external AC-DC adapter for AC operation) |
| Power Consumption | Idle state: 25W, OTDR measuring: 40W (typical) |
| Dimensions | 44mm (1U) x 482mm x 262mm (1¾in x 19in x 10⅜in) |
| Weight | 5.1kg (11.2lb) |
| Operating Temperature | -5°C to 50°C (23°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | <95% non-condensing |
| EMC/EMI Certification | EN61326-1, CISPR11, FCC47CFR Part15, SubpartB, ICES-001, ETSI/EN300386 |
| Electrical Safety Certification | IEC/EN61010-1, USA/UL61010-1, CAN/CSA-C22.2 61010-1-12 |
| Optical Safety Certification | IEC60825-1 |
| NEBS Certification | GR-63-CORE, GR-1089-CORE |
| ETSI Certification | ETSI/EN300019-2-1, ETSI/EN300019-2-2, ETSI/EN300019-2-3, ETSI/EN300753, ETSI/EN300132-2 |

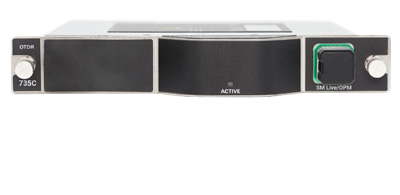

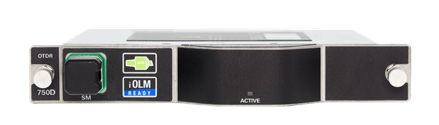

| Wavelength | FTBx-735D-SM7R: 1650nm, FTBx-750D-SM1: 1310/1550nm, FTBx-750D-SM3: 1310/1550/1625nm |
| Dynamic Range at 20μs (dB) | FTBx-735D-SM7R: 49/49/46, FTBx-750D-SM1: 49/49/46, FTBx-750D-SM3: 50/48/47 |
| Event Dead Zone (m) | FTBx-735D-SM7R: 2.5, FTBx-750D-SM1: 2.5, FTBx-750D-SM3: 2.5 |
| Attenuation Dead Zone (m) | FTBx-735D-SM7R: 8, FTBx-750D-SM1: 8, FTBx-750D-SM3: 8 |
| Sampling Resolution | FTBx-735D-SM7R: 0.04 to 10m, FTBx-750D-SM1: 0.04 to 10m, FTBx-750D-SM3: 0.04 to 10m |
| Sampling Points | FTBx-735D-SM7R: Up to 256000, FTBx-750D-SM1: Up to 256000, FTBx-750D-SM3: Up to 256000 |
| HRD Measurement Time (s) | FTBx-735D-SM7R: 5 |
| HRD Measurement Loss Range (dB) | FTBx-735D-SM7R: 13 to 37 |

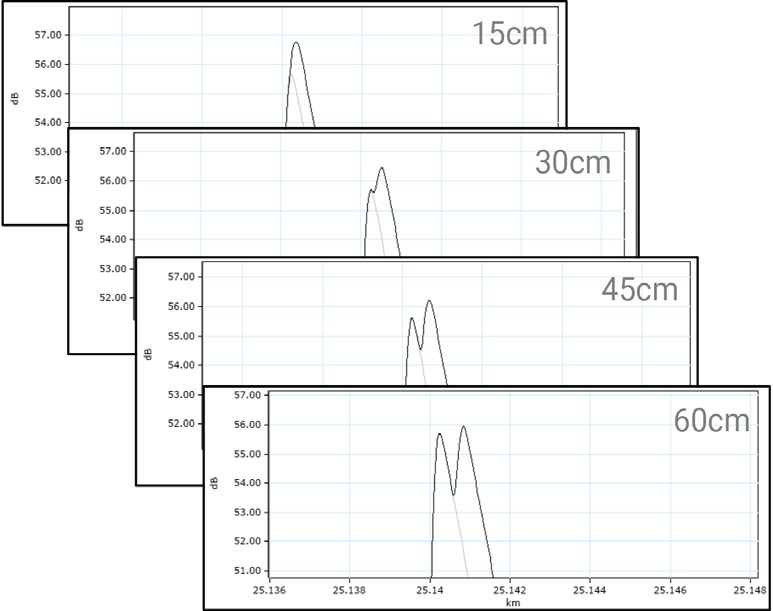

| HRD Minimum Distance Separation (m) | FTBx-735D-SM7R: 0.6 |
| First Splitter to HRD Maximum Distance (m) | FTBx-735D-SM7R: 8 |
| Source Mode Tone Frequencies (Hz) | FTBx-735D-SM7R: 270,330,1000,2000, FTBx-750D-SM1: 270,330,1000,2000, FTBx-750D-SM3: 270,330,1000,2000 |

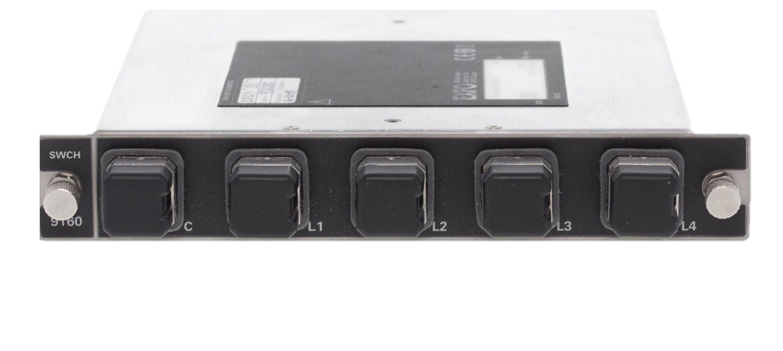

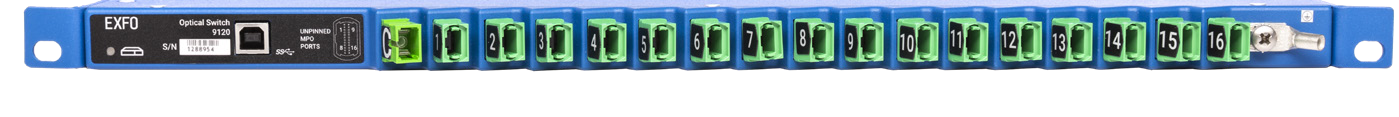

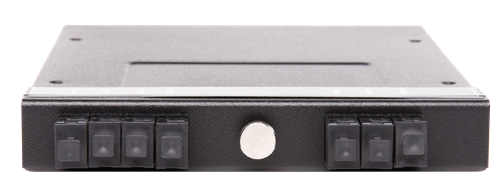

| Number of Output Ports | FTBx-9160: 4, FTBx-9110: 12 |
| Operation Wavelength Range (nm) | FTBx-9160: 1290-1650, FTBx-9110: 1260-1650 |
| Insertion Loss at 1530nm-1650nm (dB) | FTBx-9160: 0.7, FTBx-9110: 1.6 |
| Lifetime in Cycles | FTBx-9160: >1 billion (10^9), FTBx-9110: >1 billion (10^9) |
| Interface | FTBx-9160: SC-APC, FTBx-9110: LC-APC |
