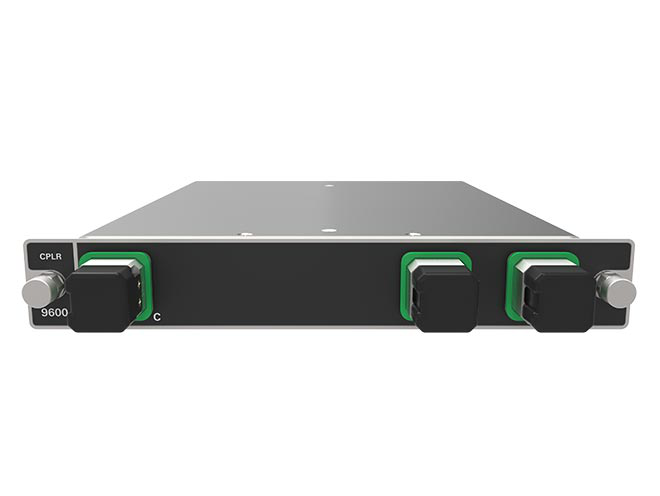

FTBx-9600 Utility Module
The FTBx-9600 Utility Module integrates couplers and splitters for use in LTB and FTB platforms, offering extended band coverage and compatibility with EXFO's Universal Interface.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Fiber Type | Singlemode 9/125 μm, Multimode 50/125 μm |
| Wavelength Range (nm) | 1240 to 1680 |
| Coupling Ratio | 1/99, 10/90, 25/75, 5/95, 50/50, 25 (1x4), 12.5 (1x8) |
| Insertion Loss (dB) 1x2 | 23/0.8, 11.9/1.4, 6.9/2.1, 14.2/0.8, 4/4, 7.5, 11 |
| PDL (dB) | 0.15, 0.3 |
| Return Loss (dB) | 50, 45 |
| Maximum Input Power (mW) | 300 |
| Center Wavelength (nm) | 1295, 1300.1, 1304.6, 1309.1, 1271, 1291, 1311, 1331, 850, 1304.5, 1309.1, 1345.1, 1277.89, 1282.26, 1286.6 |
| Pass Bandwidth (nm) | ±1.4, ±5.0 |
| Isolation Adjacent Channel (dB) | 25 |
| Isolation Non-Adjacent Channel (dB) | 35 |
| Uniformity (dB) | 50/50 |
