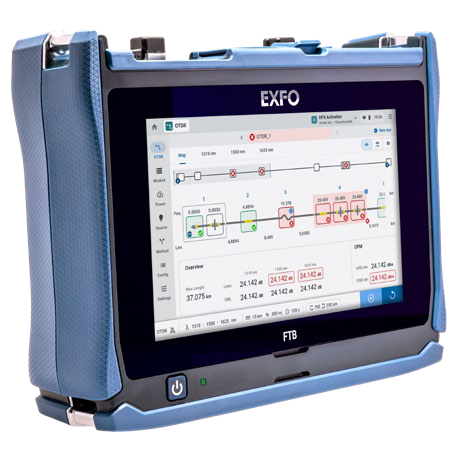

Intelligent Optical Link Mapper (iOLM)
The Intelligent Optical Link Mapper (iOLM) is an OTDR-based application designed to simplify fiber testing and optimize characterization accuracy for all network topologies. Powered by intelligent algorithms, it dynamically locates and identifies all network components and faults with maximal resolution, making expert-level fiber testing accessible to all.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Dynamic multipulse acquisition | Standard iOLM |
| Intelligent trace analysis | Available |

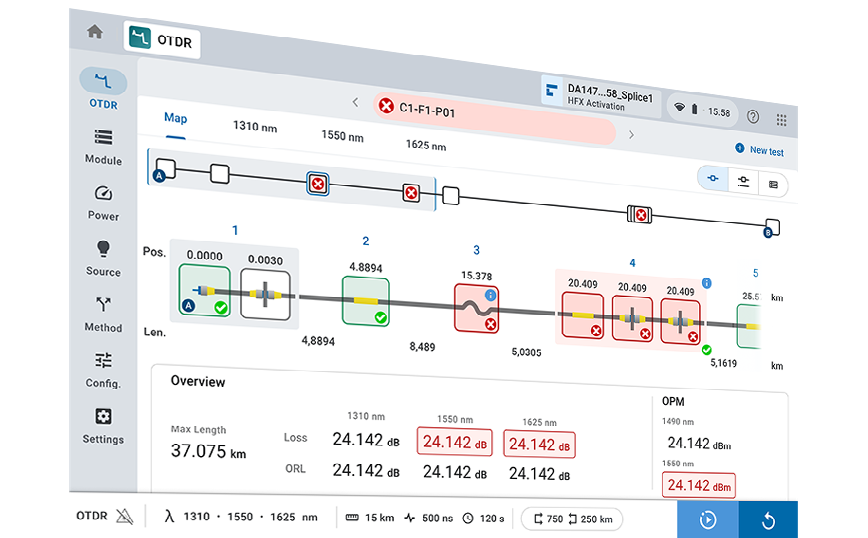

| Single link view and event table | Available |
| Intelligent diagnostics | Available |
| SOR trace generation | Available |
| Single iOLM file per link for easy reporting | Available |

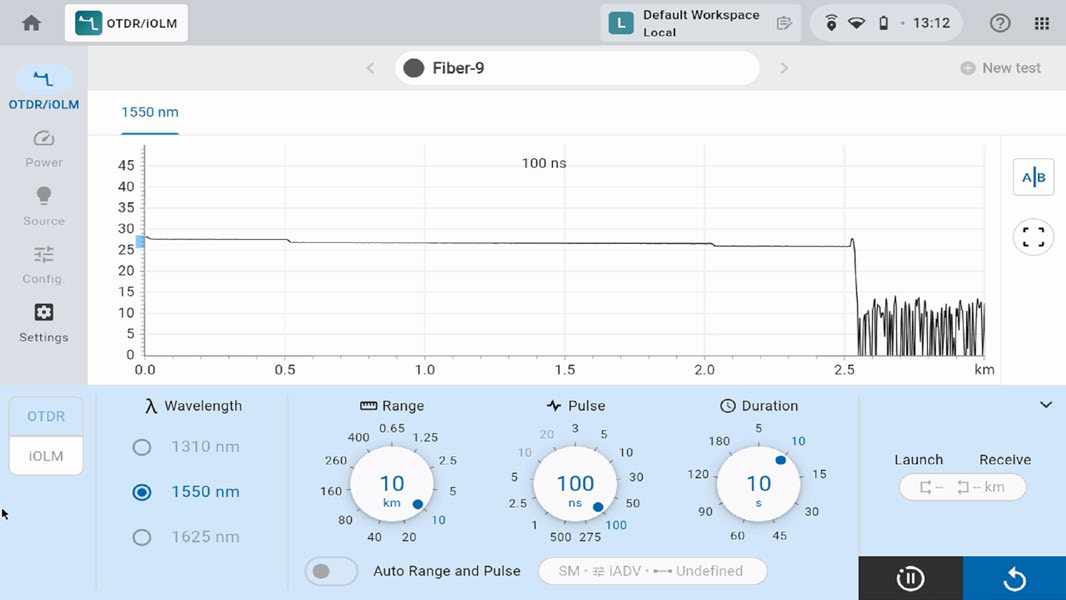

| Real-time OTDR | iADV |
| Optimode: Short-link close event | iADV |
| Optimode: Fast short link | iADV |
| Optimode: Fast medium range | iADV |
| Optimode: SFP safe troubleshooting | iADV |
| Optimode: FTTH full link characterization | iADV |
| Unbalanced/tapered splitters | Upcoming (June 2026) |

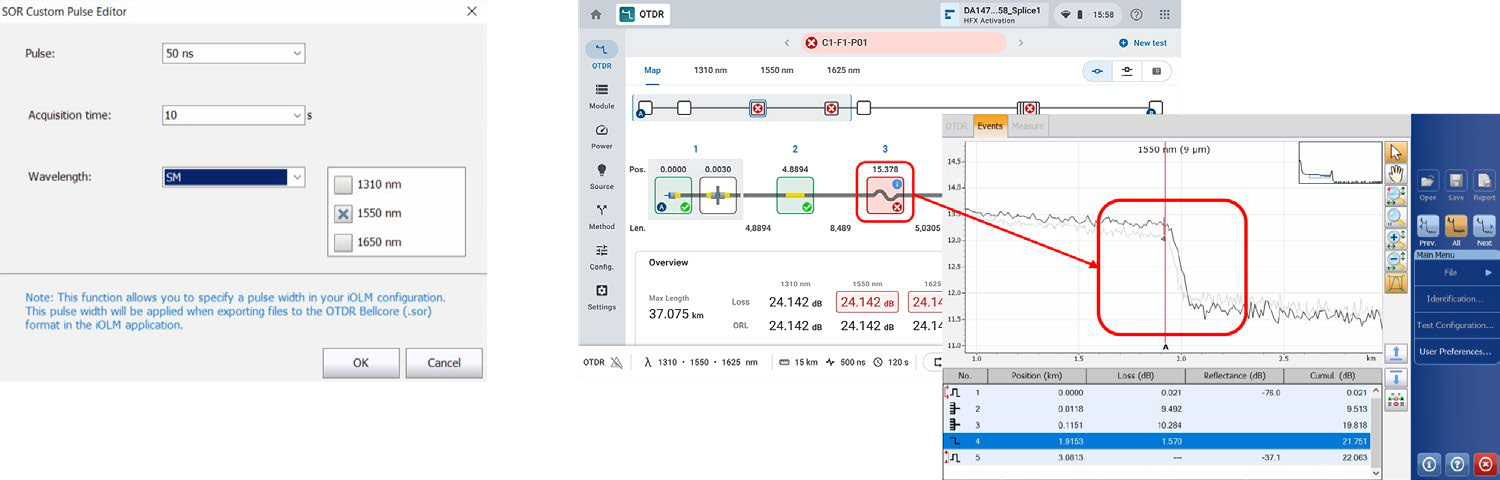

| SOR pulse width and wavelength editor | Available |

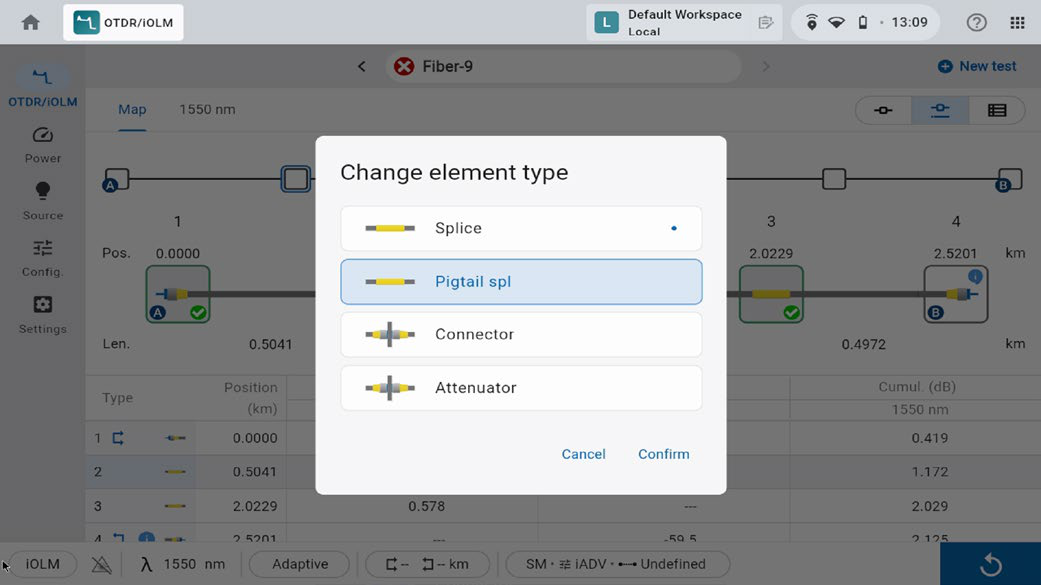

| Custom elements | Available |

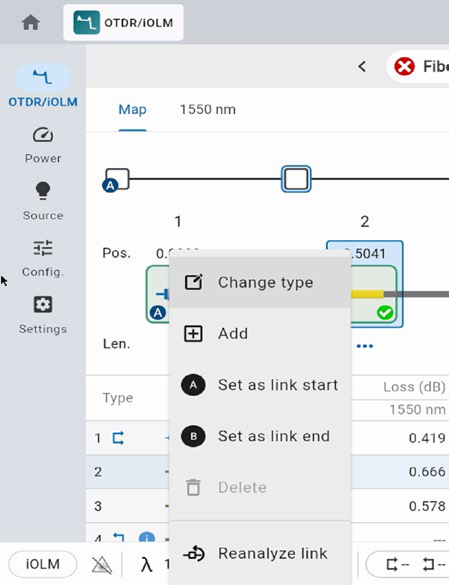

| Advanced link edition and re-analysis | Available |
| 2:N splitter characterization | Available |
| iOLM loopback | Available |
| Dual-ended automated bidirectional iOLM | Available |
