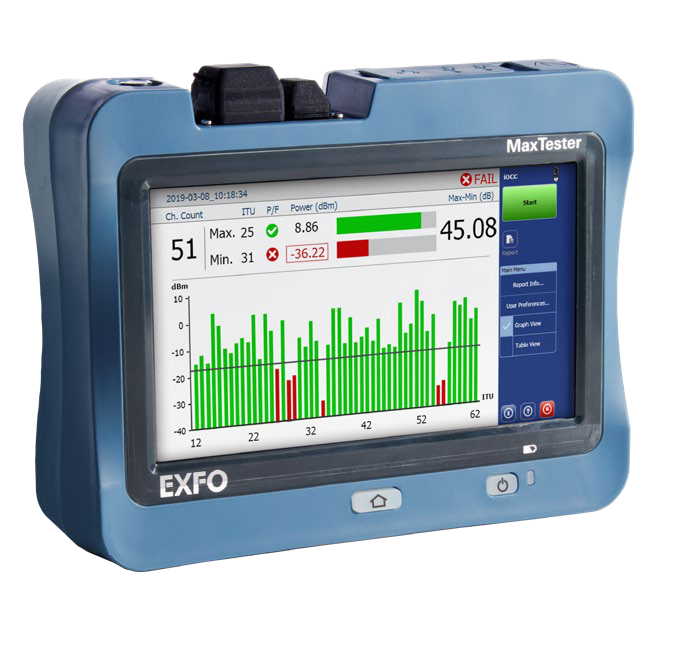

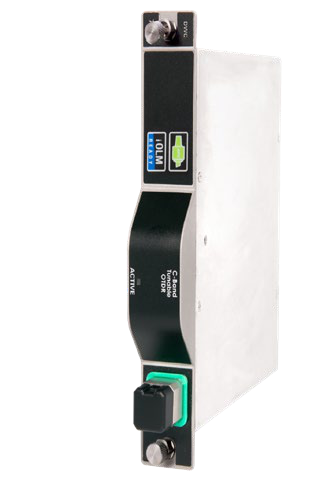

Optical Wave Expert

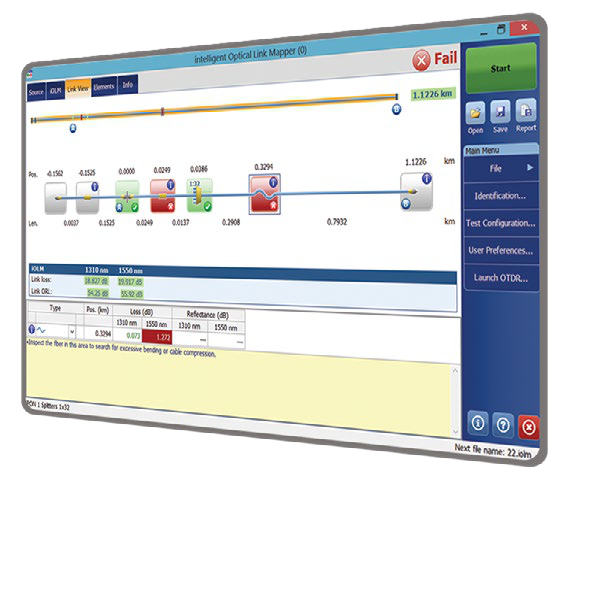

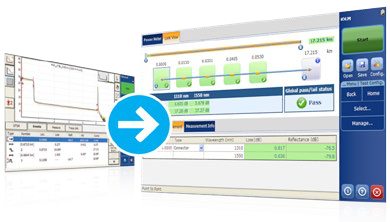

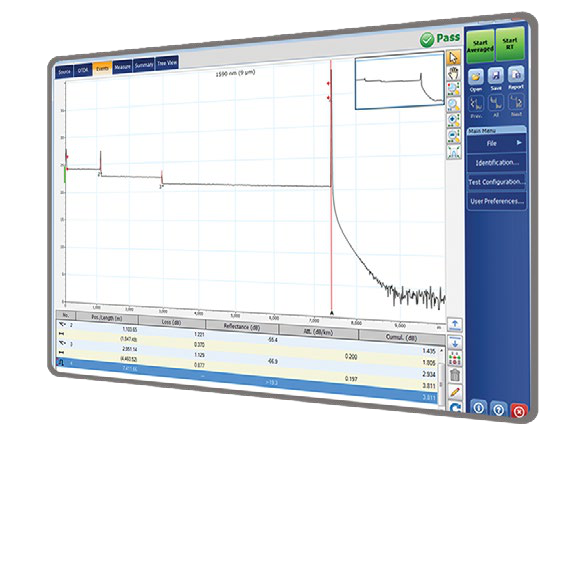

The Optical Wave Expert is an innovative device that combines channel power validation with tunable DWDM OTDR capabilities on a single port, enabling efficient measurement, diagnosis, and troubleshooting of optical networks.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Laser Nominal Wavelength | C-band tunable 1527.99-1567.95nm ITU-T G.694.1 channels 12-62 (191.2-196.2THz) |
| Central Wavelength Uncertainty | DWDM 50GHz channel wavelength control |
| Channel Spacing | DWDM 100GHz |
| Dynamic Range at 20μs (dB) | 40 |
| Event Dead Zone (m) | 0.7 |
| Attenuation Dead Zone (m) | 3.5 |
| Distance range (km) | 0.1 to 400 |
| Pulse Widths (ns) | 5 to 20000 |
| Sampling Points | Up to 256000 |
| Sampling Resolution (m) | 0.04 to 10 |
| Distance Accuracy (m) | ±(0.75+0.0025×distance+resolution) |
| Wavelength Range (C-band) | 1527.99-1567.95nm (191.2-196.2THz) |
| ITU Channels | ITU-T G694.1 channels 12-62 |
| Dynamic Range per Channel (dBm) | 10 to -40 |
| Maximum Total Safe Power (dBm) | 20 |
| Absolute Power Uncertainty (dB) (Typical) | 1 |
| ORL (dB) | >35 |
| Measurement Time (s) | <3 |
| Calibrated Wavelengths (nm) | 850,1300,1310,1490,1550,1625,1650 |
| Power Range (dBm) | 27 to -50 |
| Uncertainty (%) | ±5%±10mW |
| Display Resolution (dB) | 0.01±max to -40dBm |
| Automatic Offset Nulling Range (dB) | Max power to -30dBm |
| Tone Detection (Hz) | 270/330/1000/2000 |
| Display | 7in (178mm) outdoor-enhanced touchscreen, 800×480 TFT |
| Interfaces | Two USB2.0 ports RJ45 LAN 10/100Mbit/s |
| Storage | 2GB internal memory (20000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery 8 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
| Power Supply | Power supply AC/DC adapter, input 100-240VAC, 50-60Hz |
| Size (H×W×D) | 166mm×200mm×68mm (6½in×7⅞in×2¾in) |
| Weight (with battery) | 1.5kg (3.3lb) |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% noncondensing |
