MaxTester 720D Access OTDR

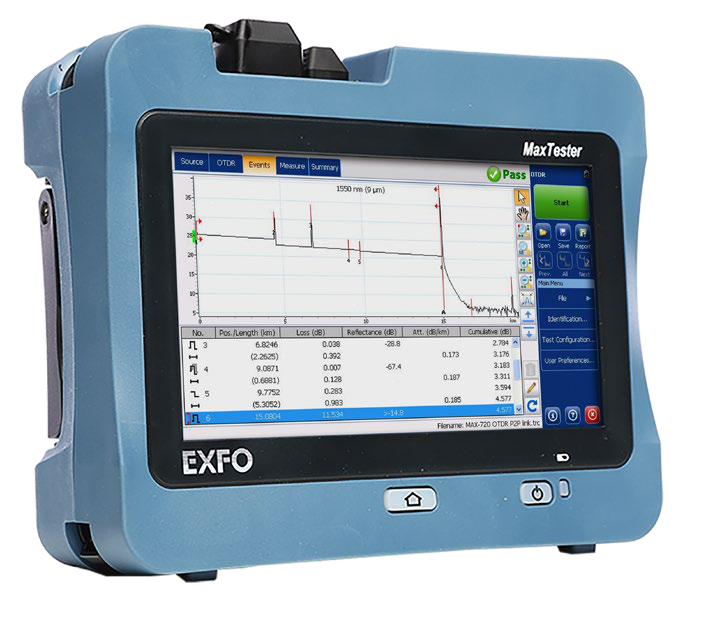

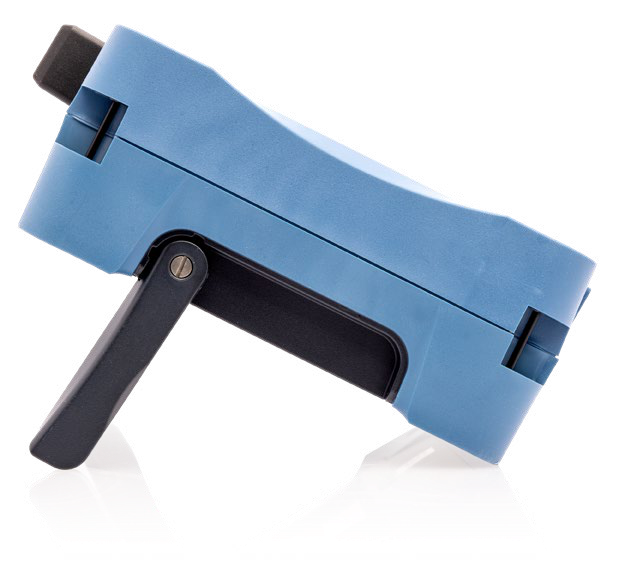

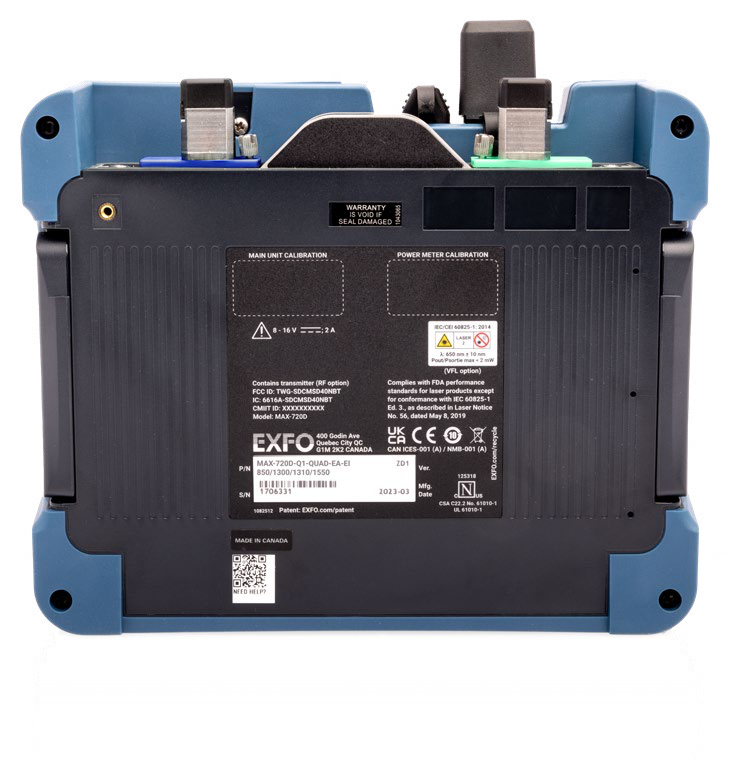

The MaxTester 720D is a fully featured, entry-level OTDR optimized for multimode and singlemode access network construction and troubleshooting. It features a rugged, tablet-inspired design, a 7-inch outdoor-enhanced touchscreen, and advanced capabilities for fiber characterization and testing.
Save to Favorites
Overview
Specifications

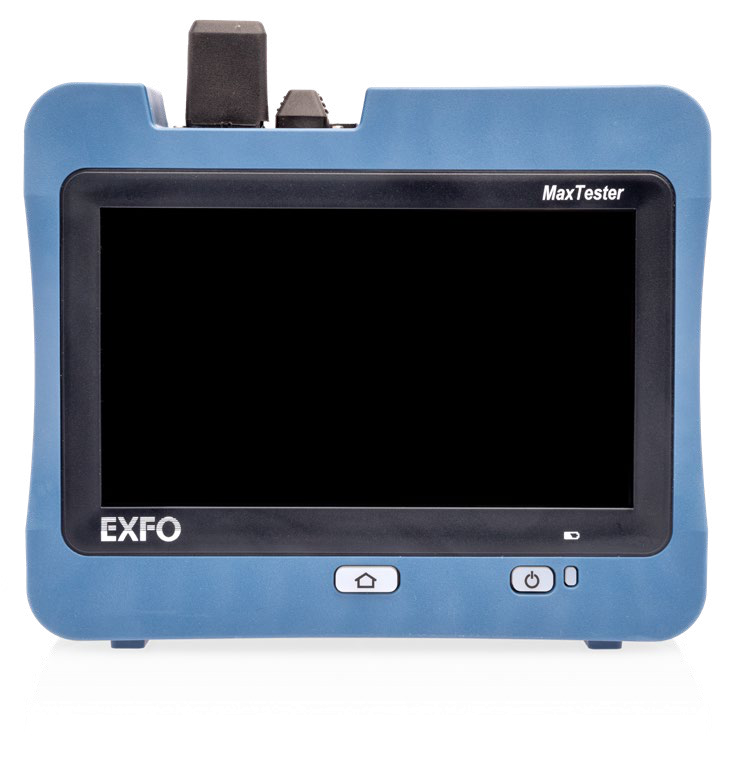

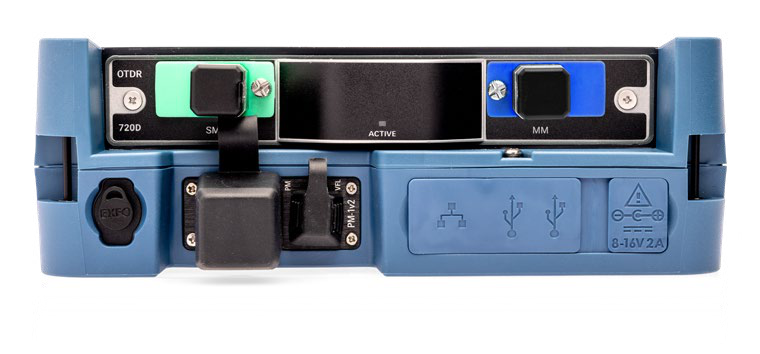

| Parameter | Value |
|---|---|
| Display | 7-in (178-mm) outdoor-enhanced touchscreen, 800×480 TFT |
| Interfaces | Two USB2.0 ports, RJ45 LAN 10/100Mbit/s |
| Storage | 2GB internal memory (20,000 OTDR traces, typical) |
| Batteries | Rechargeable lithium-polymer battery, 12 hours of operation |
| Power Supply | AC/DC adapter, input 100-240VAC, 50-60Hz |
| Wavelength Range | 850±20/1300±20/1310±30/1550±30/1650±15 |
| Live Wavelength | 1650nm |
| Dynamic Range (dB) | 26/29/35/35/35 |
| Event Dead Zone (m) | MM: 0.7, SM: 0.7 |
| Attenuation Dead Zone (m) | MM: 2.5, SM: 2.5 |
| PON Dead Zone (m) | 35 |
| Distance Range (km) | MM: 0-40, SM: 0-260 |
| Pulse Width (ns) | 3 to 20,000 |
| MM Launch Conditions | EF-compliant |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 to 0.40 |
| Loss Resolution (dB) | 0.001 |
| Sampling Resolution (m) | MM: 0.04 to 5, SM: 0.04 to 10 |
| Sampling Points | Up to 256,000 |
| Distance Uncertainty (m) | ±(0.75+0.0025×distance+sampling resolution) |
| Measurement Time | User-defined |
| Reflectance Accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 4 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable Wavelengths (nm) | 1310, 1490, 1550, 1577, 1625, 1650 |
| Tone Detection (Hz) | 270/330/1000/2000 |
Applications

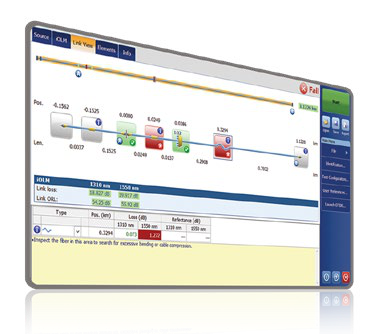

Key Features
Datasheet
