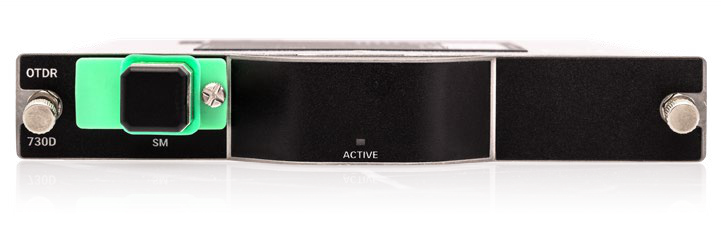

FTBx-730D PON FTTx/MDU OTDR
The FTBx-730D PON FTTx/MDU OTDR is optimized for fiber deployments and troubleshooting in FTTx/MDU applications. It is designed for field technicians to seamlessly characterize splitters in PON networks and ensure efficient service activation and maintenance.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelengths (nm) | 1310±20/1550±20/1625±10/1650±15 |
| Live Wavelength (nm) | 1650 |
| Dynamic range (dB) | 42/40/40/39 |
| Event Dead Zone (m) | 0.5 |
| Attenuation Dead Zone (m) | 2.2 |
| Distance range (km) | 0.1 to 400 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.03 |
| PON Dead Zone (m) | 30 |
| Loss threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.01 |
| Sampling Resolution (m) | 0.04 to 10 |
| Sampling Points | up to 256000 |
| Distance Uncertainty (m) | ±(0.75+0.0025×distance+sampling resolution) |
| Measurement Time | User-defined (maximum: 60 minutes) |
| Stable source output power (dBm) | ±2 |
| Reflectance Accuracy (dB) | ±2 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable Wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1577, 1590, 1610, 1625, 1650 |
| Tone Detection | 270Hz, 330Hz, 1kHz, 2kHz |
