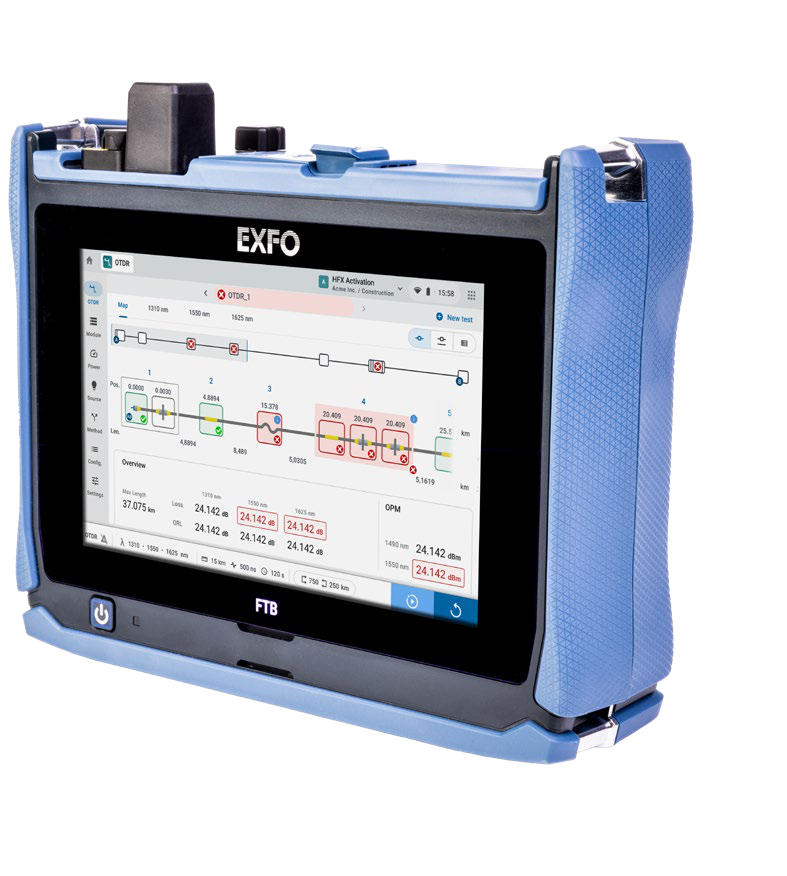

FTB Lite 730D Connected PON/Metro OTDR

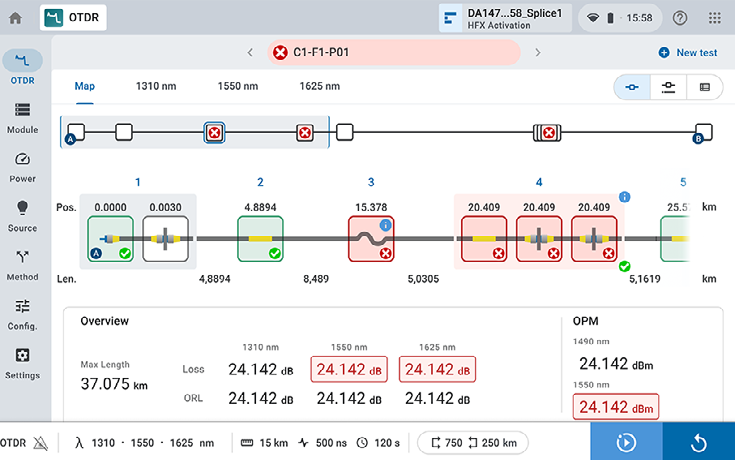

The FTB Lite 730D is a connected PON/Metro OTDR optimized for FTTx/MDU fiber deployments and troubleshooting. It features advanced mobile connectivity, iOLM capabilities, and a rugged design for efficient and secure network testing.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 1310±20/1550±20/1625±10/1650±15 |
| Live Wavelength (nm) | 1650 |
| Dynamic range (dB) | 42/40/39 |
| Event Dead Zone (m) | 0.5 |
| Attenuation Dead Zone (m) | 2.2 |
| PON Dead Zone (m) | 30 |
| Distance range (km) | 0.1 to 400 |
| Pulse Width (ns) | 3 to 20000 |
| Linearity (dB/dB) | ±0.03 |
| Loss threshold (dB) | 0.01 |
| Loss Resolution (dB) | 0.01 |
| Sampling Resolution (m) | 0.04 to 10 |
| Sampling Points | Up to 256000 |
| Distance Uncertainty (m) | ±(0.75+0.0025×%×distance+sampling resolution) |
| Measurement Time | User-defined |
| Reflectance Accuracy (dB) | ±2 |
| Typical real-time refresh (Hz) | 4 |
| Power Range (dBm) | -60 to 23 |
| Power Uncertainty (dB) | ±0.5 |
| Calibrated Wavelengths (nm) | 1310, 1490, 1550, 1625, 1650 |
| Selectable Wavelengths (nm) | 1270, 1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650 |
| Tone Detection (Hz) | 270, 330, 1k, 2k |

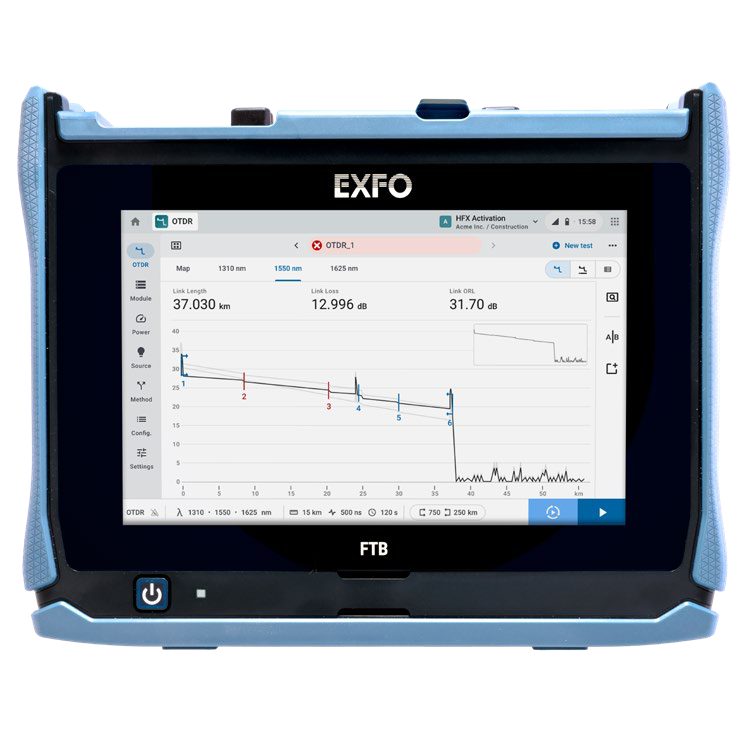

| Display | 8-inch (203mm), 1280×800, color touchscreen (viewable in sunlight) |

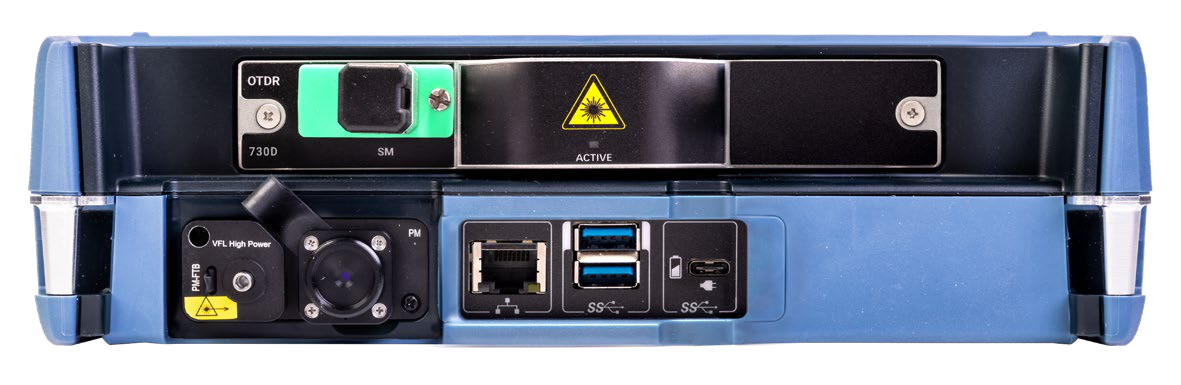

| Interfaces | USB-A ports (2), USB-C port with power delivery, RJ45 LAN 10/100/1000Mbit/s |
| RF Comms | Bluetooth, Wi-Fi, 2G/3G/4G LTE, GNSS (GPS/GALILEO/QZSS) |
| Storage | >20000 OTDR traces |
| Battery | Rechargeable LiFePO4 battery, up to 10 hours of operation |
| Power Supply | AC/DC adapter, 100 to 240V AC, 50 to 60Hz, 1.5A; DC 3.0A max, 45W max, USB-C power delivery standard supported |
| Weight | 2.4kg (5.3lb) |
| Size (H×W×D) | 198mm×249mm×71mm (7.8in×9.8in×2.8in) |
| Temperature | Operating: -10°C to 50°C (14°F to 122°F); Storage: -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity | 0% to 95% non-condensing |
| Warranty | 1 year |
| Built-in power meter calibrated wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Built-in power meter selectable wavelengths (nm) | 850, 1300, 1310, 1342, 1358, 1490, 1550, 1577, 1625, 1650 |
| Built-in power meter power range (dBm) | 27 to -50 |
| Built-in power meter display resolution (dB) | 0.01 |
| Built-in power meter uncertainty (dB) | ±0.5 |
| Built-in power meter tone detection (Hz) | 270/330/1000/2000 |
| VFL operation mode | Flashing (slow/fast) and continuous |
| VFL flashing frequency (Hz) | 1 or 4 |
| VFL wavelength (nm) | 650 |
| VFL emitter type | Laser |
| VFL power output (mW) | 1 |
| VFL distance range (m) | 7 |
| VFL laser safety class | 2 |
| High-power VFL operation mode | Flashing (slow/fast) and continuous |
| High-power VFL flashing frequency (Hz) | 1 or 4 |
| High-power VFL wavelength (nm) | 660 |
| High-power VFL emitter type | Laser |
| High-power VFL power output (mW) | 5 |
| High-power VFL distance range (m) | 12 |
| High-power VFL laser safety class | 3R |
| Source output power (dBm) | -3 |
| Source Modulation | CW, 270Hz, 330Hz, 1kHz, 2kHz |
