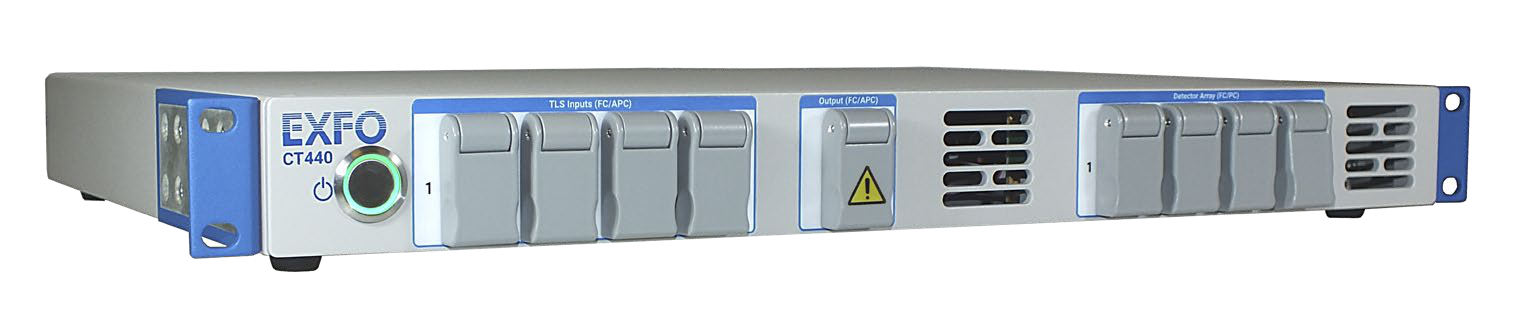

CT440/CT440-PDL

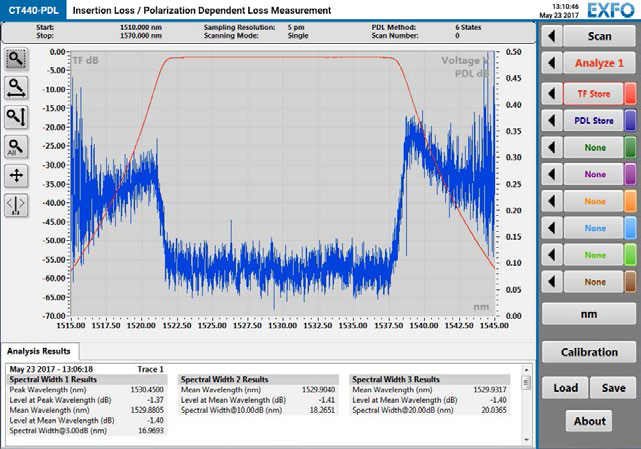

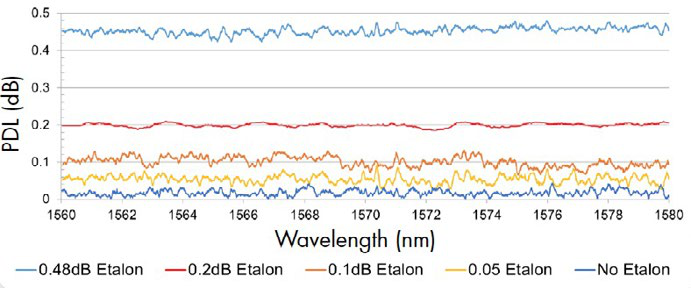

Compact optical component tester designed for fast and accurate characterization of passive optical components such as MUX/DEMUX, filters, splitters, and modules like ROADM and WSS. It covers the spectral range from 1240 to 1680 nm and offers simultaneous measurement of insertion loss and polarization dependent loss with the PDL option.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength Range | 1240-1680nm |
| Wavelength Accuracy | ±5pm |
| Wavelength Resolution | 1-250pm |
| Dynamic Range | 65dB |
| Number of Input Ports | 1 to 4 (SMF) |
| Number of Output Ports | 1 (SMF) |
| Number of Detectors | 1, 2, or 4 |
| Connector Type | FC/APC narrow key |
| Power Range | -60 to 7dBm |
| Sampling Resolution | 0.02dB |
| Operating Temperature | 15°C to 30°C |
| Storage Temperature | -10°C to 60°C |
| Dimensions | 440mm x 50mm x 375mm |
| Weight | 3.5kg to 3.9kg |
| Relative Humidity | ≤80% non-condensing |
| Power Supply | AC 100V to 240V, 50Hz to 60Hz |
