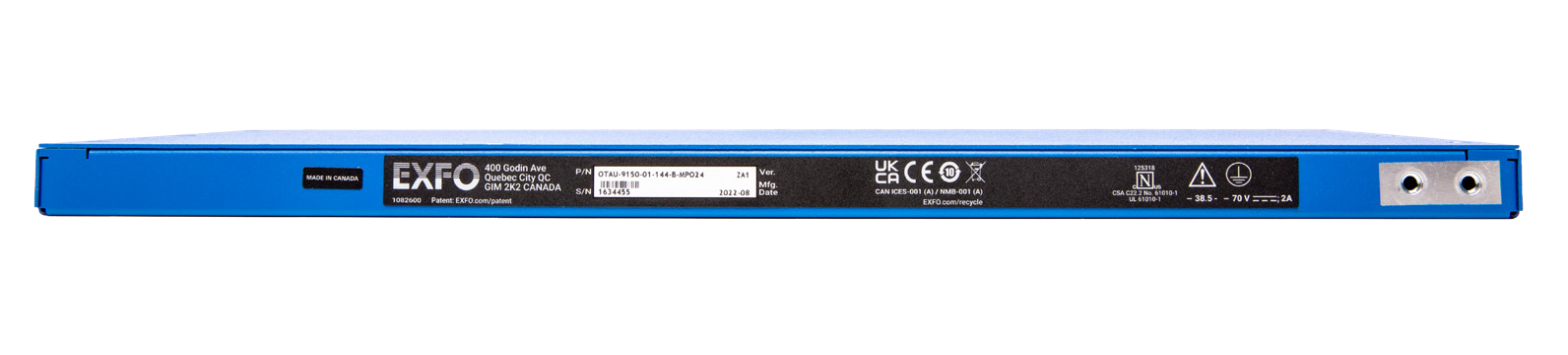

OTAU-9150 Remote Optical Switch

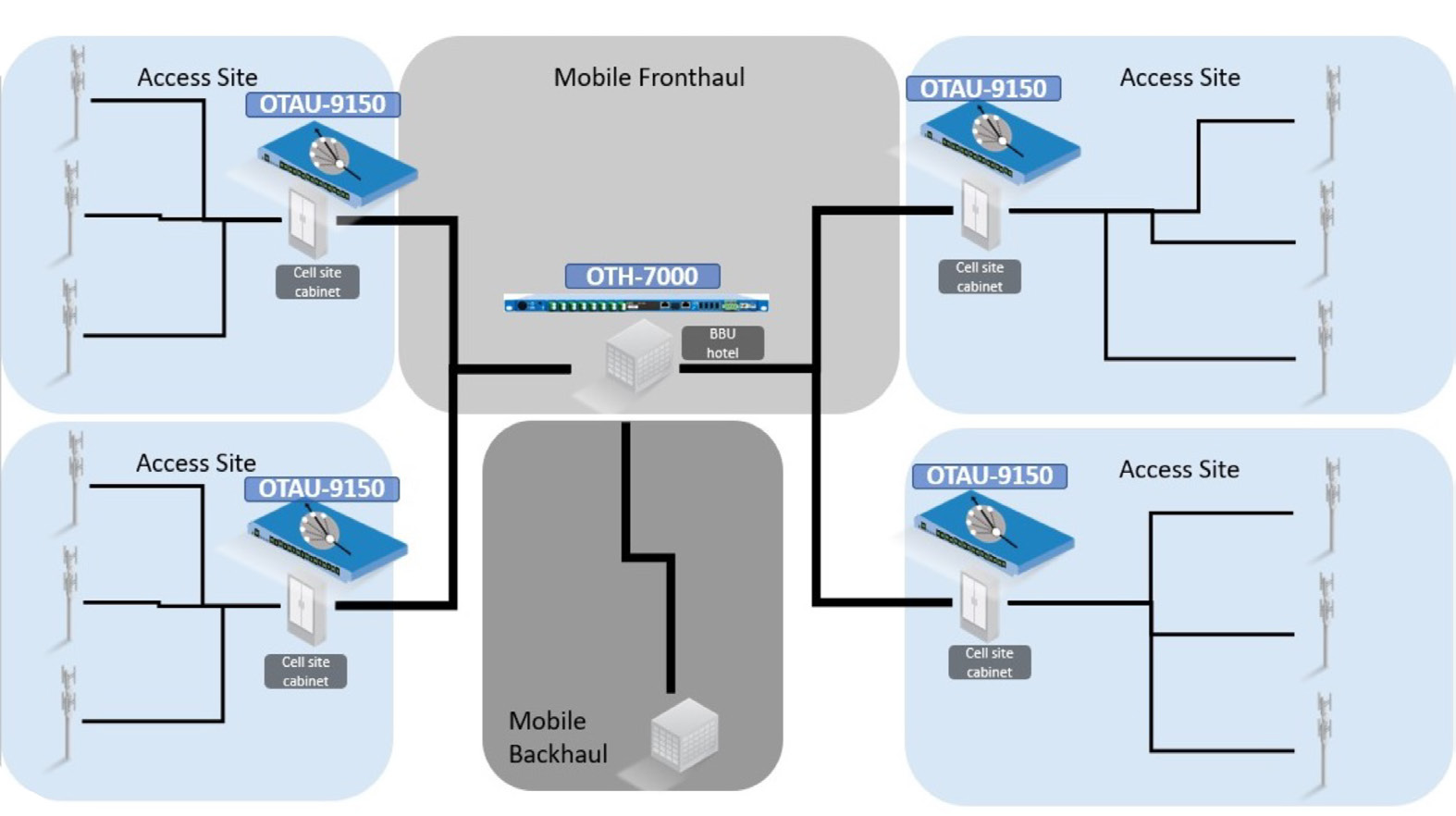

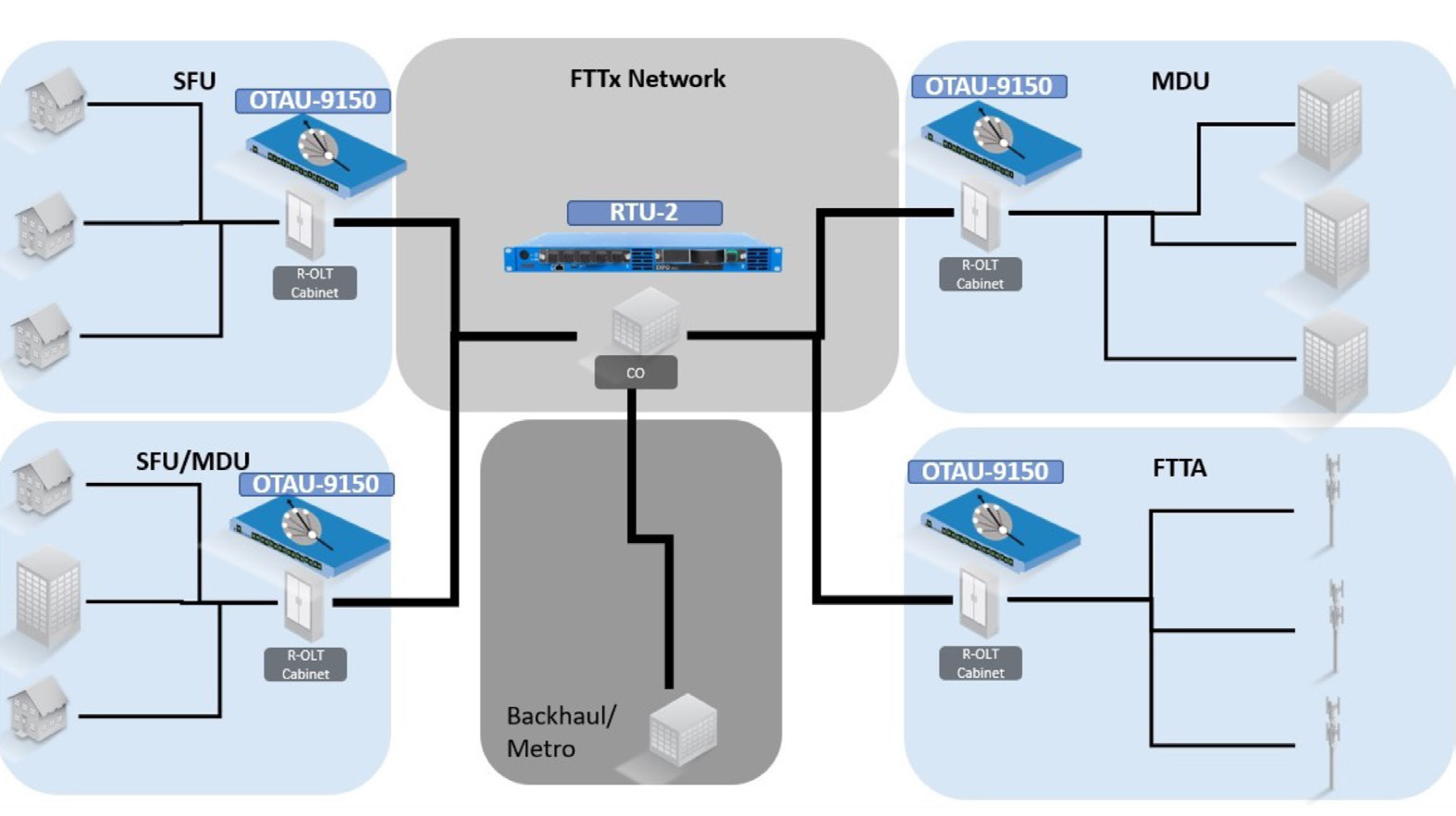

Compact and high port-density local or remote optical switch for OTDR-based remote fiber test and monitoring applications.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Insertion Loss (dB) | 1 |
| Fiber Type | 9/125μm singlemode fiber |
| Back Reflection (dB) | -45 |
| Crosstalk (dB) | -50 |
| Switching Time (ms) | 300 |
| Durability (cycles) | 2.5 billion |
| Input Connector Type | LC-APC |
| Output Connector Type 4 and 16 port model | LC-APC |
| Output Connector Type 32 and 64 port model | MPO-APC (16 fibers populated onto a standard MPO 24-fiber ferrule) |
| Output Connector Type 96 and 144 port model | MPO-APC (24 fibers populated onto a standard MPO 24-fiber ferrule) |
| Chassis Size | ½ U rackmount chassis (19") |
| Size (HxWxD) | 22mm x 440mm x 220mm |
| Weight | 1.4kg |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -40°C to 70°C |

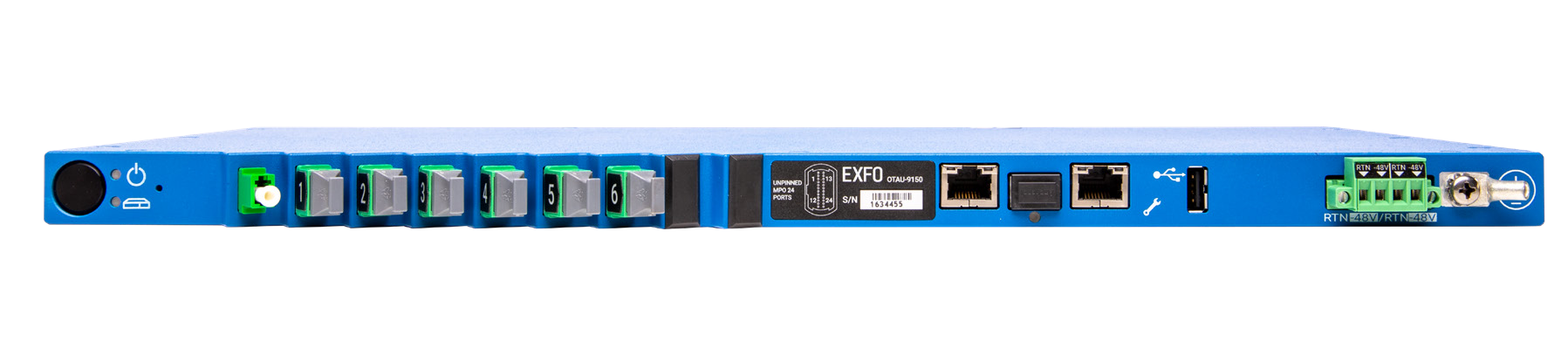

| Optical Connector Location | Front panel |
| Wired Network Interfaces | 2x10/100/1000 Base-T Ethernet IPv4 and V6 (network and management interfaces) |
| Latching Type | Non-latching |
| Dual Feed Power Supply | -48VDC 2A (ordering option: external AC-DC adapter for AC operation) |
| Operating Power Consumption | ~1W |
