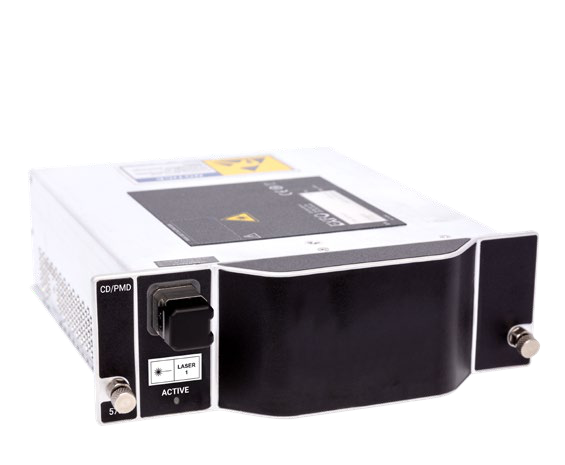

FTBx-570 Single-Ended CD/PMD Analyzer
The FTBx-570 is a single-ended chromatic dispersion (CD) and polarization mode dispersion (PMD) analyzer designed for fast and accurate fiber characterization. It supports O, S, C, and L bands and is ideal for high-speed network deployments.
Save to Favorites
Overview
Specifications
| Parameter | Value |
|---|---|
| Measured Wavelength Range | SCL-band: 1475-1626nm, O-band: 1310±1nm |
| Dynamic Range (dB) | SCL-band: 30, SCL-band with reflector: 37 |
| Test Time (s) | 25 |
| Link Length (km) | 1-240 |
| Distance Uncertainty (km) | ±0.01+1%×distance |
| CD Uncertainty (ps/nm) | ±2.5 |
| Zero Dispersion Wavelength | SCL-band: ±1.5nm |
| PMD Display Range (ps) | Up to 35 |
| PMD Uncertainty (ps) | ±0.2+5%×PMD |
| Dimensions | 51mm×159mm×185mm |
| Weight | 1.4kg |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 50°C |
| Relative Humidity | 0%-95% non-condensing |
| Laser Safety | Class 1 Laser, compliant with IEC-60825-1:2014 |
