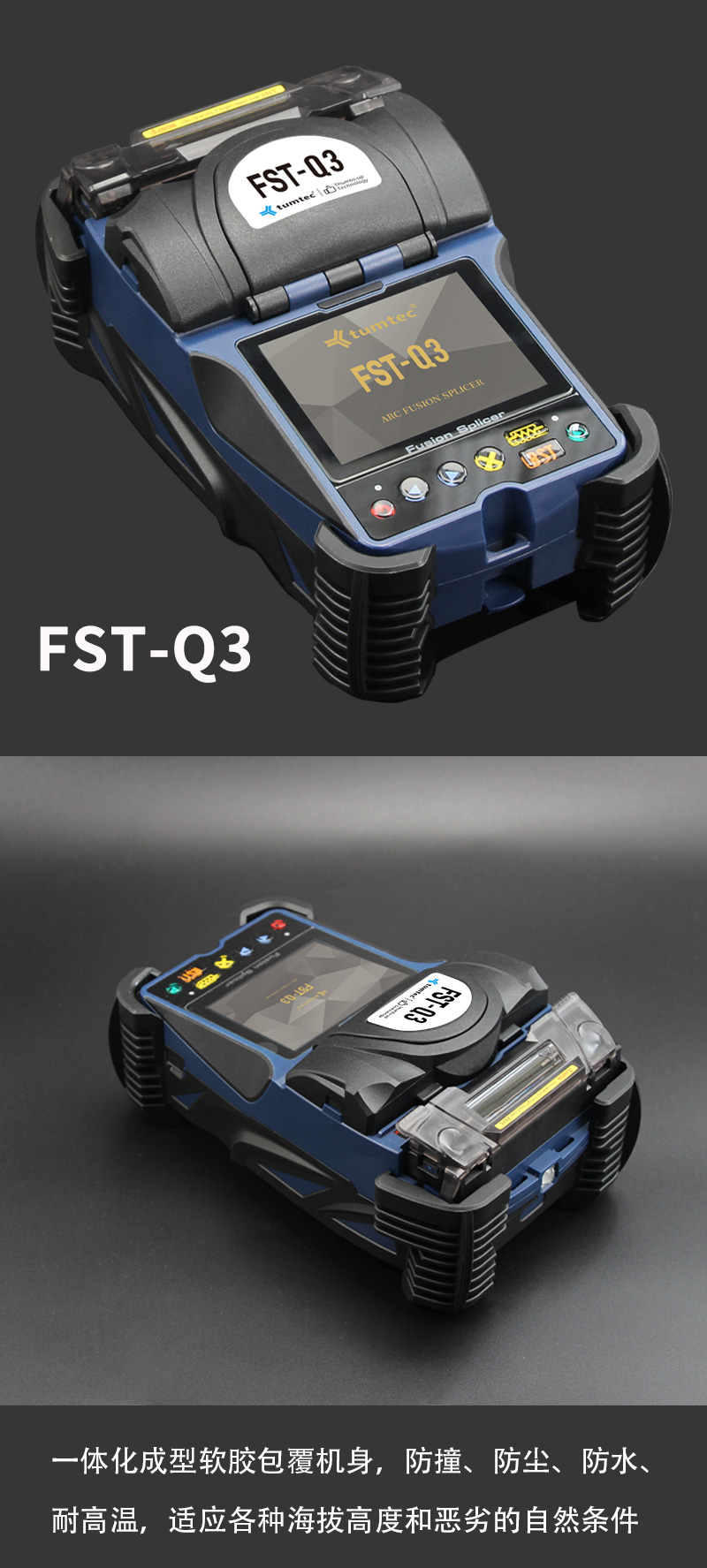

FST-Q3

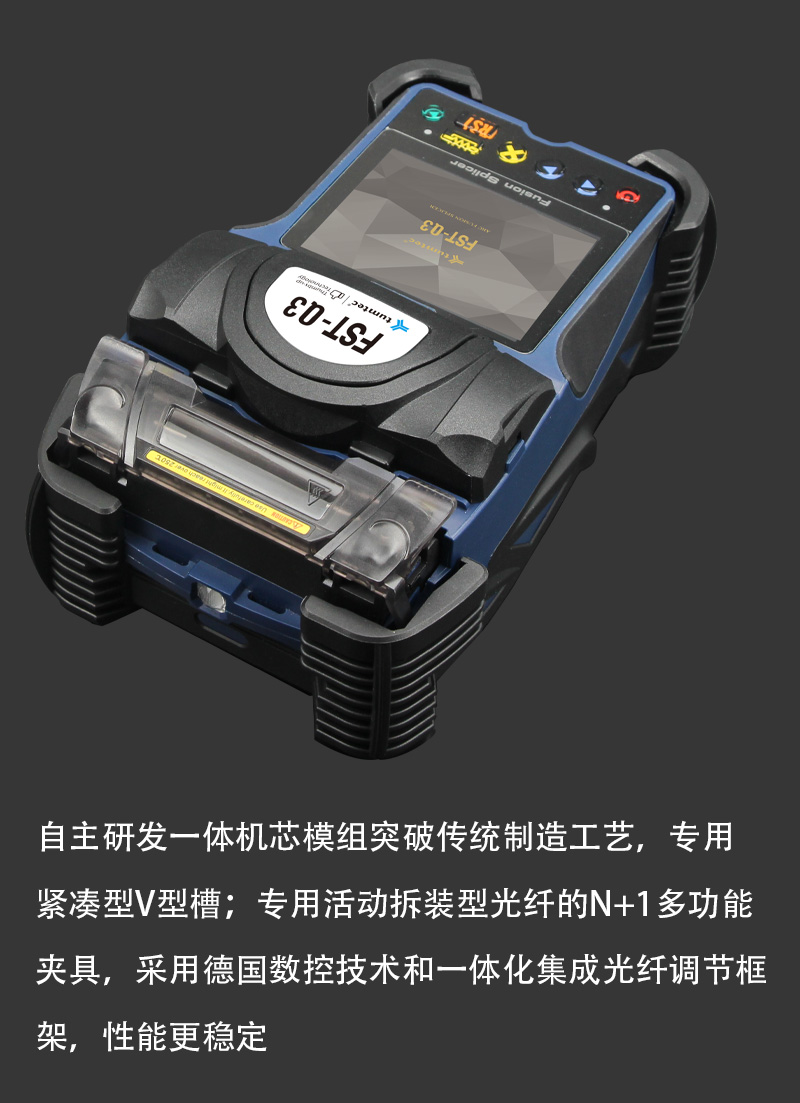

The FST-Q3 is a lightweight, portable fusion splicer designed for efficient and reliable fiber optic splicing. It features a compact design, advanced technology, and robust construction, making it suitable for various challenging environments.
Save to Favorites
Overview

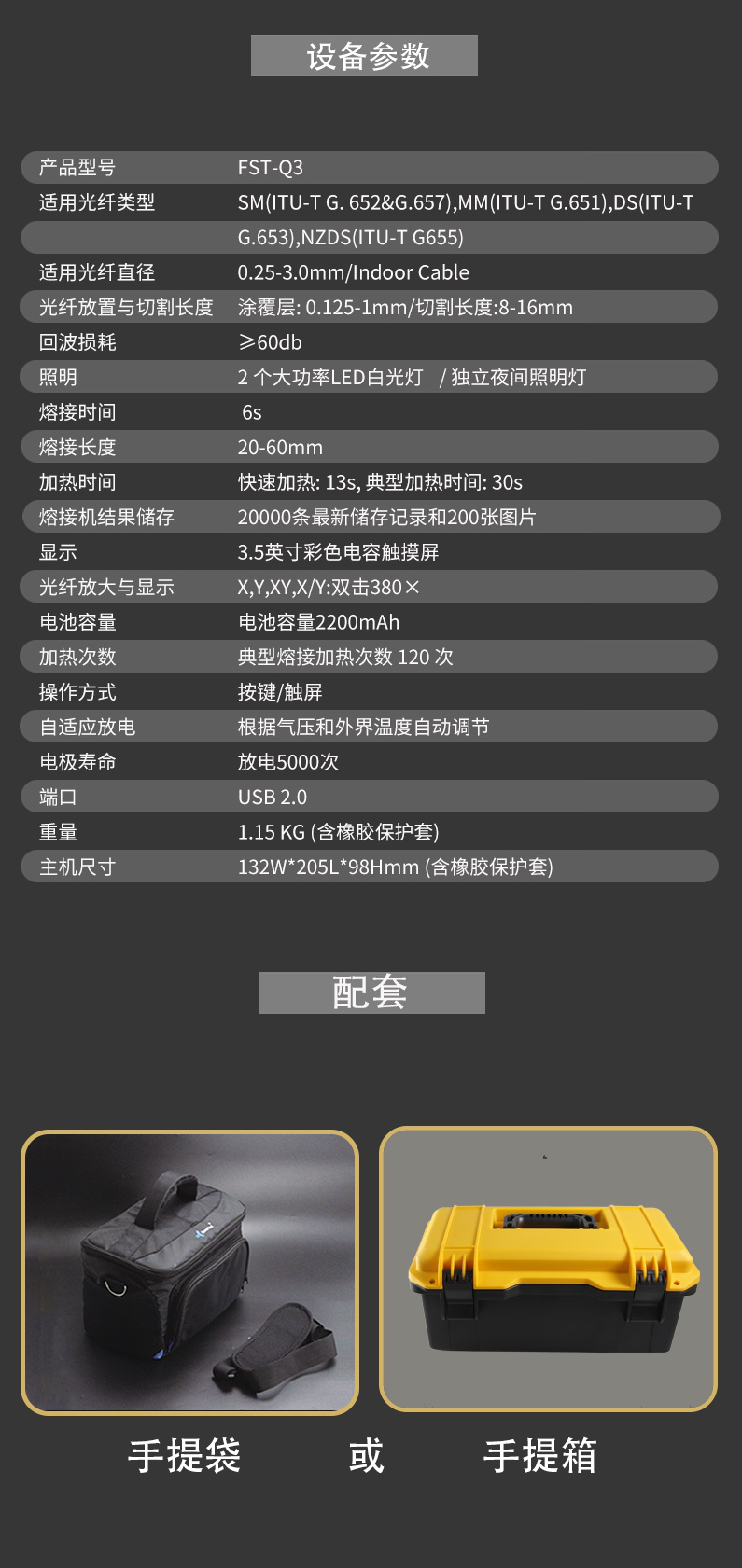

Specifications
| Parameter | Value |
|---|---|
| Applicable Fiber Type | SM(ITU-T G.652&G.657), MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655) |
| Fiber Placement and Cutting Length | 涂覆层: 0.125-1mm/切割长度:8-16mm |
| Return Loss | ≥60db |

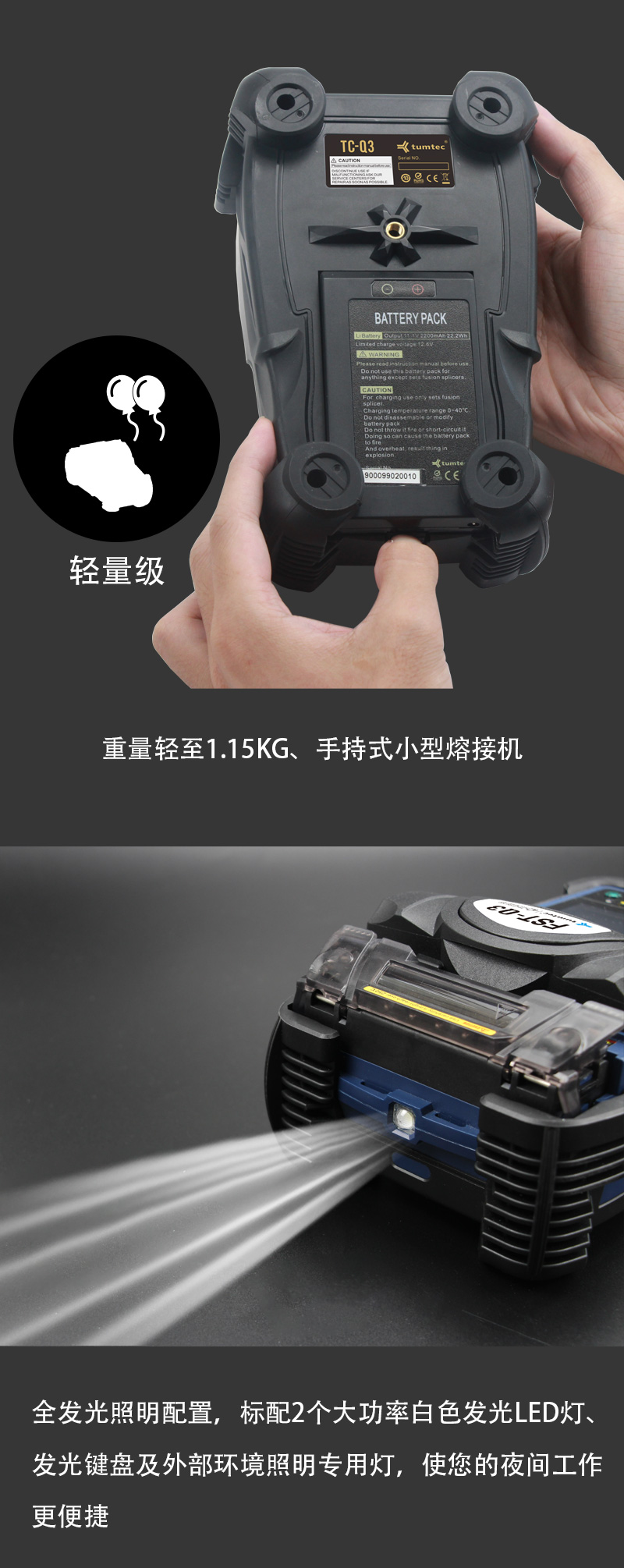

| Illumination | 2 complete plans大功率LED白光灯/独立夜间照明灯 |
| Splicing Time | 6s |
| Splicing Length | 20-60mm |
| Splicing Results Storage | 20000条最新储存记录 and 200张Image |
| Display | 3.5英寸彩色电容触摸屏 |
| Battery Capacity | 2200mAh |
| Operation Mode | 按键/触屏 |
| Adaptive Discharge | 根据气压 and 外界温度自动调节 |
| Port | USB2.0 |
| Weight | 1.15KG (含橡胶保护套) |
