X-BOT-120

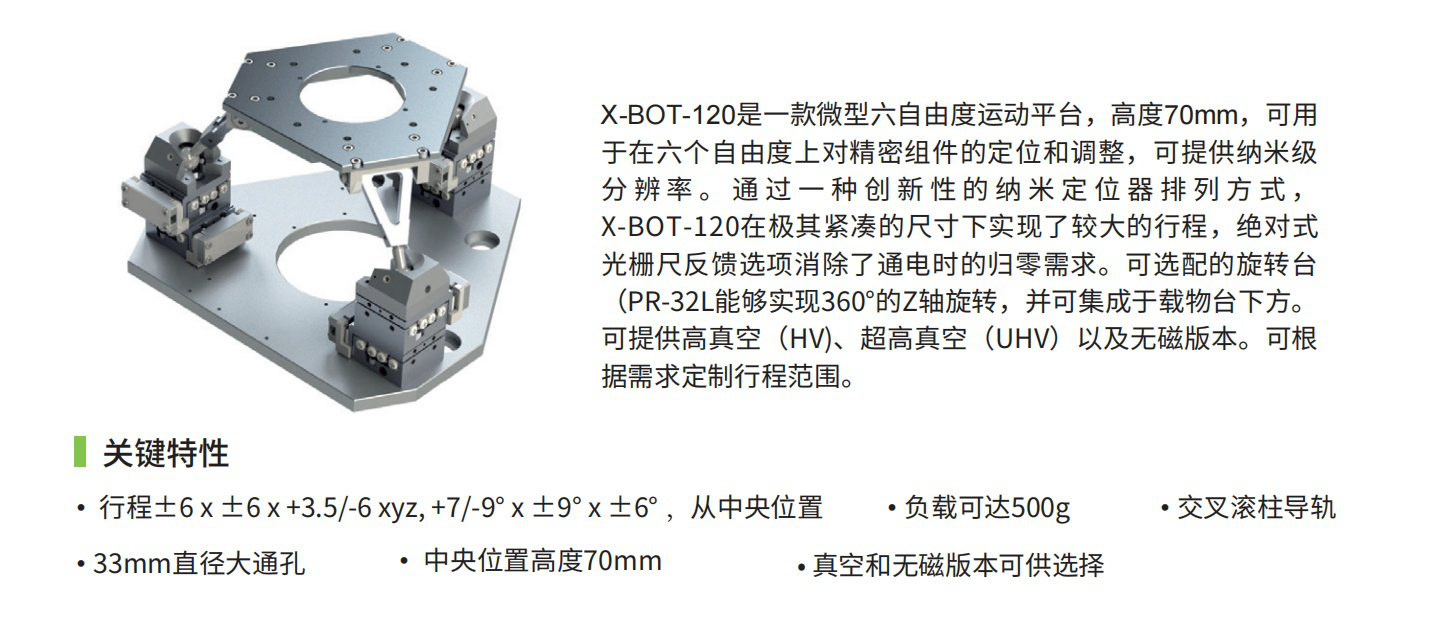

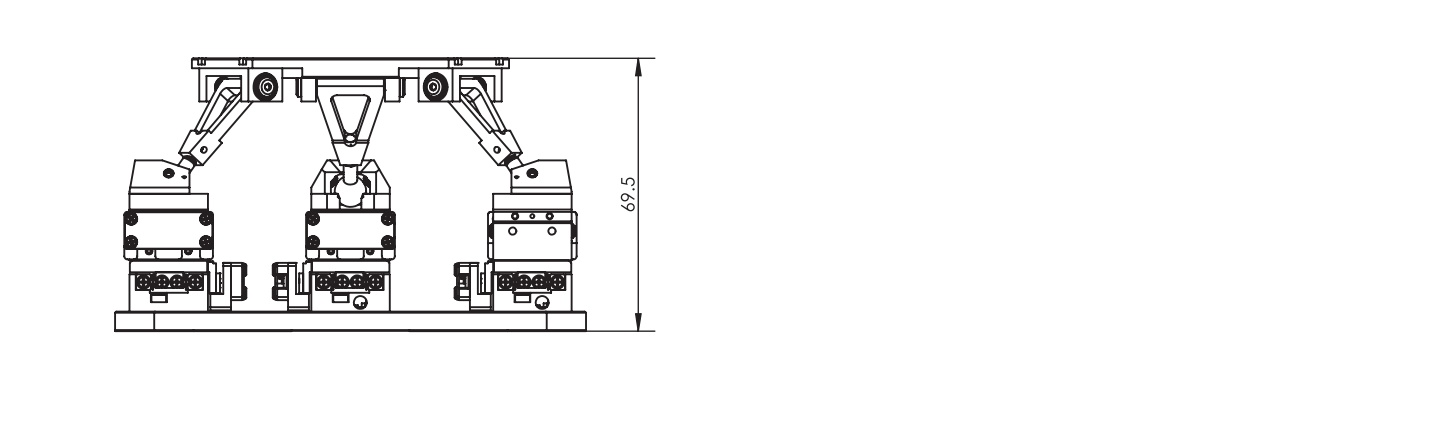

X-BOT-120 is a compact six-degree-of-freedom motion platform with a height of 70mm. It is designed for precise positioning and adjustment of components, offering nanometer-level resolution. Utilizing an innovative nanopositioner arrangement, it achieves a relatively large travel range despite its compact size. The platform eliminates the need for traditional zero-point requirements and can be paired with a rotary table (PR-32L) to achieve 360° rotation around the Z-axis, with an integrated load-bearing function underneath. It is available in high vacuum (HV), ultra-high vacuum (UHV), and non-magnetic versions, with customizable travel ranges.
Save to Favorites
Overview
Specifications

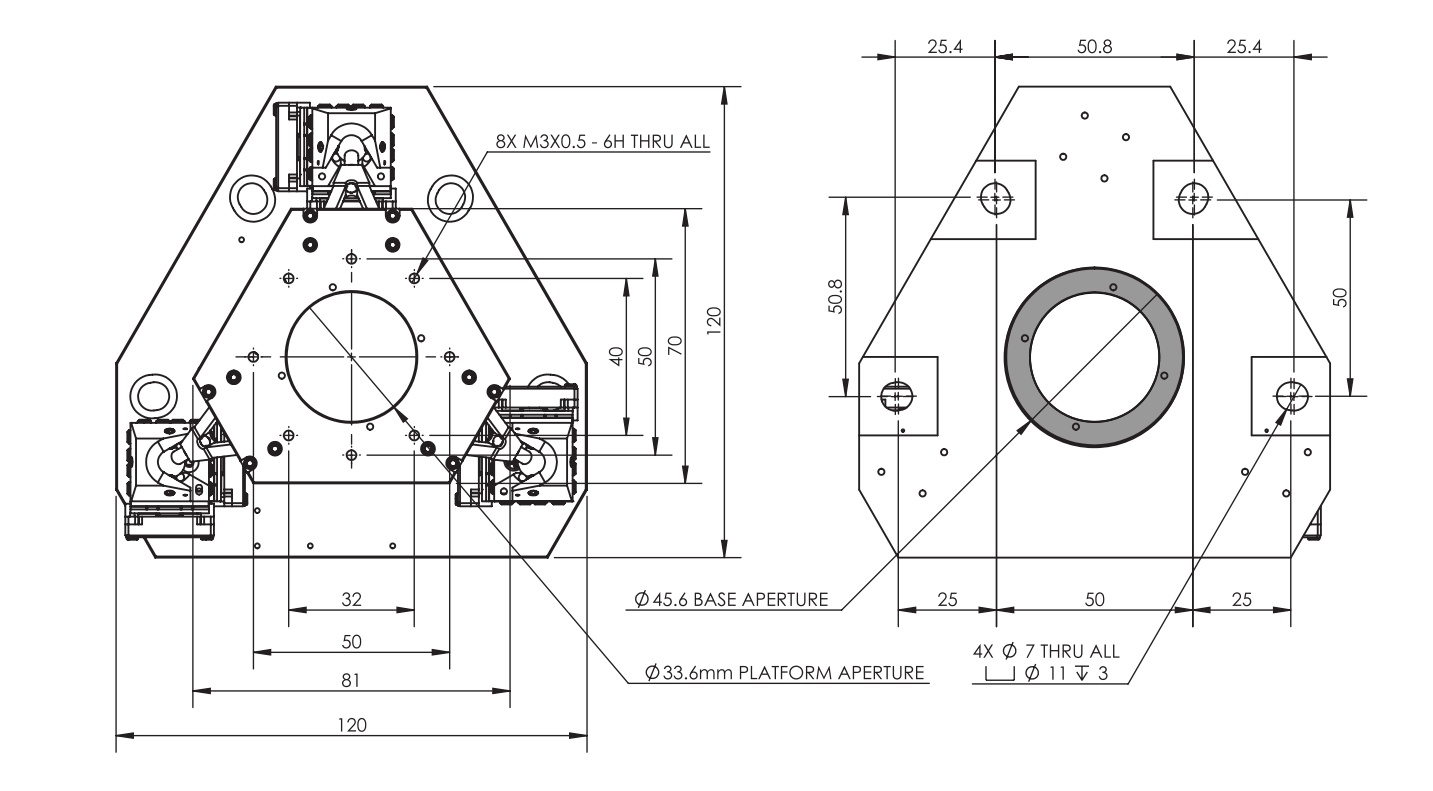

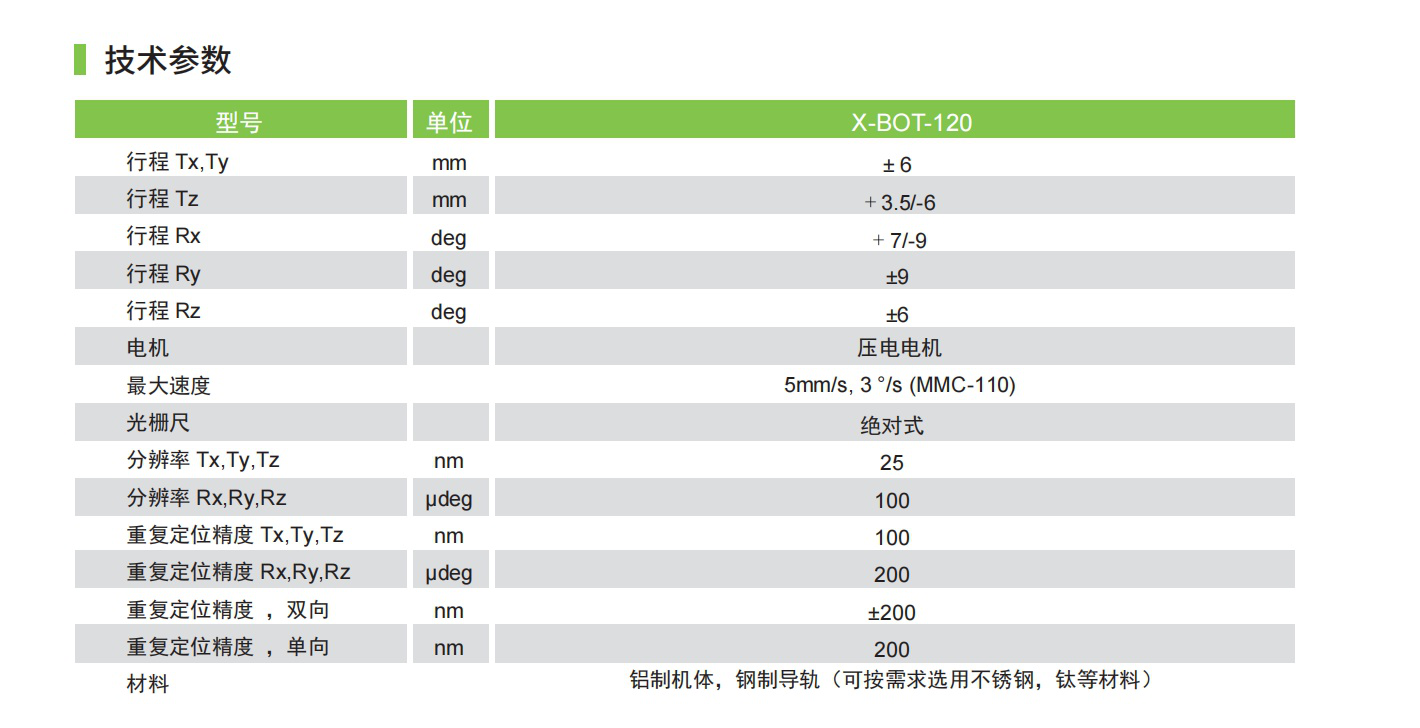

| Parameter | Value |
|---|---|
| Travel Range Tx,Ty(mm) | ±6 |
| Travel Range Tz(mm) | +3.5/-6 |
| Travel Range Rx(deg) | +7/-9 |
| Travel Range Ry(deg) | ±9 |
| Travel Range Rz(deg) | ±6 |
| Motor | 压电电机 |
| Maximum Speed | 5mm/s,3°/s(MMC-110) |
| Encoder | 绝对式 |
| Resolution Tx,Ty,Tz(nm) | 25 |
| Resolution Rx,Ry,Rz(μdeg) | 100 |
| Repeatability Tx,Ty,Tz(nm) | 100 |
| Repeatability Rx,Ry,Rz(μdeg) | 200 |
| Bidirectional Repeatability(nm) | 200 |
| Unidirectional Repeatability(nm) | ±200 |
| Material | 铝制机体,钢制导轨(可按需求选用不锈钢,钛等材料) |

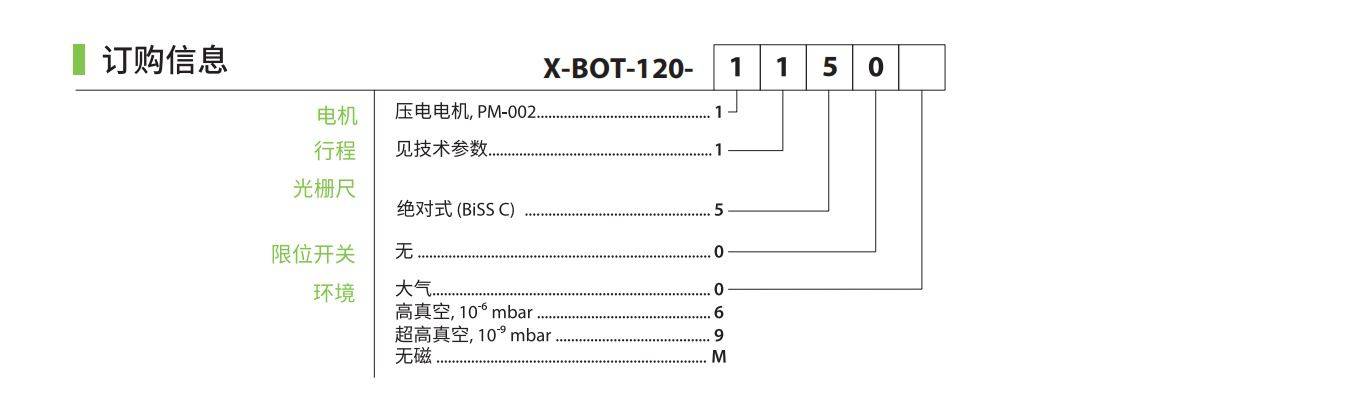

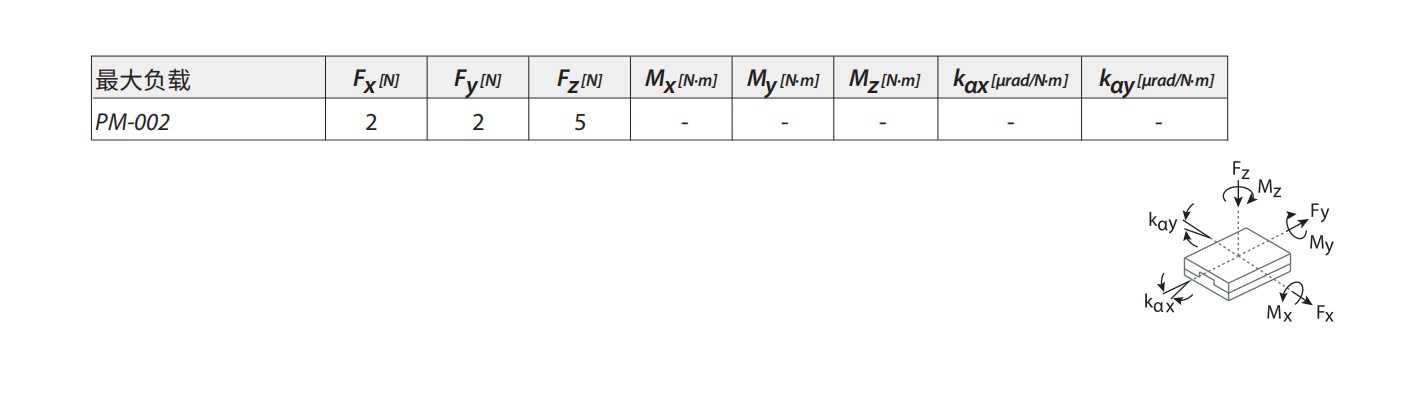

| Maximum Load Fx(N) | 2 |
| Maximum Load Fy(N) | 2 |
| Maximum Load Fz(N) | 5 |
