NS-Z250-01
The NS-Z250-01 is a precision motion control device designed for high-accuracy applications, featuring a capacitive sensor and robust aluminum alloy construction.
Save to Favorites
Overview

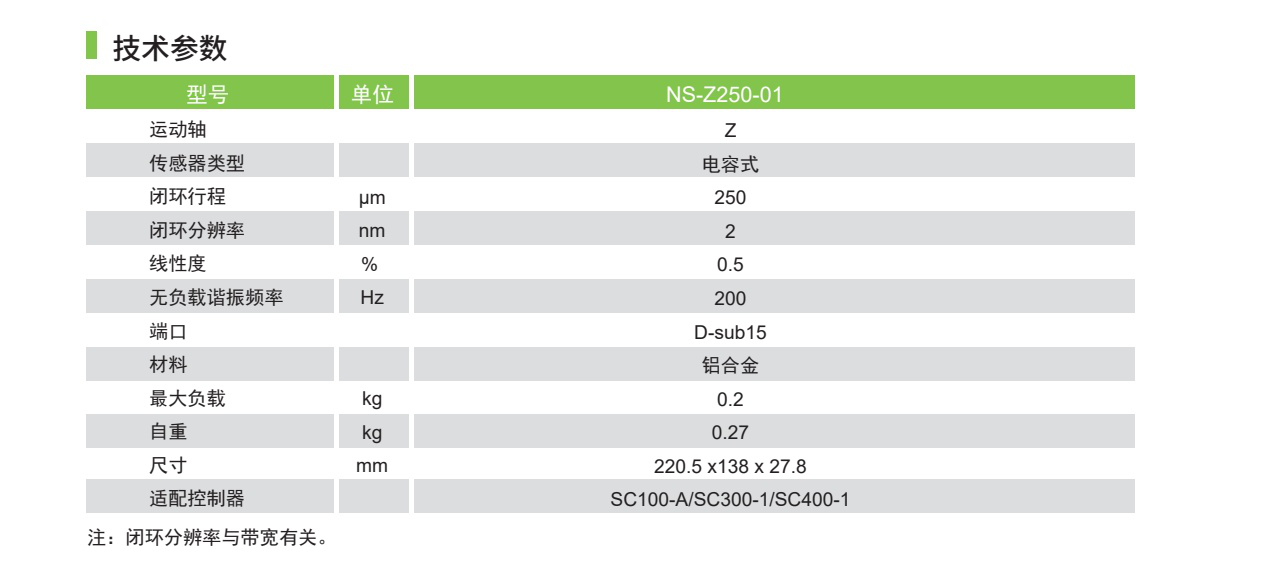

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 250 |
| Closed-loop Resolution (nm) | 2 |
| Linearity (%) | 0.5 |
| No-load Resonant Frequency (Hz) | 200 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 0.2 |
| Weight (kg) | 0.27 |

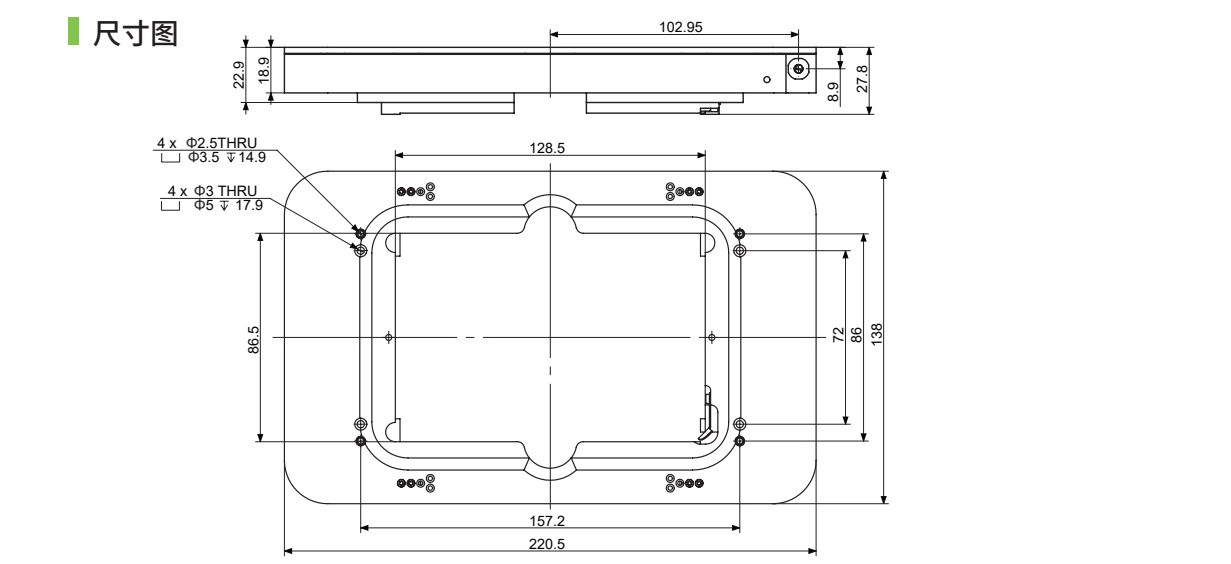

| Dimensions (mm) | 220.5×138×27.8 |
| Compatible Controllers | SC100-A/SC300-1/SC400-1 |
