NS-Z150-01
The NS-Z150-01 is a high-precision capacitive sensor designed for Z-axis motion control. It offers exceptional resolution and accuracy, making it ideal for applications requiring precise positioning and vibration control.
Save to Favorites
Overview

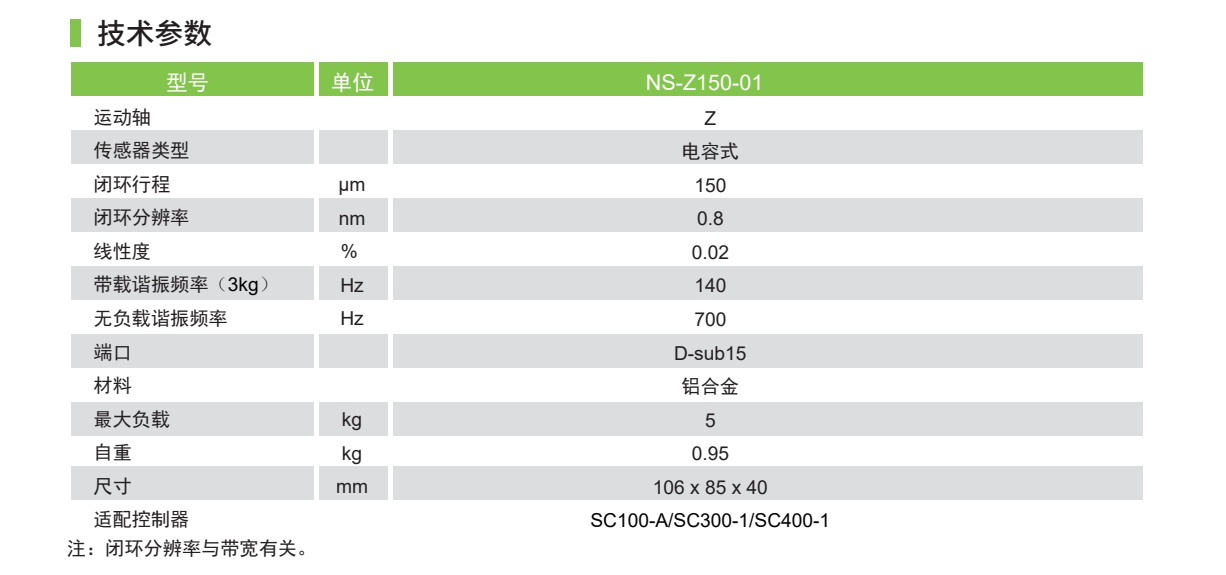

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | Z |
| Closed-loop Travel (μm) | 150μm |
| Closed-loop Resolution (nm) | 0.8nm |
| Linearity (%) | 0.02% |
| Load Frequency (3kg) (Hz) | 140Hz |
| No-load Resonance Frequency (Hz) | 700Hz |
| Port | D-sub15 |
| Maximum Load (kg) | 5kg |

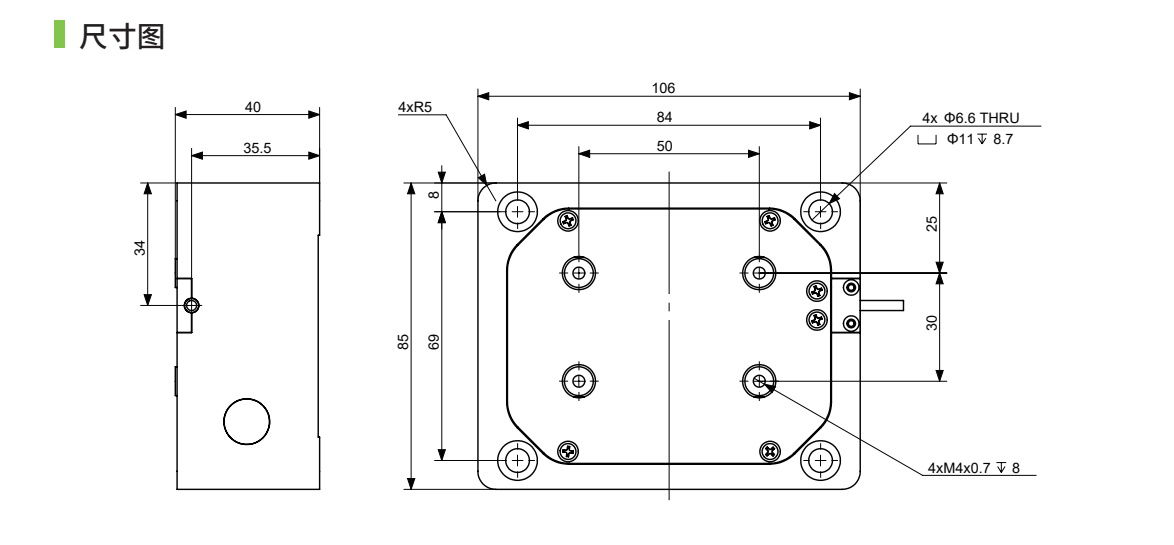

| Dimensions (mm) | 106x85x40 |
Applications
Key Features
Datasheet
