NS-XY5Z5-01
The NS-XY5Z5-01 is a precision motion control device designed for high-accuracy applications. It features a compact design and advanced capacitive sensor technology for precise Z-axis control.
Save to Favorites
Overview

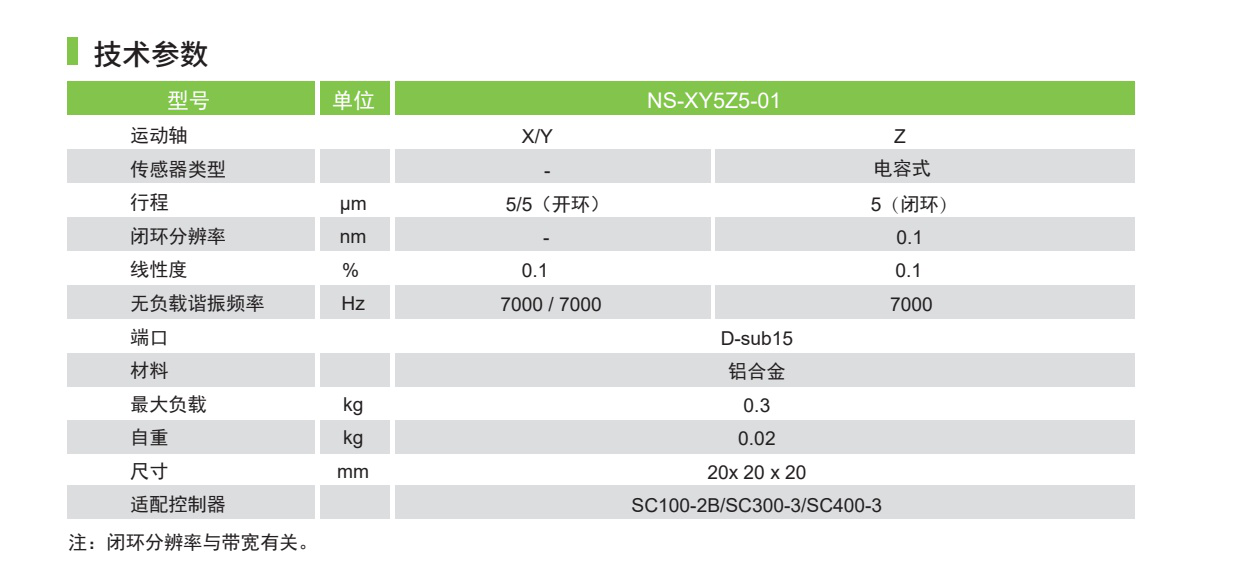

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y, Z |
| Travel Range (μm) Z | 5 (closed loop)μm |
| Linearity (%) | 0.1% |
| No-load Resonant Frequency (Hz) X/Y | 7000/7000 |
| No-load Resonant Frequency (Hz) Z | 7000Hz |
| Port | D-sub15 |
| Maximum Load (kg) | 0.3kg |
| Self Weight (kg) | 0.02kg |

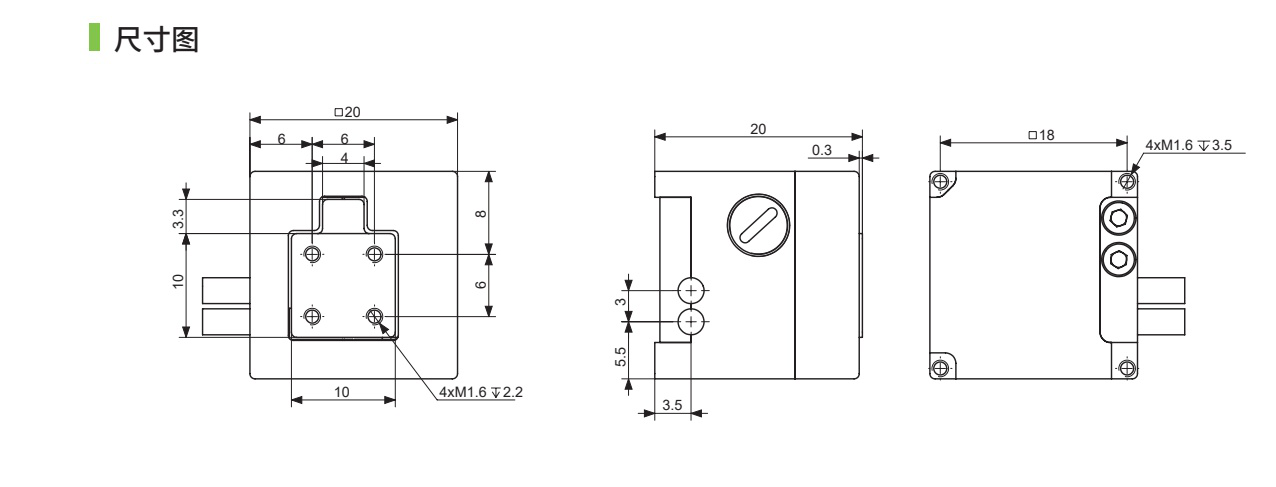

| Dimensions (mm) | 20x20x20 |
| Compatible Controller | SC100-2B/SC300-3/SC400-3 |
