NS-XY400Z200-01
The NS-XY400Z200-01 is a high-precision XYZ motion platform designed for applications requiring accurate positioning and stability. It features capacitive sensors and a robust aluminum alloy construction.
Save to Favorites
Overview

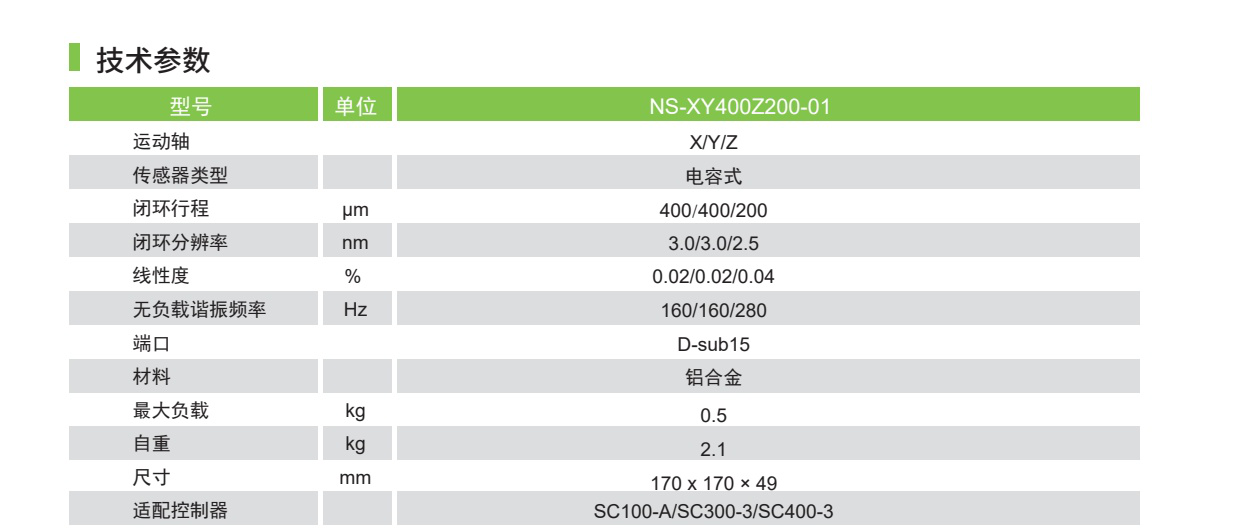

Specifications
| Parameter | Value |
|---|---|
| Motion Axes | X/Y/Z |
| Closed-loop Travel (μm) | 400/400/200 |
| Closed-loop Resolution (nm) | 3.0/3.0/2.5 |
| Linearity (%) | 0.02/0.02/0.04 |
| No-load Resonant Frequency (Hz) | 160/160/280 |
| Port | D-sub15 |
| Maximum Load (kg) | 0.5kg |
| Self Weight (kg) | 2.1kg |

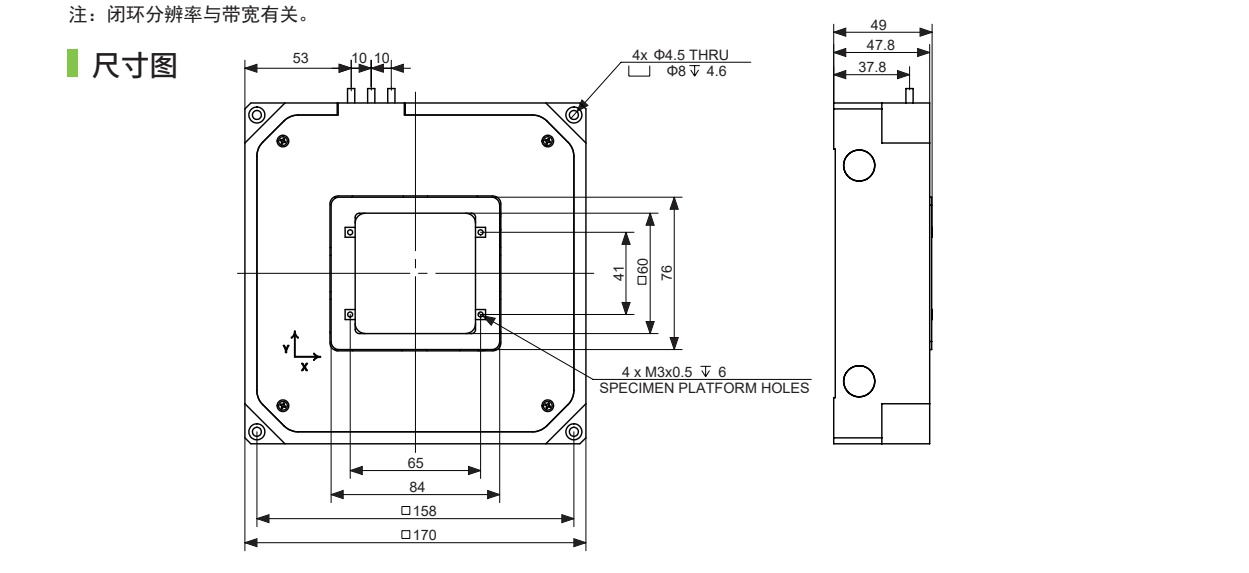

| Dimensions (mm) | 170×170×49 |
| Compatible Controllers | SC100-A/SC300-3/SC400-3 |
