NS-XY200Z100-01
The NS-XY200Z100-01 is a high-precision capacitive sensor-based motion platform designed for XYZ axis movement. It offers excellent resolution, linearity, and vibration frequency performance, making it ideal for applications requiring precise positioning and stability.
Save to Favorites
Overview

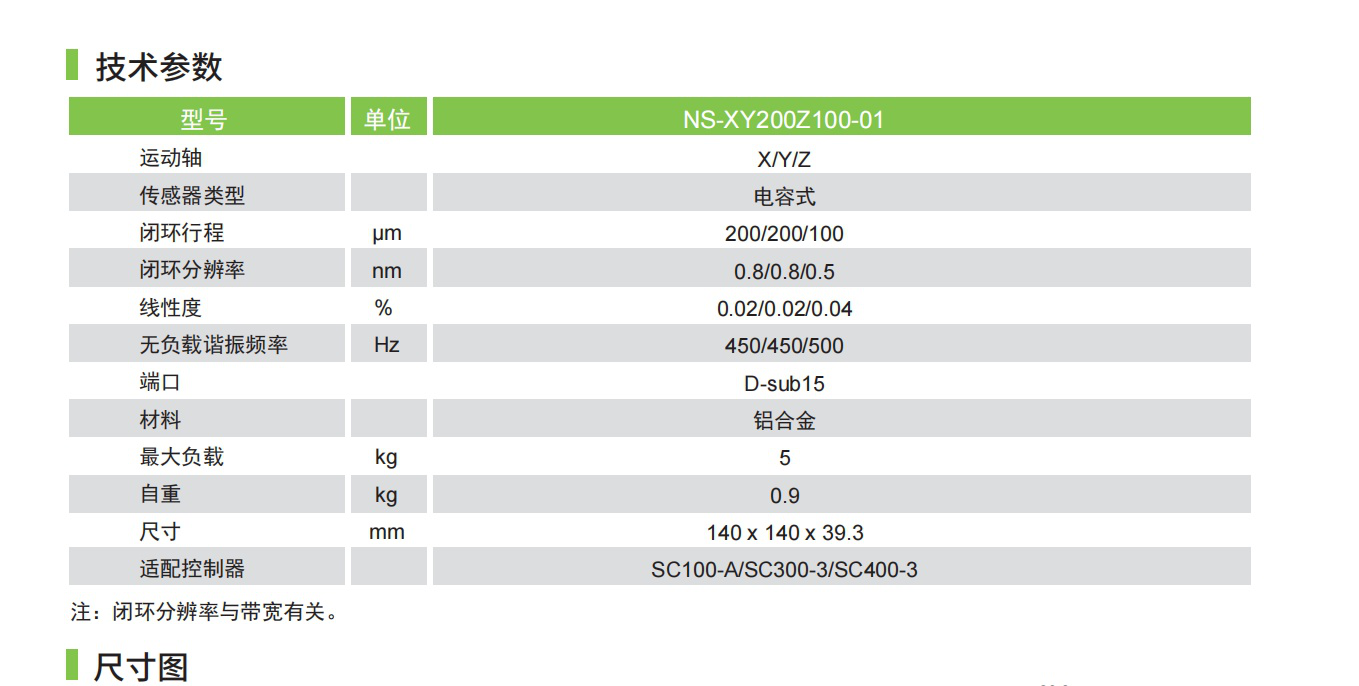

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y/Z |
| Sensor Type | Capacitive |
| Closed-loop Travel (μm) | 200/200/100 |
| Closed-loop Resolution (nm) | 0.8/0.8/0.5 |
| Linearity (%) | 0.02/0.02/0.04 |
| No-load Resonant Frequency (Hz) | 450/450/500 |
| Port | D-sub15 |
| Material | Aluminum alloy |
| Maximum Load (kg) | 5 |
| Weight (kg) | 0.9 |

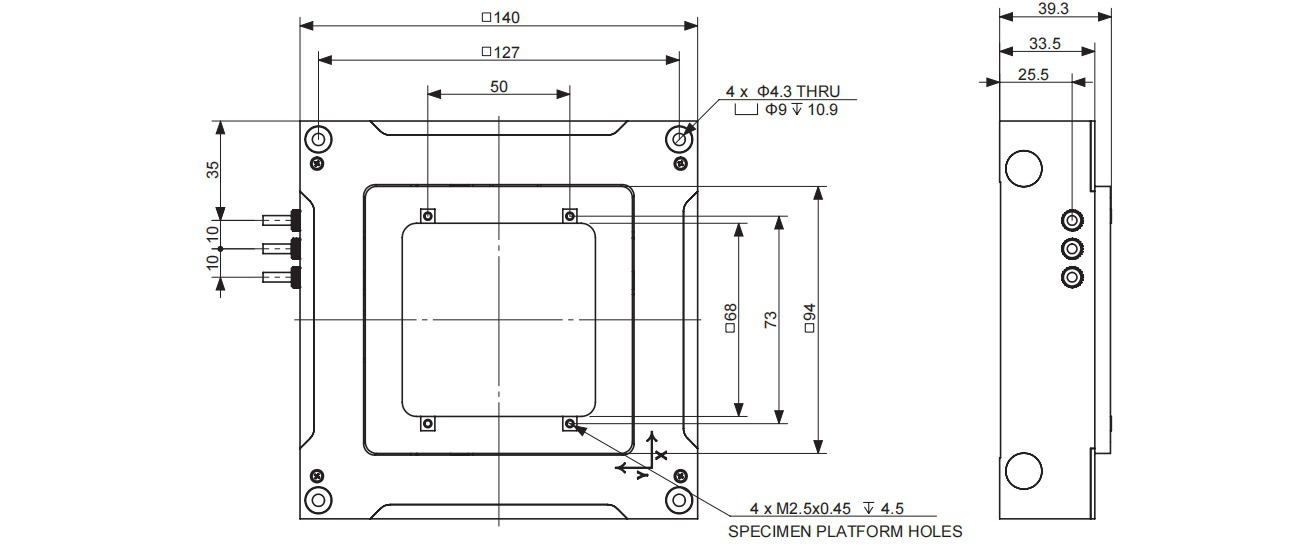

| Dimensions (mm) | 140×140×39.3 |
| Compatible Controller | SC100-A/SC300-3/SC400-3 |
