NNS-XY200-01
The NNS-XY200-01 is a high-precision XY-axis motion platform designed for applications requiring accurate positioning and stability. It features a capacitive sensor type and is constructed with aluminum alloy for lightweight and durable performance.
Save to Favorites
Overview

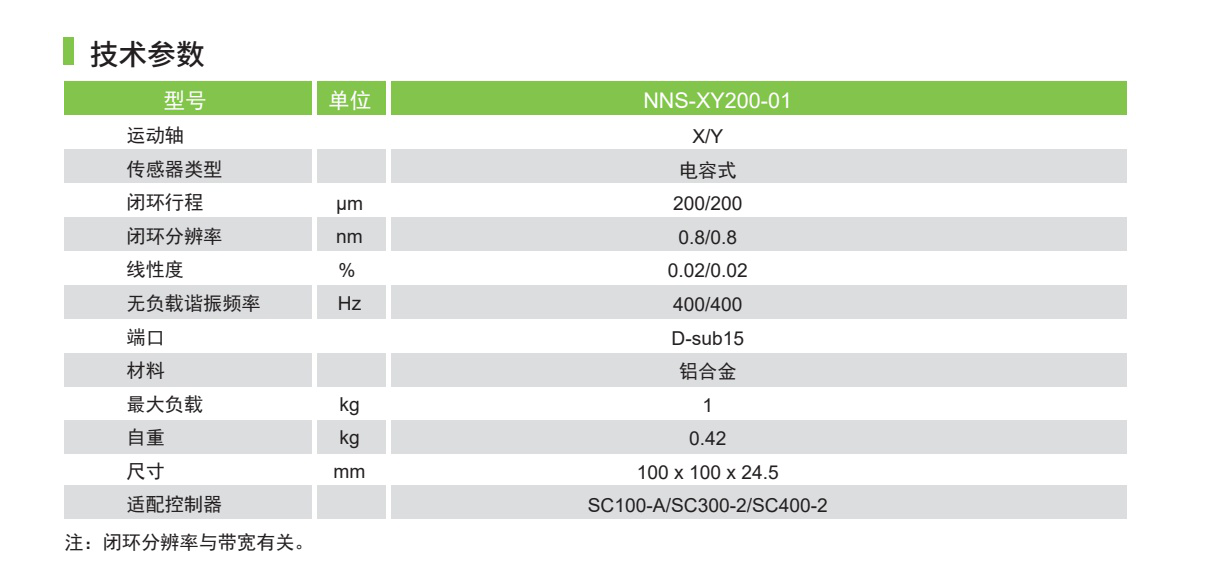

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X/Y |
| Closed-loop Travel (μm) | 200/200 |
| Closed-loop Resolution (nm) | 0.8/0.8 |
| Linearity (%) | 0.02/0.02 |
| No-load Resonant Frequency (Hz) | 400/400 |
| Port | D-sub15 |
| Maximum Load (kg) | 1kg |
| Weight (kg) | 0.42kg |

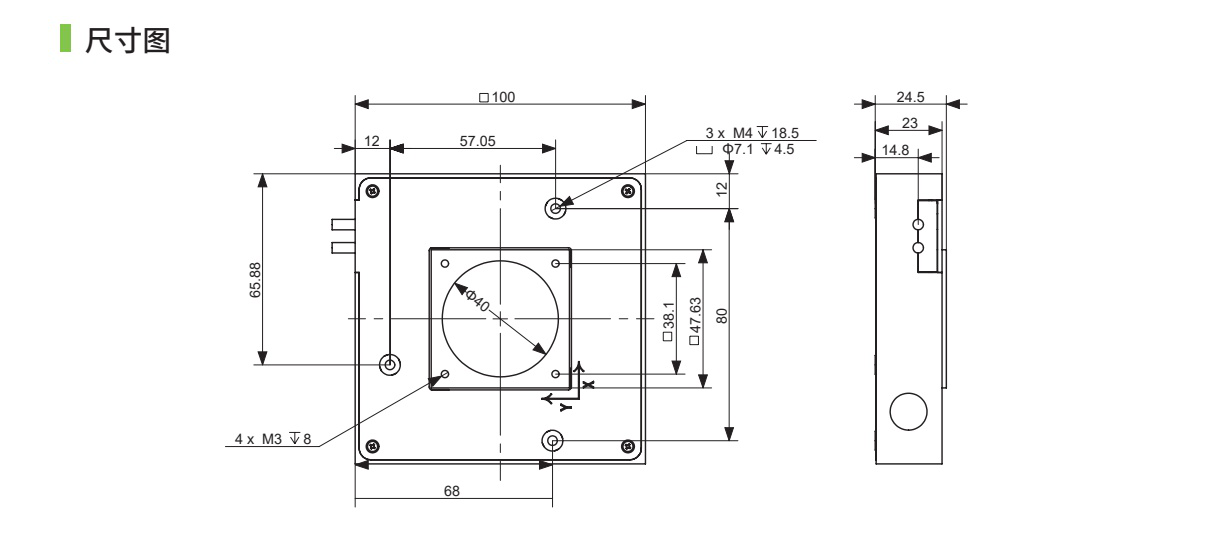

| Dimensions (mm) | 100x100x24.5 |
| Compatible Controller | SC100-A/SC300-2/SC400-2 |
