NS-X700-01
The NS-X700-01 is a high-precision piezoelectric actuator designed for applications requiring accurate motion control. It features a compact design and advanced capacitive sensor technology.
Save to Favorites
Overview

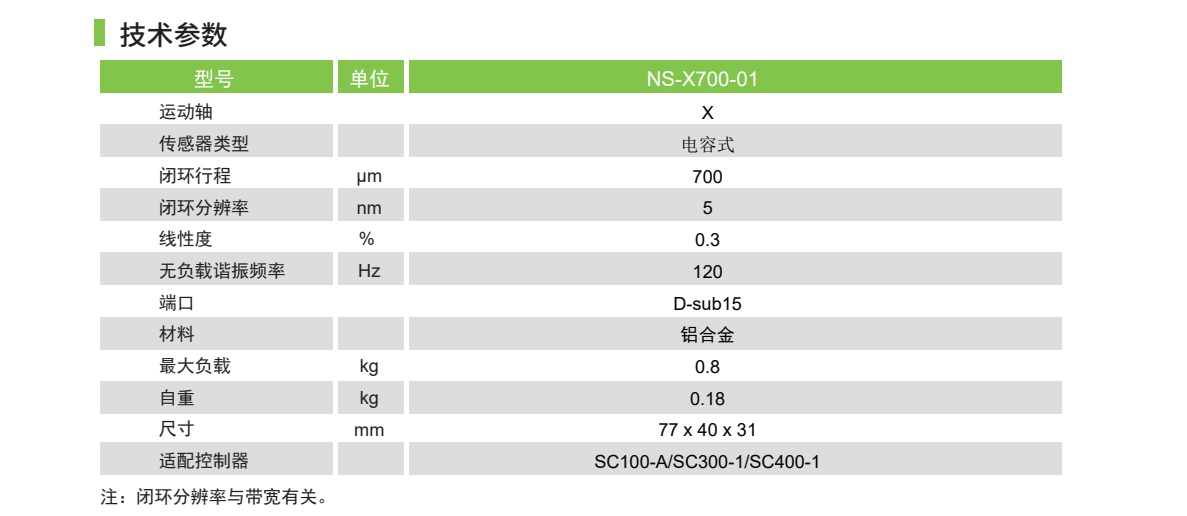

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | X |
| Closed-loop Travel (μm) | 700μm |
| Closed-loop Resolution (nm) | 5nm |
| Linearity (%) | 0.3% |
| No-load Resonant Frequency (Hz) | 120Hz |
| Port | D-sub15 |
| Maximum Load (kg) | 0.8kg |
| Weight (kg) | 0.18kg |

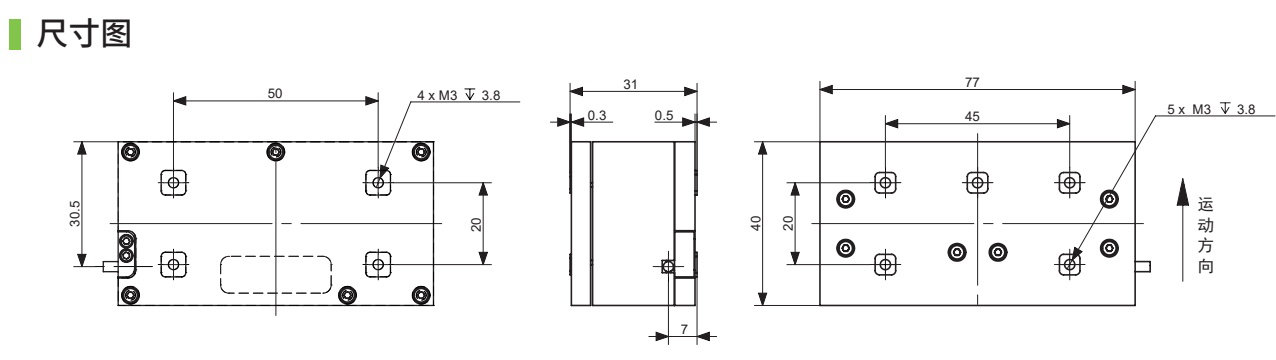

| Dimensions (mm) | 77x40x31 |
| Compatible Controllers | SC100-A/SC300-1/SC400-1 |
