NS-RB4-02
The NS-RB4-02 is a precision rotary actuator designed for high-accuracy applications requiring precise angular positioning and stability.
Save to Favorites
Overview

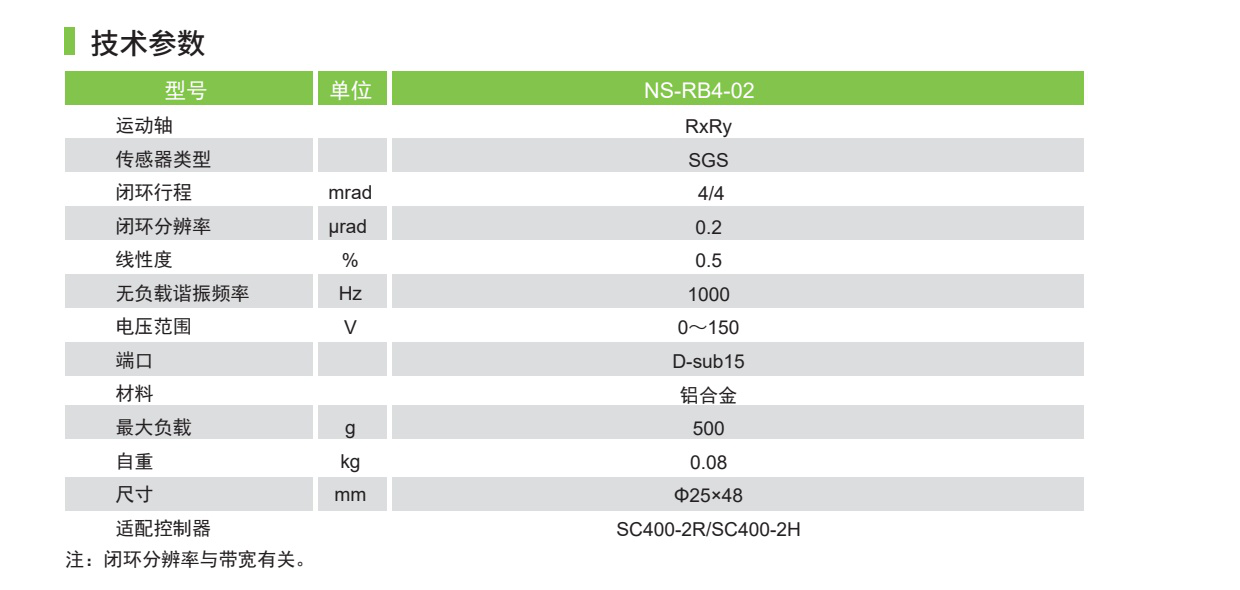

Specifications
| Parameter | Value |
|---|---|
| Motion Axis | RxRy |
| Closed-loop Travel (mrad) | 4/4 |
| Closed-loop Resolution (μrad) | 0.2 |
| Linearity (%) | 0.5% |
| No-load Resonance Frequency (Hz) | 1000Hz |
| Voltage Range (V) | 0~150V |
| Port | D-sub15 |
| Maximum Load (g) | 500g |
| Weight (kg) | 0.08kg |
Applications
Key Features
Datasheet
