XWJ-AF Series Precision Linear Stage
The XWJ-AF series precision linear stage is designed for high-accuracy linear motion applications. It features a compact design, high load capacity, and smooth operation, making it ideal for various industrial and scientific uses.
Save to Favorites
Overview

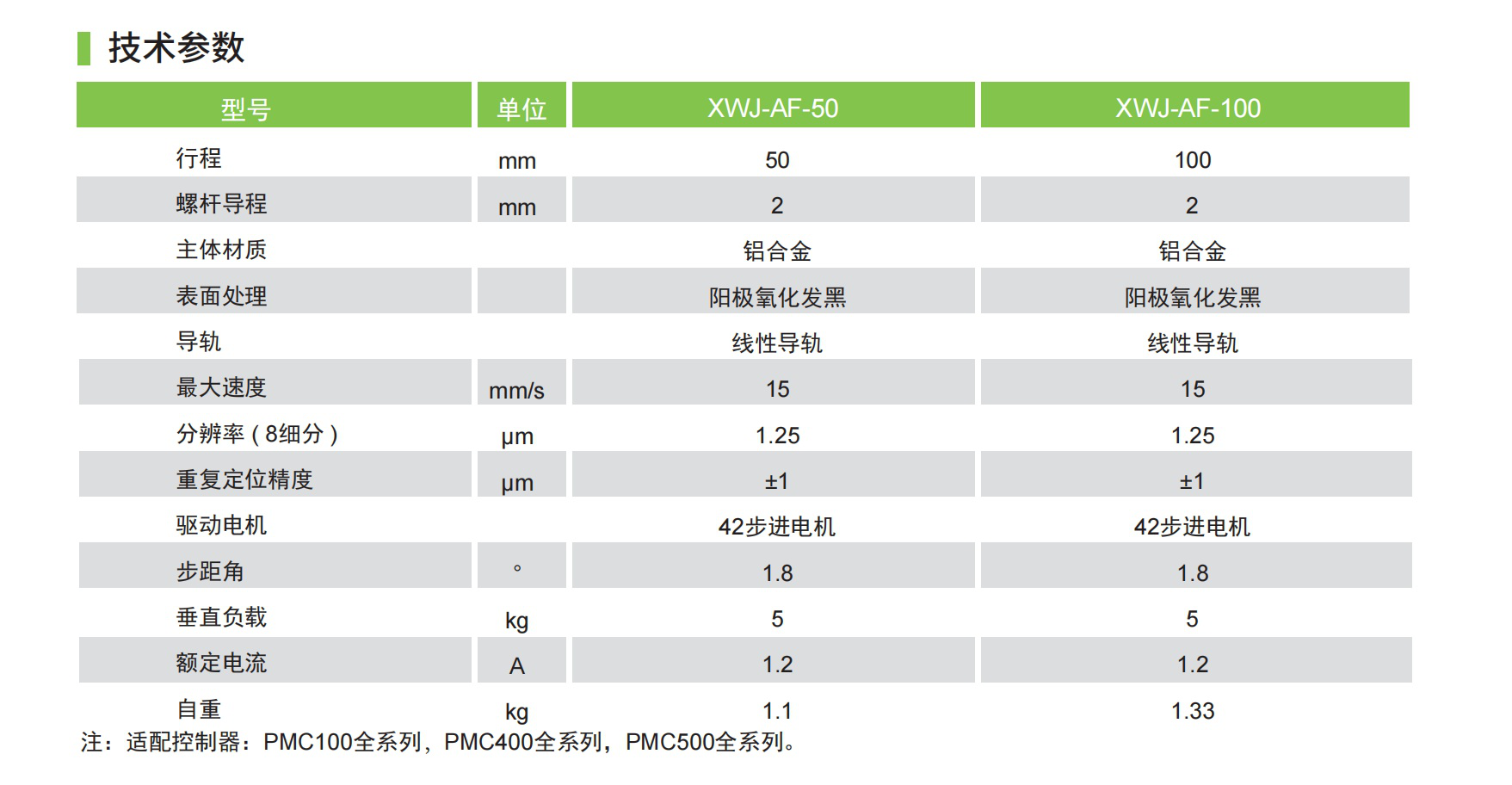

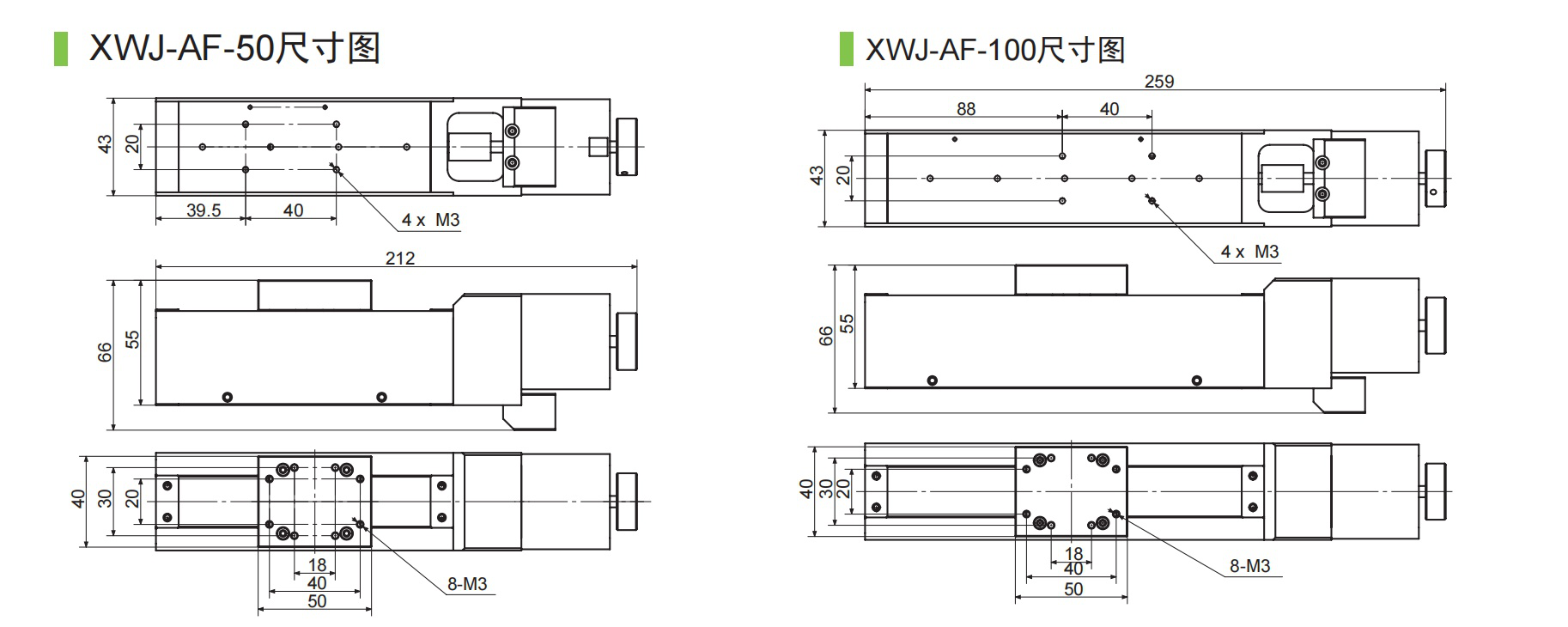

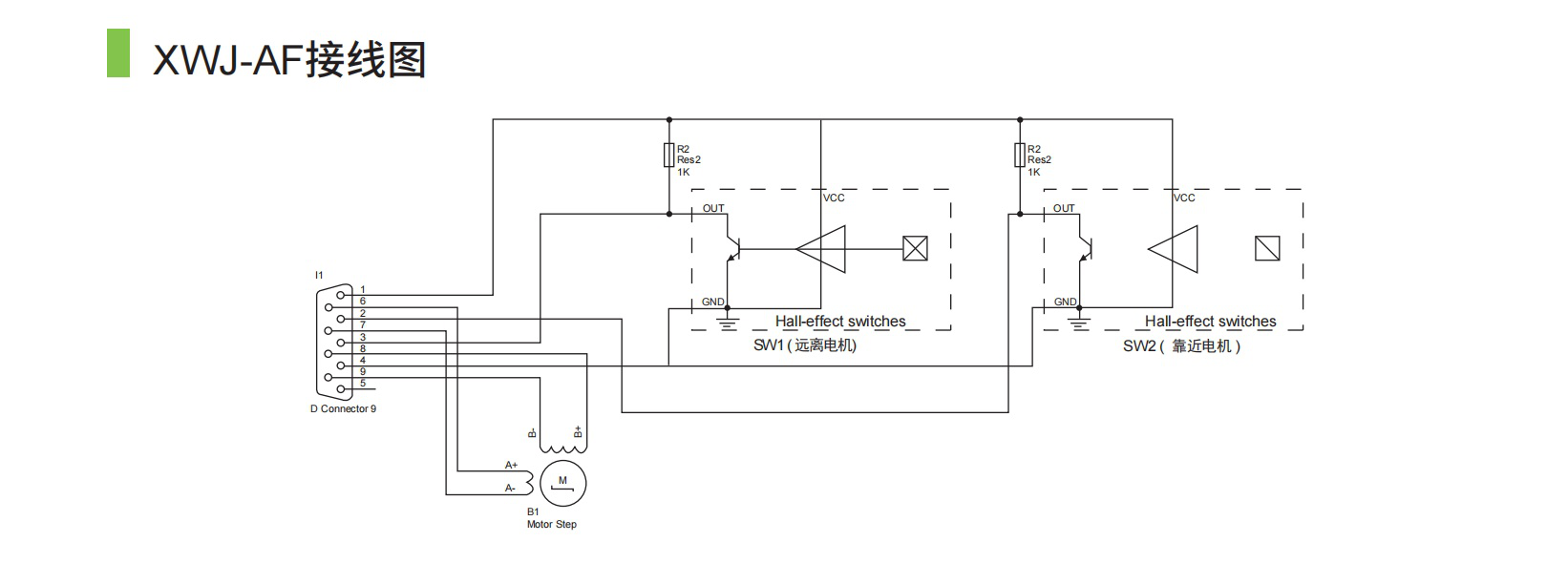

Specifications
| Parameter | Value |
|---|---|
| Travel Range XWJ-AF-50 | 50mm |
| Travel Range XWJ-AF-100 | 100mm |
| Lead of Screw XWJ-AF-50 | 2mm |
| Lead of Screw XWJ-AF-100 | 2mm |
| Main Material XWJ-AF-50 | Aluminum alloy |
| Main Material XWJ-AF-100 | Aluminum alloy |
| Surface Treatment XWJ-AF-50 | Anodized black |
| Surface Treatment XWJ-AF-100 | Anodized black |
| Guide Rail XWJ-AF-50 | Linear guide rail |
| Guide Rail XWJ-AF-100 | Linear guide rail |
| Max Speed XWJ-AF-50 | 15mm/s |
| Max Speed XWJ-AF-100 | 15mm/s |
| Resolution (8 Subdivisions) XWJ-AF-50 | 1.25μm |
| Resolution (8 Subdivisions) XWJ-AF-100 | 1.25μm |
| Repeat Positioning Accuracy XWJ-AF-50 | ±1μm |
| Repeat Positioning Accuracy XWJ-AF-100 | ±1μm |
| Drive Motor XWJ-AF-50 | 42 stepper motor |
| Drive Motor XWJ-AF-100 | 42 stepper motor |
| Step Angle XWJ-AF-50 | 1.8° |
| Step Angle XWJ-AF-100 | 1.8° |
| Vertical Load XWJ-AF-50 | 5kg |
| Vertical Load XWJ-AF-100 | 5kg |
| Rated Current XWJ-AF-50 | 1.1A |
| Rated Current XWJ-AF-100 | 1.2A |
| Self Weight XWJ-AF-50 | 1.1kg |
| Self Weight XWJ-AF-100 | 1.33kg |
