PR-70PM Precision Rotary Stage
The PR-70PM is a high-precision rotary stage designed for applications requiring accurate rotation and positioning. It features a compact design, high load capacity, and advanced piezoelectric motor technology.
Save to Favorites
Overview
Specifications

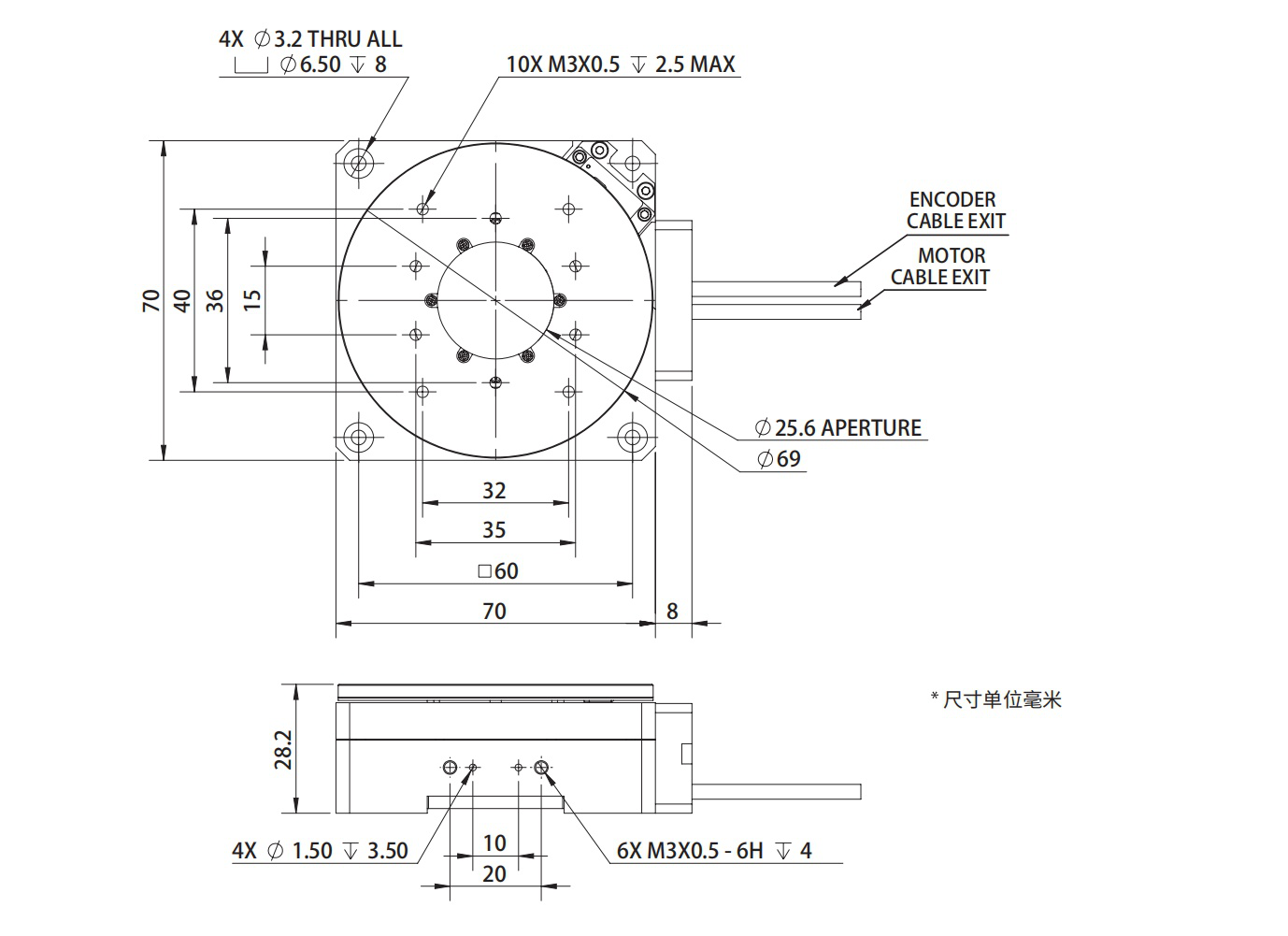

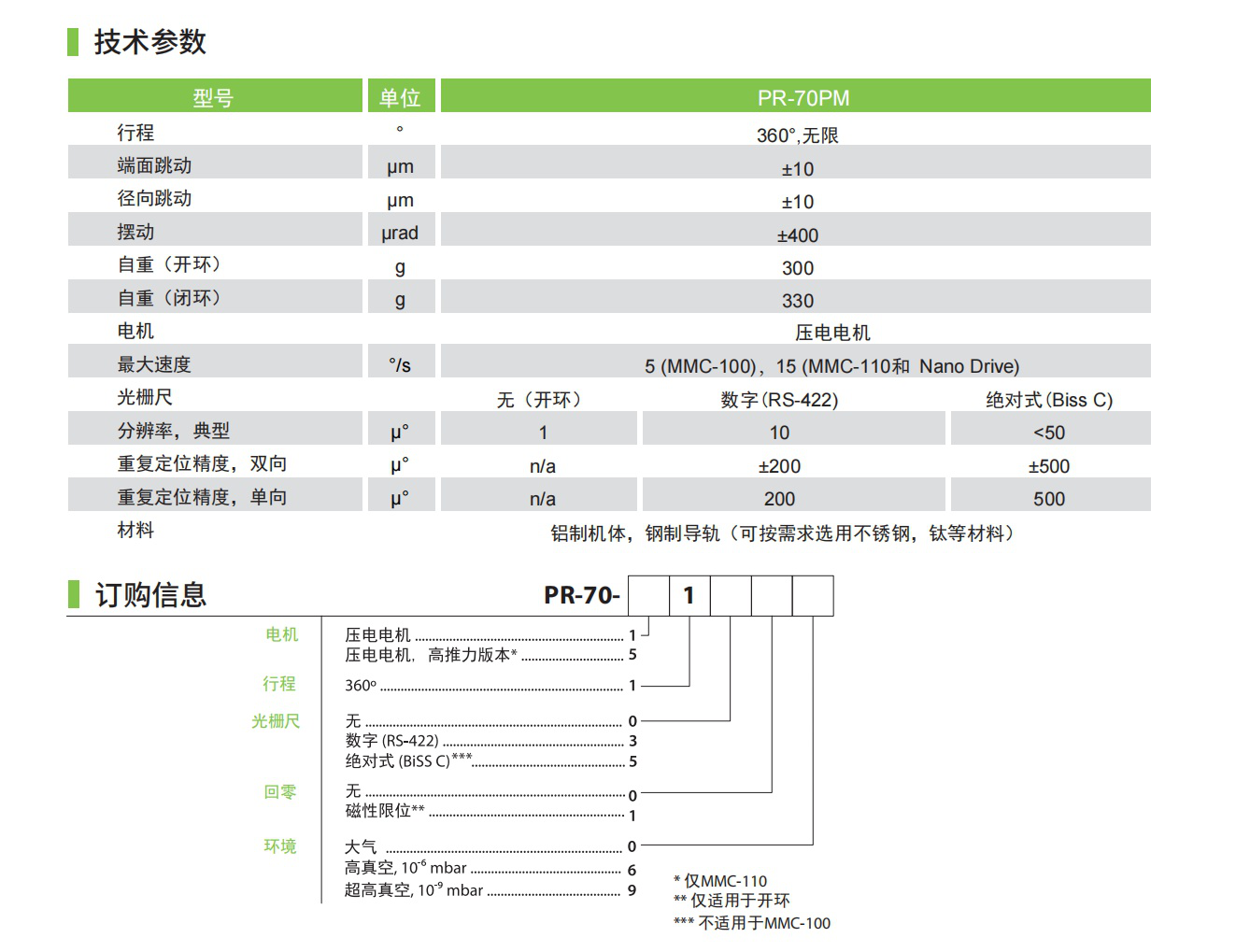

| Parameter | Value |
|---|---|
| Travel Range | 360°None限 |
| End Face Runout | ±10μm |
| Radial Runout | ±10μm |
| Wobble | ±400μrad |
| Weight (Open Loop) | 300g |
| Weight (Closed Loop) | 330g |
| Encoder | None(开环), 数字(RS-422), 绝对式(Biss C) |

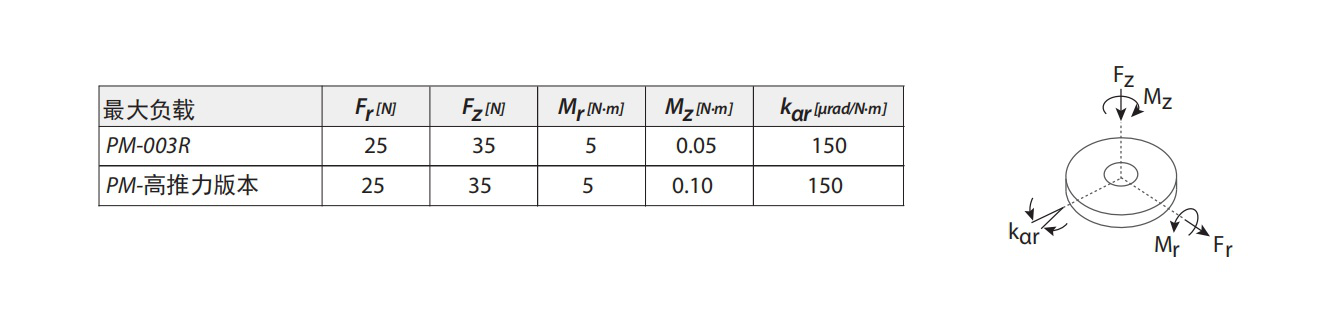

| Maximum Load Fr | 25N |
| Maximum Load Fz | 35N |
| Maximum Load Mr | 5N·m |
| Maximum Load kar | 150μrad/N·m |
