PR-32L
The PR-32L is a precision rotary stage designed for continuous 360° rotation. It features high accuracy and stability, making it ideal for applications requiring precise angular positioning.
Save to Favorites
Overview

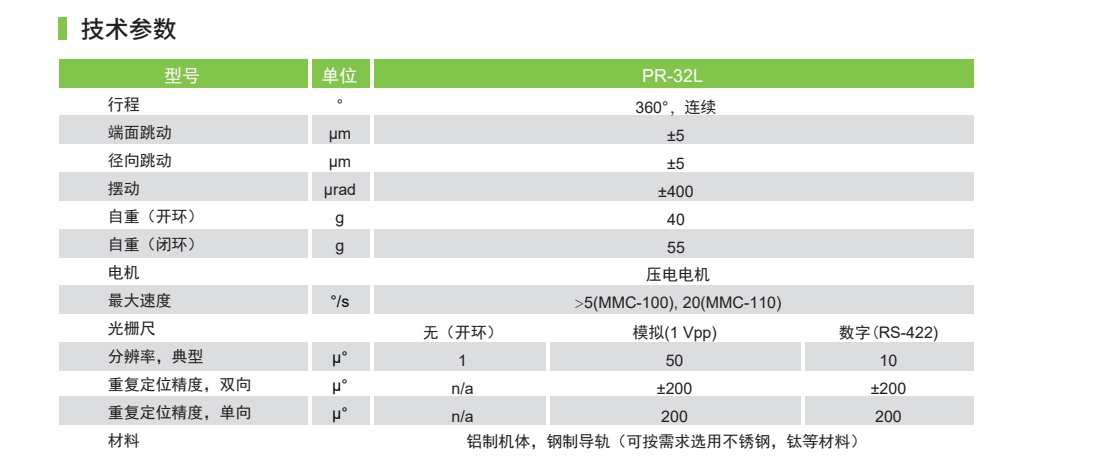

Specifications
| Parameter | Value |
|---|---|
| Travel Range | 360°, continuous |
| End Face Runout (μm) | ±5 |
| Radial Runout (μm) | ±5 |
| Wobble (μrad) | ±400 |
| Weight (open loop) (g) | 40 |
| Weight (closed loop) (g) | 55 |
| Motor | Piezoelectric Motor |
| Maximum Speed (°/s) | >5(MMC-100), 20(MMC-110) |
| Encoder | None (Open Loop) |
| Resolution, typical (μ°) | 50 |
| Resolution, Dual Type (μ°) | 10 |
| Repeatability, Single Direction (μ°) | 200 |
| Repeatability, Bidirectional (μ°) | 200 |
| Material | Aluminum body, steel guide rail (optional stainless steel, titanium material) |

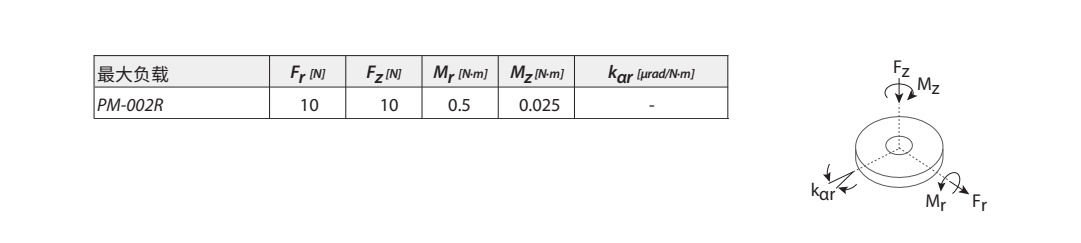

| Maximum Load Radial Force (Fr) (N) | 10 |
| Maximum Load Axial Force (Fz) (N) | 10 |
| Maximum Load Overturning Moment (Mr) (N·m) | 0.5 |
| Maximum Load Torque (Mz) (N·m) | 0.025 |
| Maximum Load Angular Stiffness (kar) (μrad/N·m) | - |
