PR-160
The PR-160 is a precision rotary stage designed for high-accuracy positioning and rotation applications. It features a robust aluminum alloy body and steel guide rails, ensuring durability and stability.
Save to Favorites
Overview
Specifications

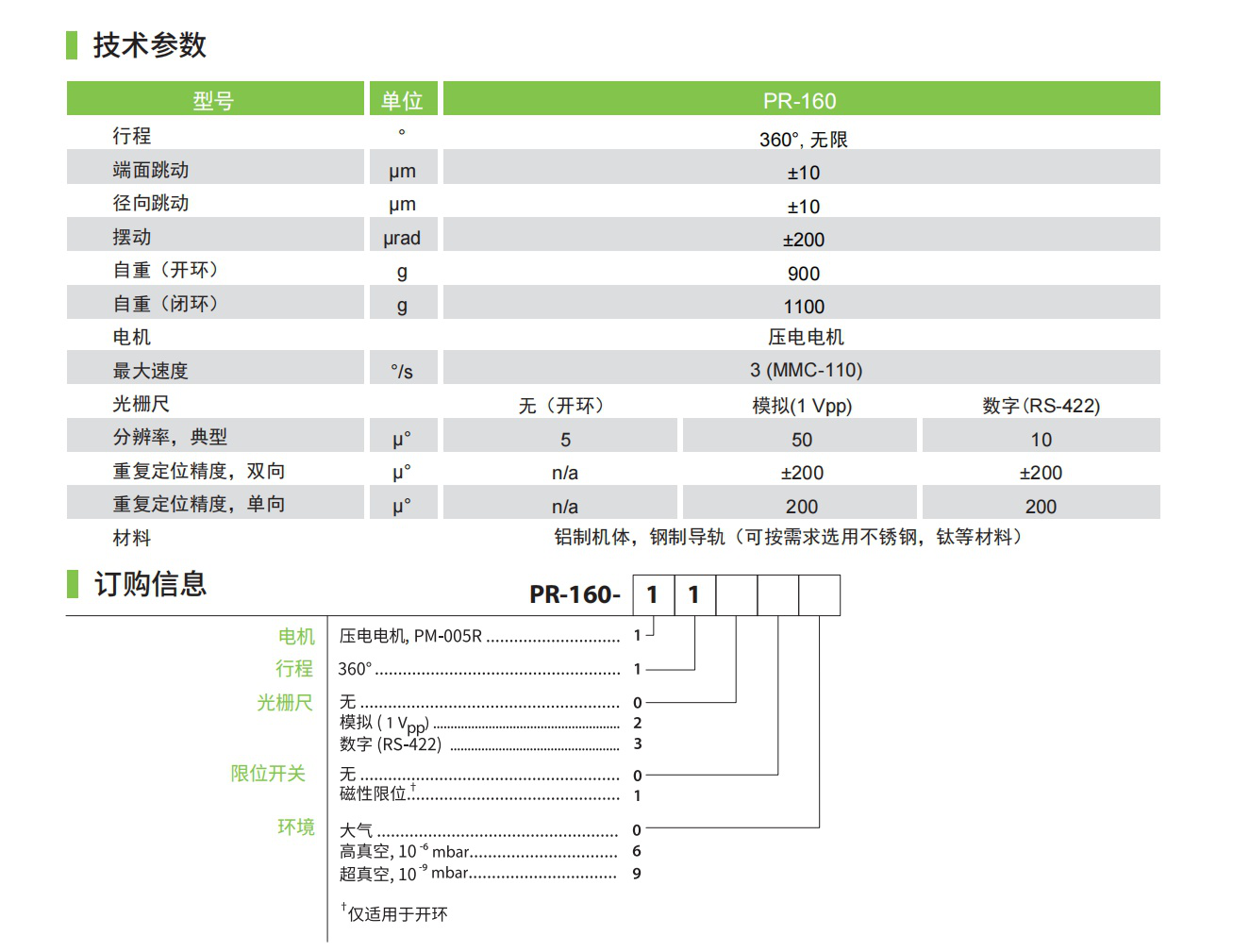

| Parameter | Value |
|---|---|
| Travel Range | 360°,None限 |
| End Face Runout (μm) | ±10 |
| Radial Runout (μm) | ±10 |
| Swing (μrad) | ±200 |
| Weight (open loop) (g) | 900 |
| Weight (closed loop) (g) | 1100 |
| Motor | 压电电机 |
| Maximum Speed (°/s) | 3 (MMC-110) |
| Grating Scale | None (开环),模拟(1Vpp),数字(RS-422) |
| Resolution, Typical (μ°) | 5,50,10 |
| Repeat Positioning Accuracy, Bidirectional (μ°) | n/a,±200,±200 |
| Repeat Positioning Accuracy, Unidirectional (μ°) | n/a,200,200 |
| Material | 铝制机体,钢制导轨 (可按需求选用不锈钢,钛等材料) |
| Maximum Load - Radial Force (Fr) (N) | 20 |
| Maximum Load - Axial Force (Fz) (N) | 100 |
| Maximum Load - Overturning Moment (Mr) (N·m) | 5 |
| Maximum Load - Torque (Mz) (N·m) | 0.3 |

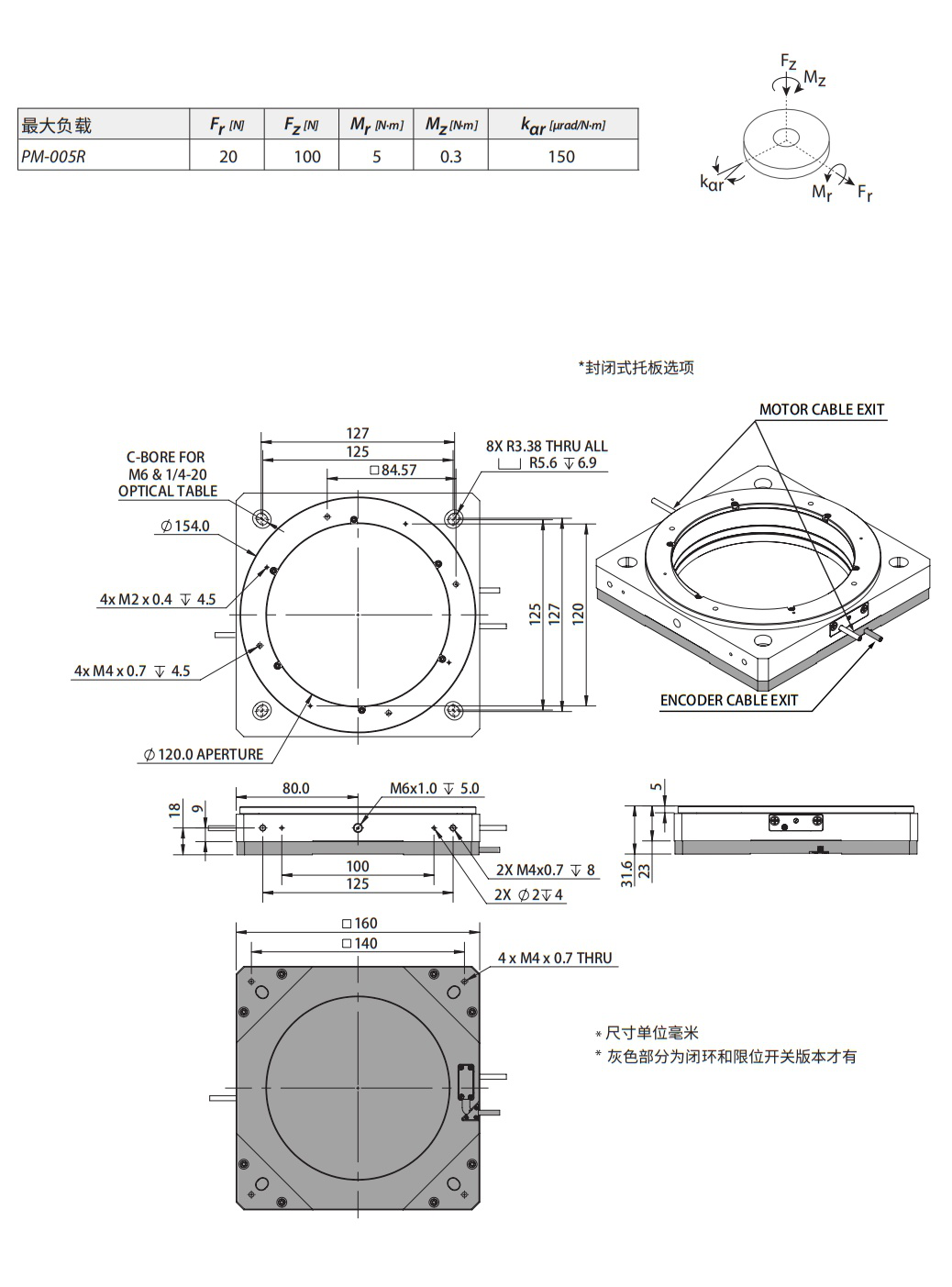

| Maximum Load - Angular Stiffness (kar) (μrad/N·m) | 150 |
