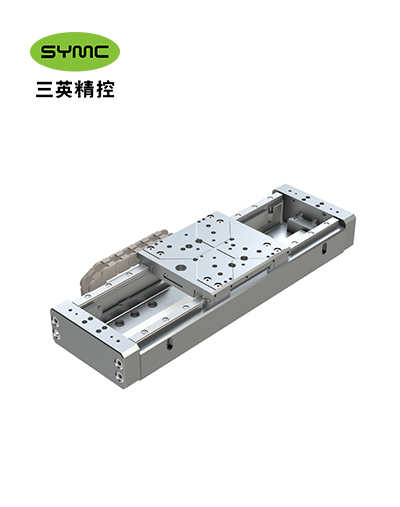

PPS-60 Precision Linear Stage
The PPS-60 is a high-precision linear stage designed for applications requiring accurate positioning and smooth motion control. It features piezoelectric motors and advanced encoder options for precise measurements.
Save to Favorites
Overview

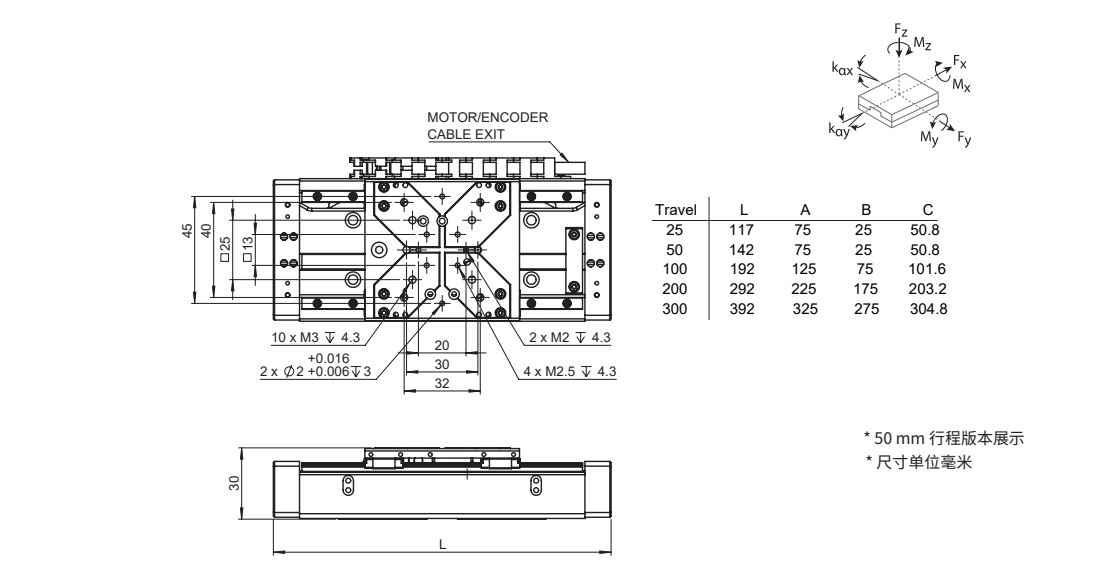

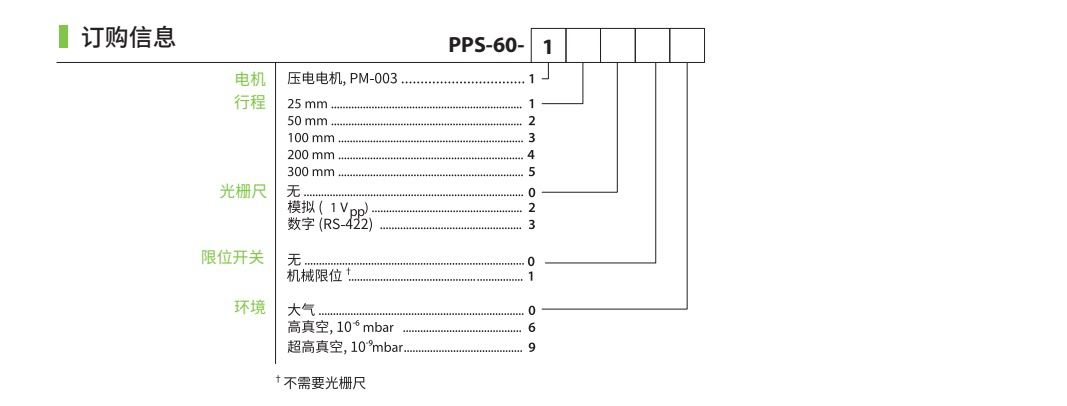

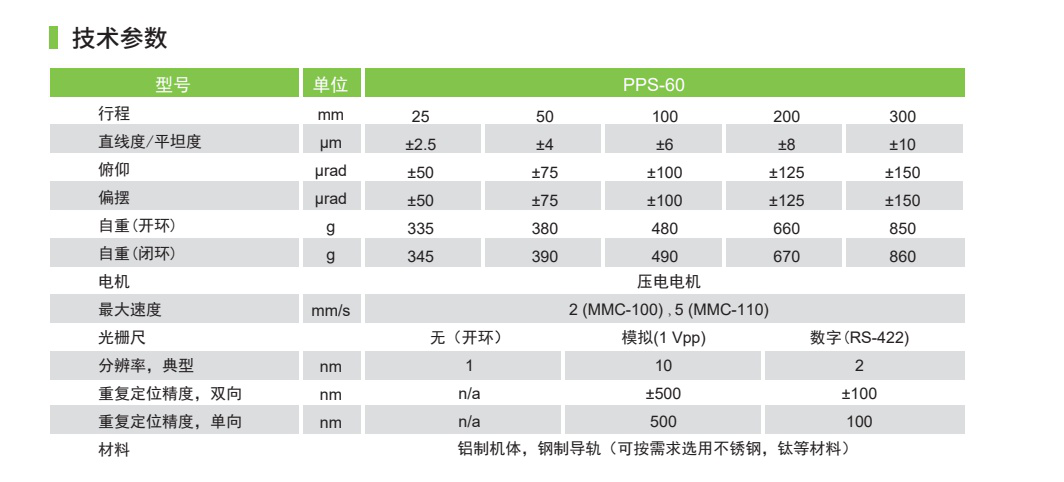

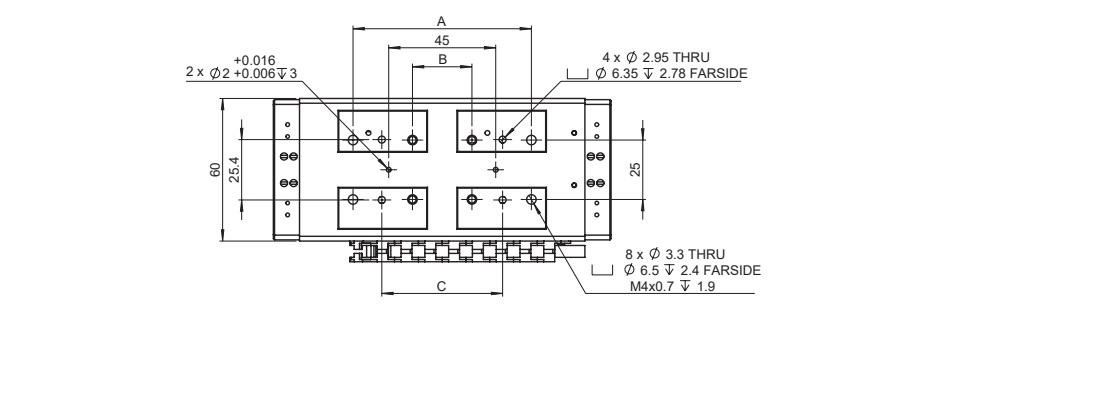

Specifications

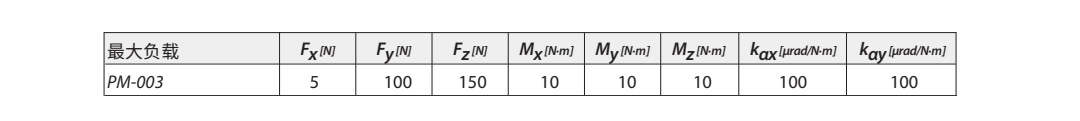

| Parameter | Value |
|---|---|
| Travel (mm) 25 | 25mm |
| Travel (mm) 50 | 50mm |
| Straightness/Flatness (μm) 25 | ±2.5μm |
| Straightness/Flatness (μm) 50 | ±4μm |
| Pitch (μrad) 25 | ±50 |
| Pitch (μrad) 50 | ±75 |
| Yaw (μrad) 25 | ±50 |
| Yaw (μrad) 50 | ±75 |
| Weight (Open Loop) (g) 25 | 335g |
| Weight (Open Loop) (g) 50 | 335g |
| Weight (Open Loop) (g) 100 | 480g |
| Weight (Open Loop) (g) 200 | 660g |
| Weight (Open Loop) (g) 300 | 850g |
| Weight (Closed Loop) (g) 25 | 345g |
| Weight (Closed Loop) (g) 50 | 345g |
| Weight (Closed Loop) (g) 100 | 490g |
| Weight (Closed Loop) (g) 200 | 670g |
| Weight (Closed Loop) (g) 300 | 860g |
| Encoder | None (Open Loop), Analog (1Vpp), Digital (RS-422) |
| Maximum load Fx (N) | 5N |
| Maximum load Fy (N) | 100N |
| Maximum load Fz (N) | 150N |
| Maximum Load Mx (N·m) | 10N·m |
| Maximum Load My (N·m) | 10N·m |
| Maximum Load Mz (N·m) | 10N·m |
| Maximum Load kαx (μrad/N·m) | 100 |
| Maximum Load kαy (μrad/N·m) | 100 |
