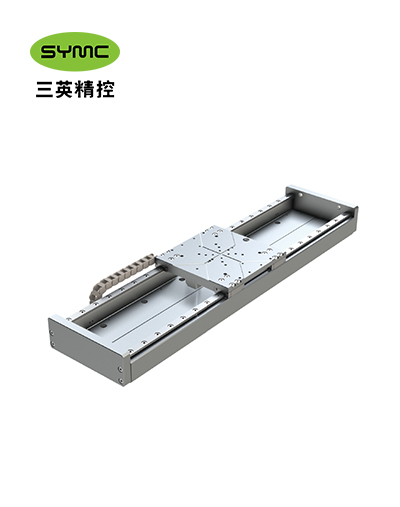

PPS-110 Precision Linear Stage
The PPS-110 is a high-precision linear stage designed for applications requiring accurate positioning and smooth motion control.
Save to Favorites

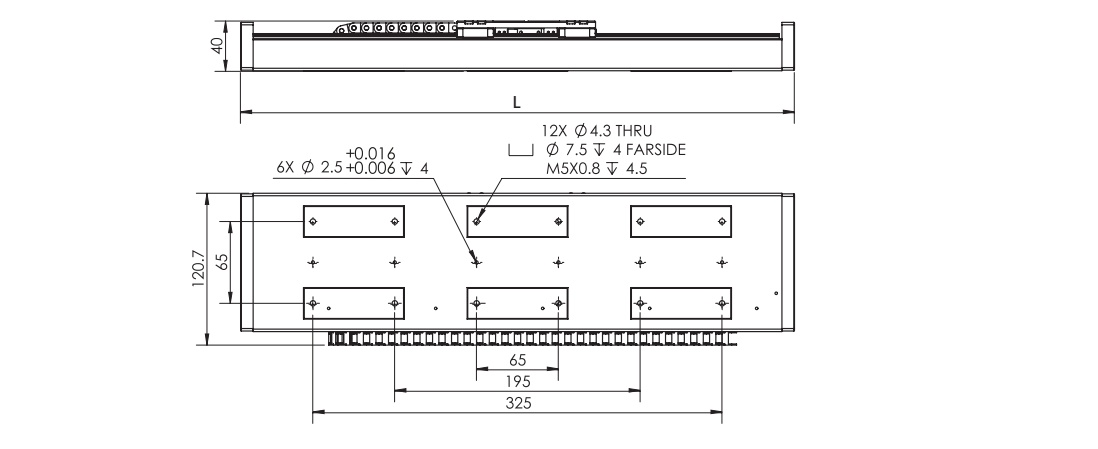

Overview

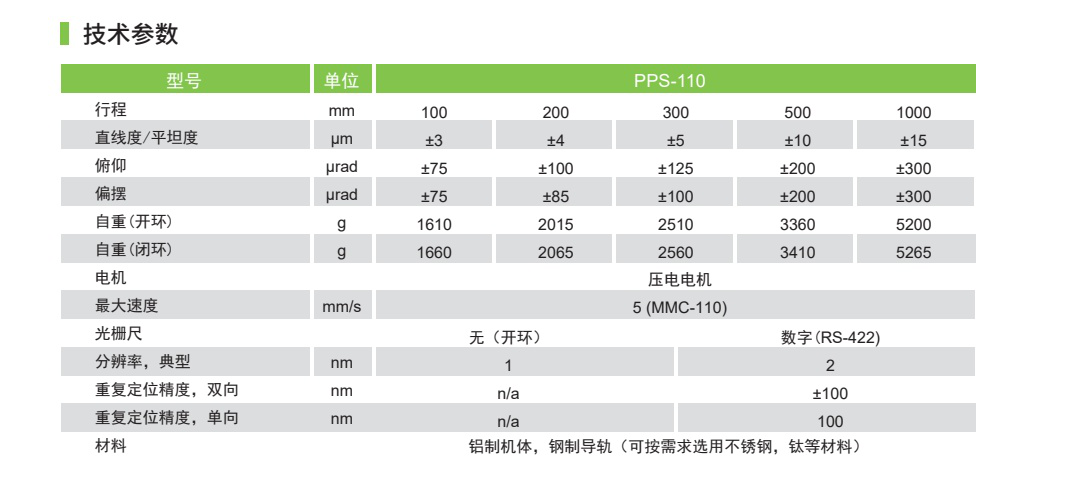

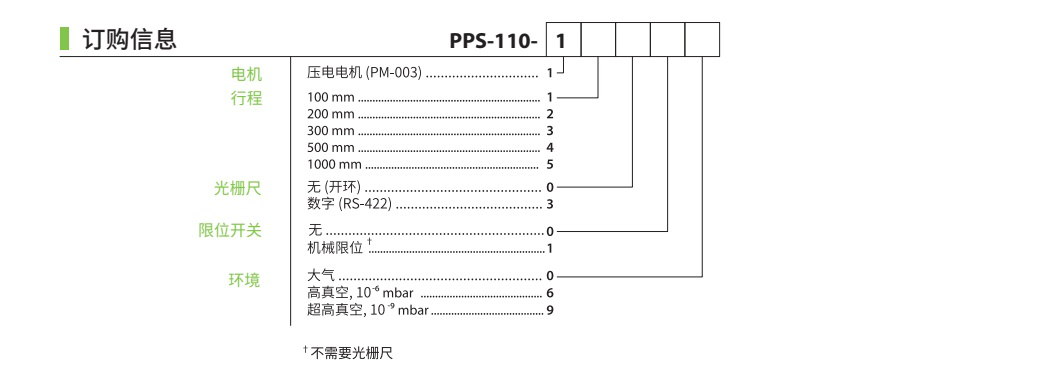

Specifications
| Parameter | Value |
|---|---|
| Travel (mm) PPS-110-100 | 100mm |
| Travel (mm) PPS-110-200 | 200mm |
| Travel (mm) PPS-110-300 | 300mm |
| Travel (mm) PPS-110-500 | 500mm |
| Travel (mm) PPS-110-1000 | 1000mm |
| Straightness/Flatness (μm) PPS-110-100 | ±3μm |
| Straightness/Flatness (μm) PPS-110-200 | ±4μm |
| Straightness/Flatness (μm) PPS-110-300 | ±5μm |
| Straightness/Flatness (μm) PPS-110-500 | ±10μm |
| Straightness/Flatness (μm) PPS-110-1000 | ±15μm |
| Yaw (μrad) PPS-110-100 | ±75 |
| Yaw (μrad) PPS-110-200 | ±85 |
| Yaw (μrad) PPS-110-300 | ±100 |
| Yaw (μrad) PPS-110-500 | ±200 |
| Yaw (μrad) PPS-110-1000 | ±300 |
| Weight (Open Loop) (g) PPS-110-100 | 1610g |
| Weight (Open Loop) (g) PPS-110-200 | 2015g |
| Weight (Open Loop) (g) PPS-110-300 | 2560g |
| Weight (Open Loop) (g) PPS-110-500 | 3360g |
| Weight (Open Loop) (g) PPS-110-1000 | 5200g |
| Weight (Closed Loop) (g) PPS-110-100 | 1660g |
| Weight (Closed Loop) (g) PPS-110-200 | 2065g |
| Weight (Closed Loop) (g) PPS-110-300 | 2560g |
| Weight (Closed Loop) (g) PPS-110-500 | 3410g |
| Weight (Closed Loop) (g) PPS-110-1000 | 5265g |
| Maximum Speed (mm/s) | 5 (MMC-110) |
| Encoder | Digital (RS-422) |
| Repeatability, Bidirectional (nm) | n/a |

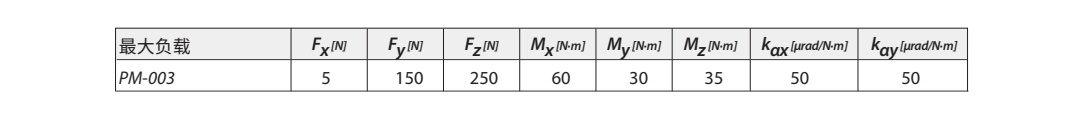

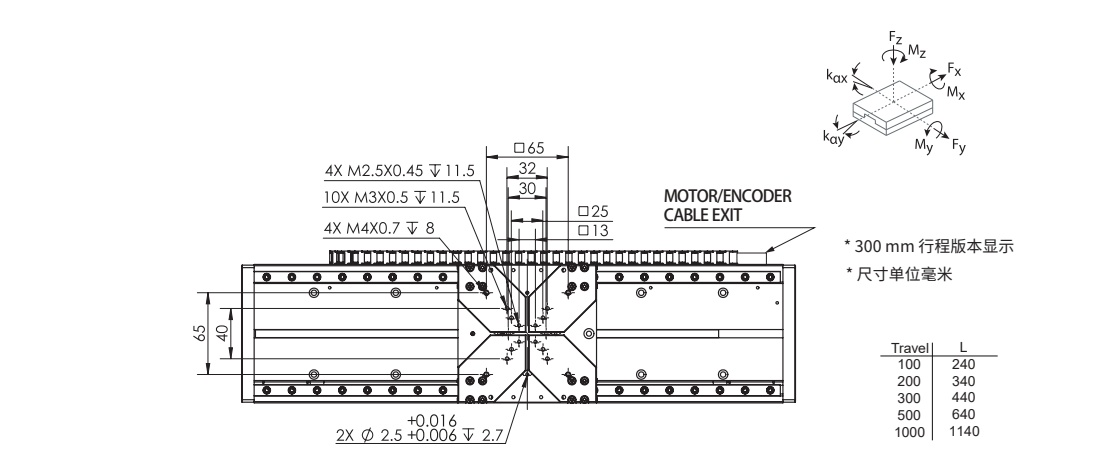

| Maximum load Fx (N) | 5N |
| Maximum load Fy (N) | 150N |
| Maximum load Fz (N) | 250N |
| Maximum Load Mx (N·m) | 60N·m |
| Maximum Load My (N·m) | 30N·m |
| Maximum Load Mz (N·m) | 35N·m |
| Maximum Load kαx (μrad/N·m) | 50 |
| Maximum Load kαy (μrad/N·m) | 50 |
