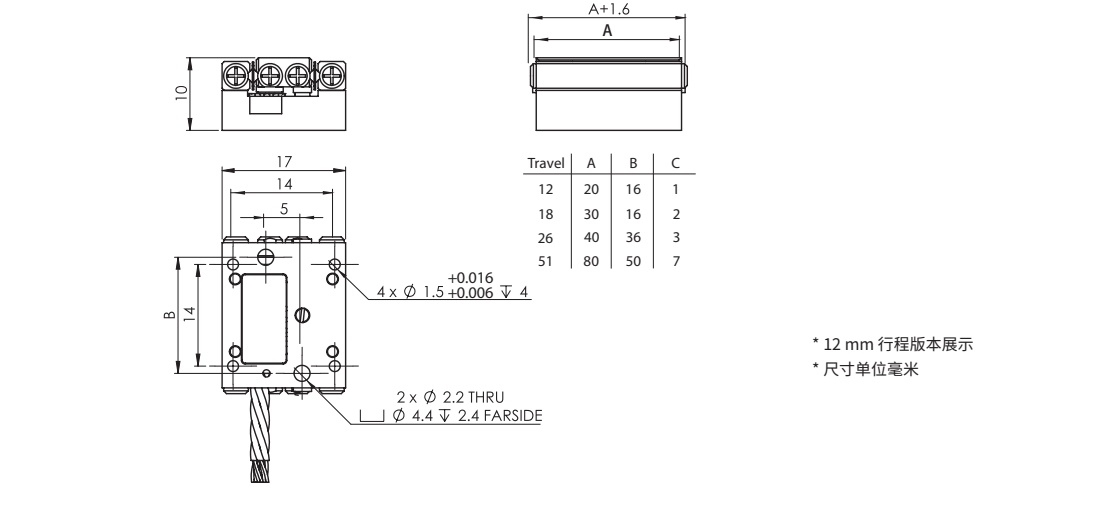

PP-18 Precision Positioning Stage
The PP-18 Precision Positioning Stage is a compact and high-performance piezoelectric motor-driven stage designed for precise linear motion control. It offers multiple travel ranges and high resolution, making it ideal for applications requiring accurate positioning.
Save to Favorites
Overview
Specifications

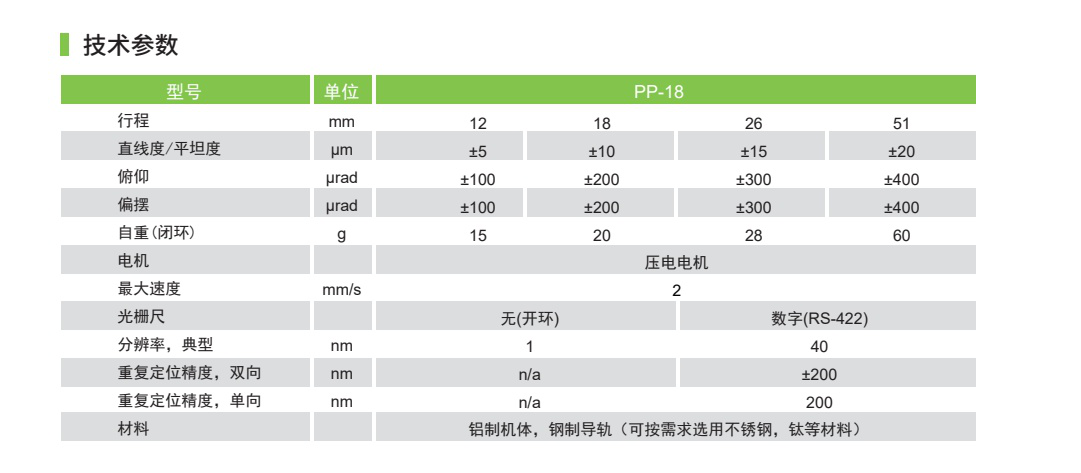

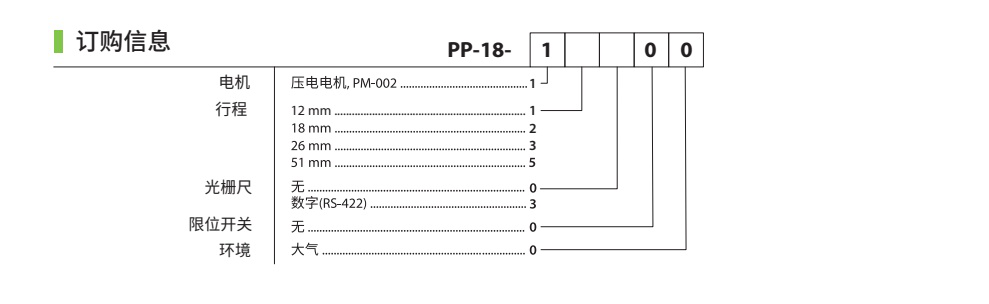

| Parameter | Value |
|---|---|
| Travel Range (mm) | 12, 18, 26, 51 |
| Straightness/Flatness (μm) | ±5, ±10, ±15, ±20 |
| Pitch (μrad) | ±100, ±200, ±300, ±400 |
| Yaw (μrad) | ±100, ±200, ±300, ±400 |
| Weight (g) | 15, 20, 28, 60 |
| Motor | Piezoelectric Motor |
| Maximum Speed (mm/s) | 2 |
| Encoder | None (open-loop), Digital (RS-422) |
| Resolution (nm) | 1 |
| Repeatability (Bidirectional) (nm) | n/a, ±200 |
| Repeatability (Unidirectional) (nm) | n/a, 200 |
| Material | Aluminum body, steel guide rail (optional stainless steel or titanium) |

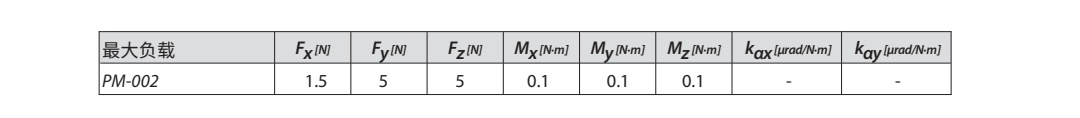

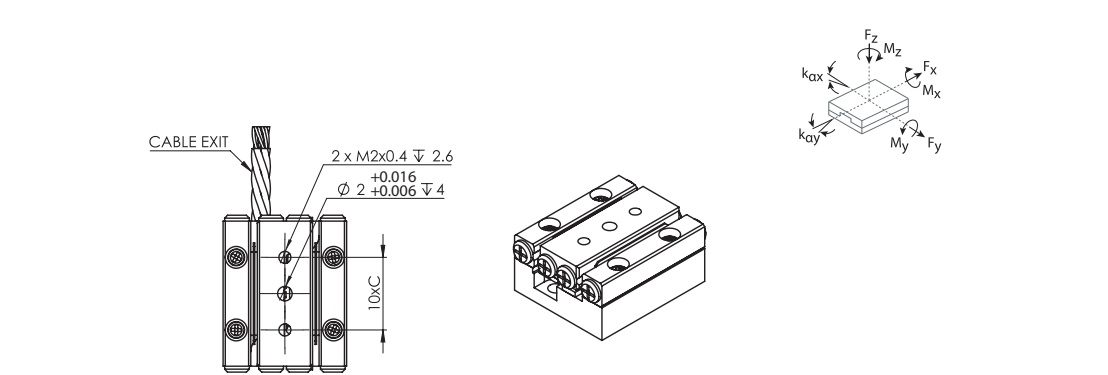

| Maximum load Fx (N) | 1.5 |
| Maximum load Fy (N) | 5 |
| Maximum load Fz (N) | 5 |
| Maximum Load Mx (N·m) | 0.1 |
| Maximum Load My (N·m) | 0.1 |
| Maximum Load Mz (N·m) | 0.1 |
| Maximum Load kax (μrad/N·m) | - |
| Maximum Load kay (μrad/N·m) | - |
