PG-50 Precision Rotation Stage
PG-50 is a precision rotary platform designed for high-accuracy applications, featuring compact design and advanced piezoelectric motor technology.
Save to Favorites
Overview
Specifications

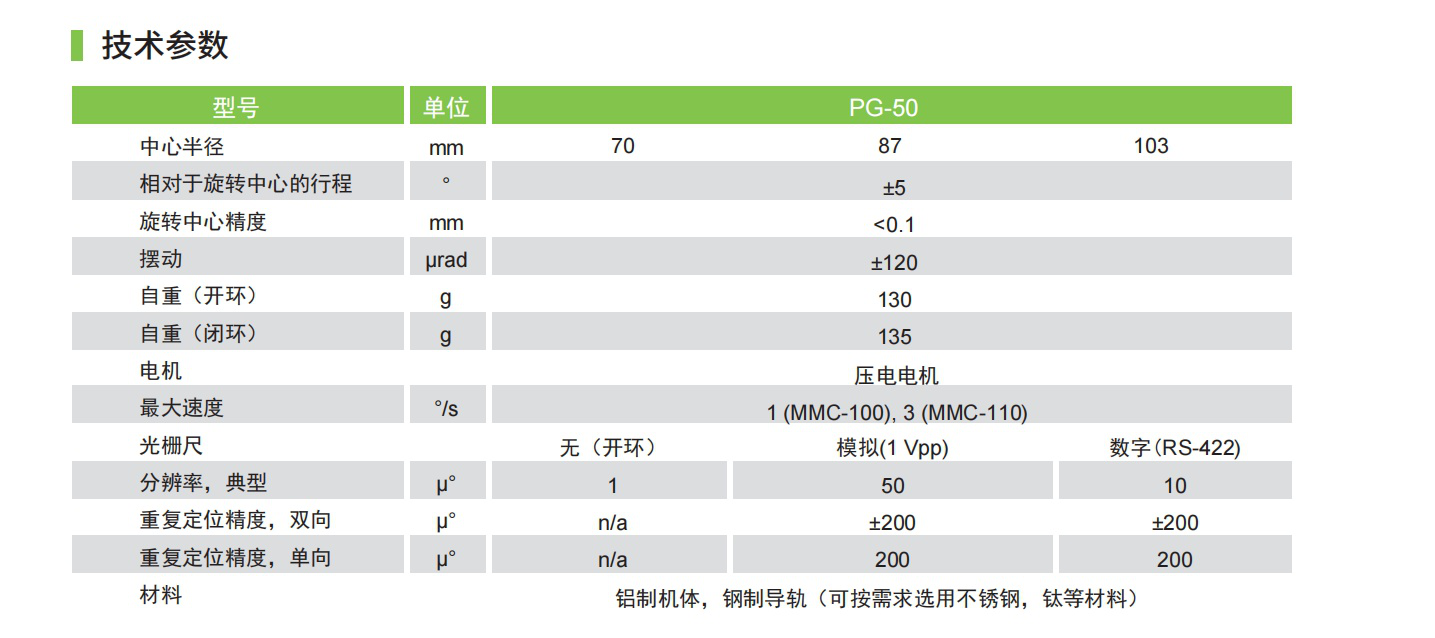

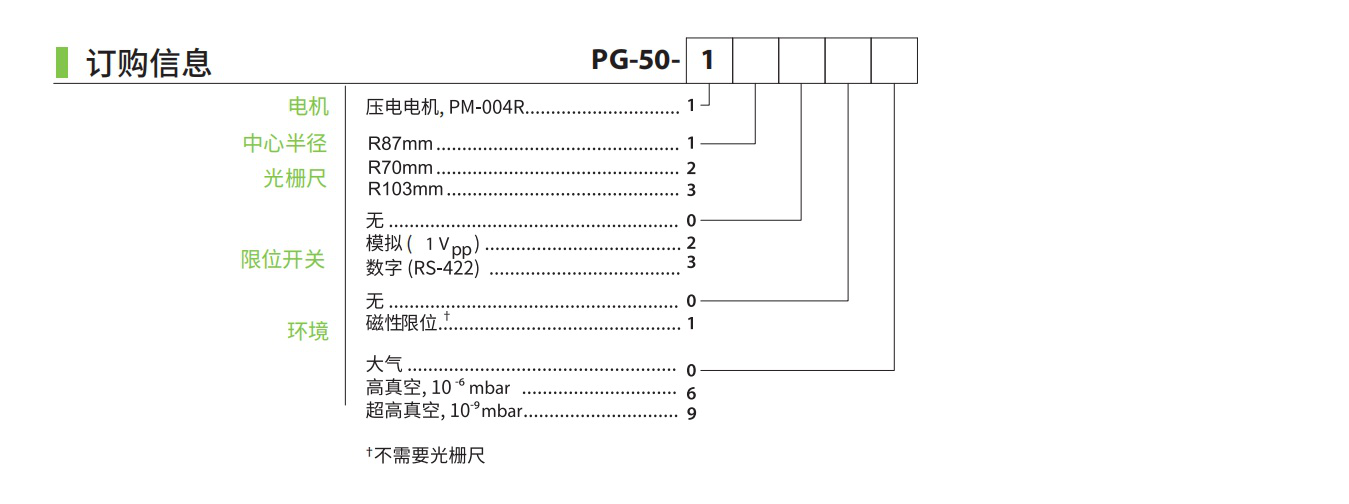

| Parameter | Value |
|---|---|

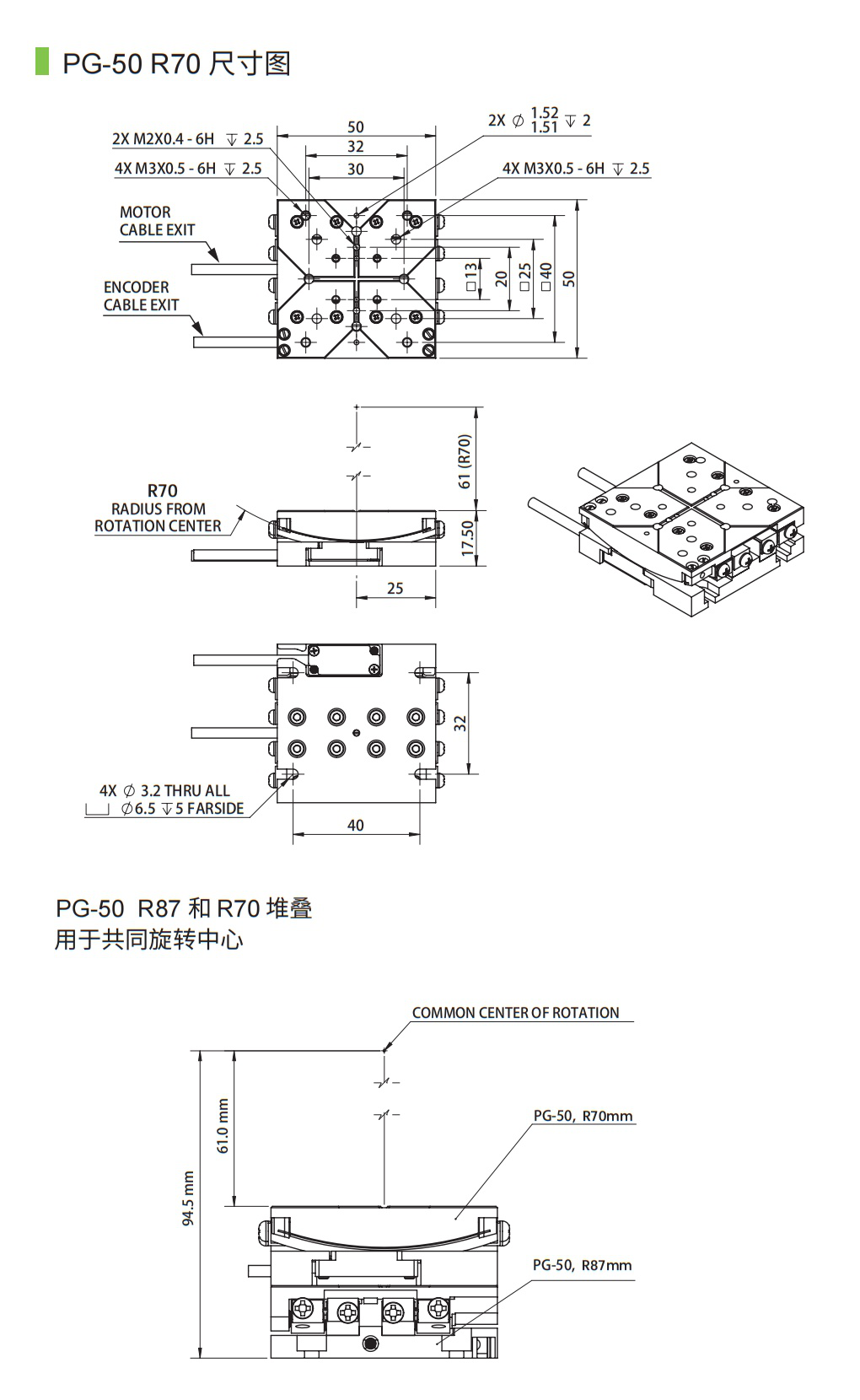

| Center Radius (mm) PG-50 R70 | 70mm |
| Center Radius (mm) PG-50 R87 | 87mm |

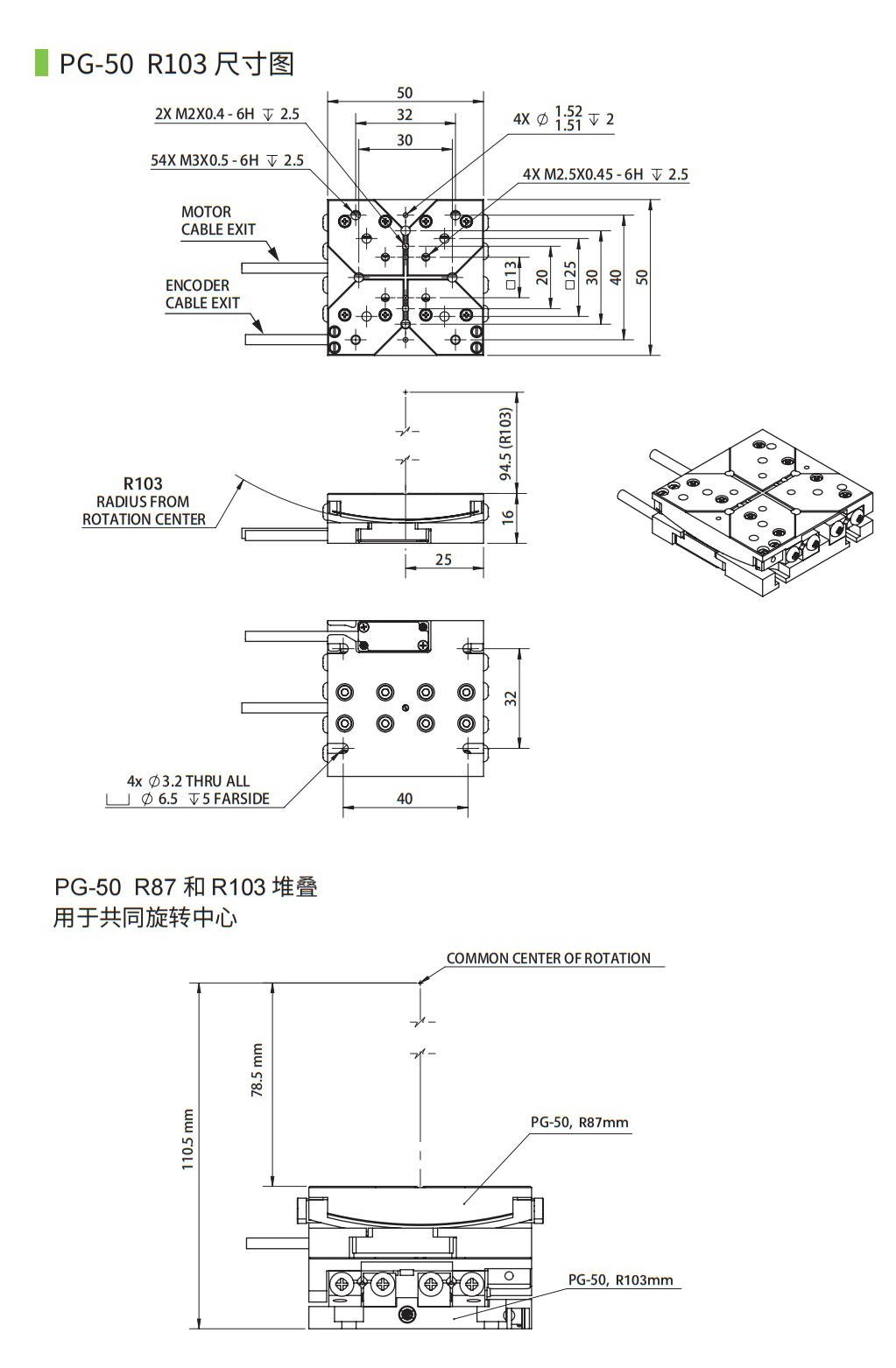

| Center Radius (mm) PG-50 R103 | 103mm |
| Travel relative to rotation center (°) | ±5° |
| Rotation center accuracy (mm) | <0.1mm |
| Wobble (μrad) | ±120 |
| Encoder | Analog (1Vpp), Digital (RS-422) |
| Resolution (μ°) | 1, 50, 10 |

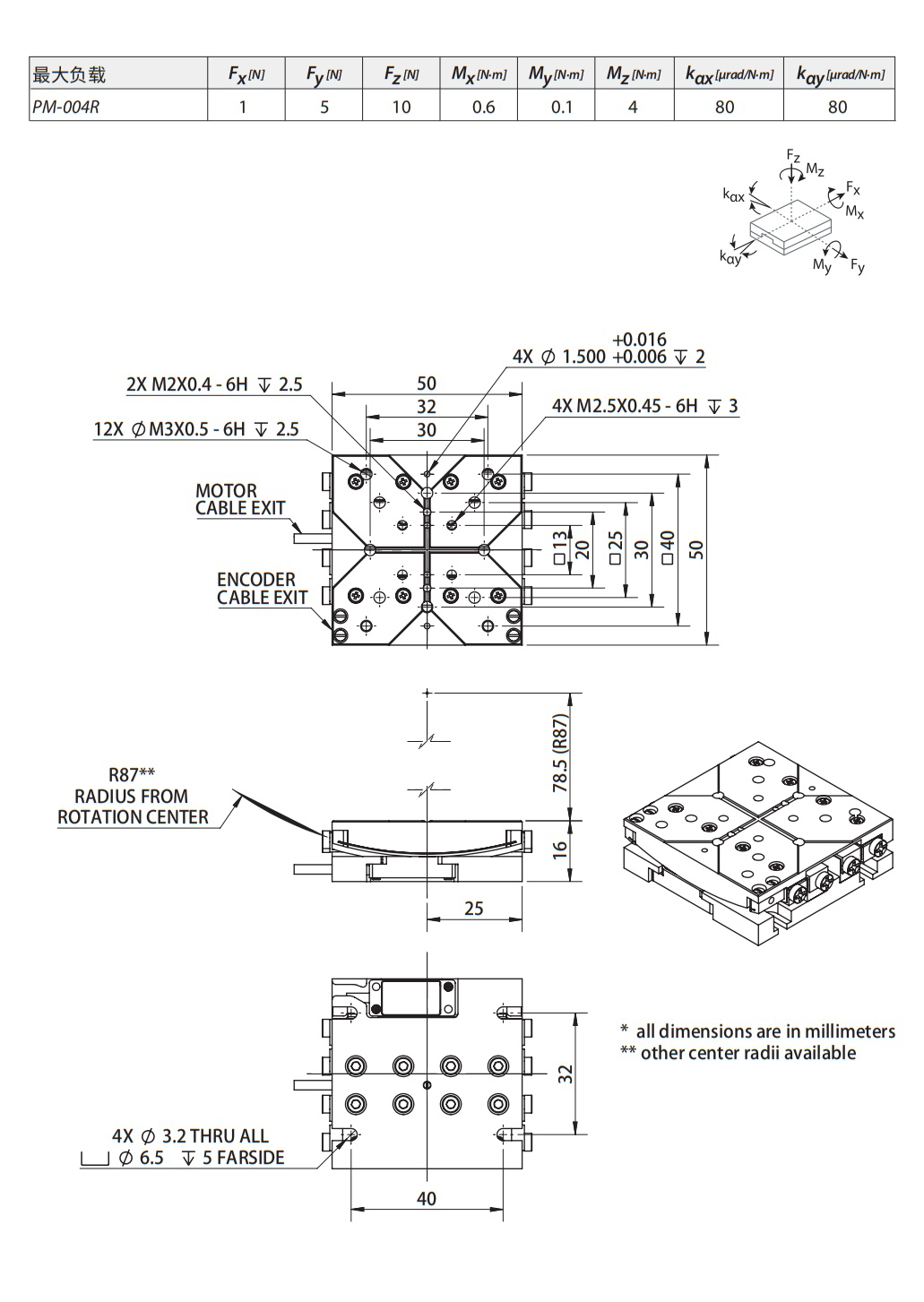

| Maximum load Fx (N) | 1N |
| Maximum load Fy (N) | 5N |
| Maximum load Fz (N) | 10N |
| Maximum Load Mx (N·m) | 0.6N·m |
| Maximum Load My (N·m) | 0.1N·m |
| Maximum Load Mz (N·m) | 4N·m |
| Stiffness kαx (μrad/N·m) | 80 |
| Stiffness kαy (μrad/N·m) | 80 |
