PG-25压电电机旋转Platform
PG-25压电电机旋转Platform是一款高精度旋转Platform，采用压电电机驱动，适用于精密定位 and 旋转控制。其结构紧凑，性能稳定，广泛Application于光学、半导体 and 科研领域。
Save to Favorites
Overview

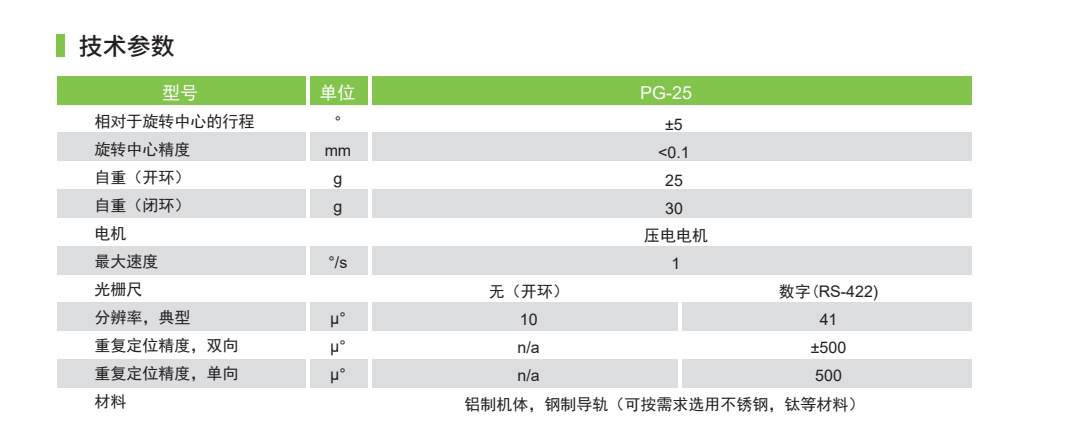

Specifications
| Parameter | Value |
|---|---|
| Travel relative to rotation center (°) | ±5 |
| Rotation center accuracy (mm) | <0.1 |
| Weight (open loop) (g) | 25 |
| Weight (closed loop) (g) | 30 |
| Motor | 压电电机 |
| Maximum Speed (°/s) | 1 |
| Encoder | 数字 (RS-422) |
| Resolution, typical (μ°) | 10 |
| Repeatability, bidirectional (μ°) | ±500 |
| Repeatability, unidirectional (μ°) | 500 |
| Material | 铝制机体,钢制导轨 (可按需求选用不锈钢,钛等材料) |

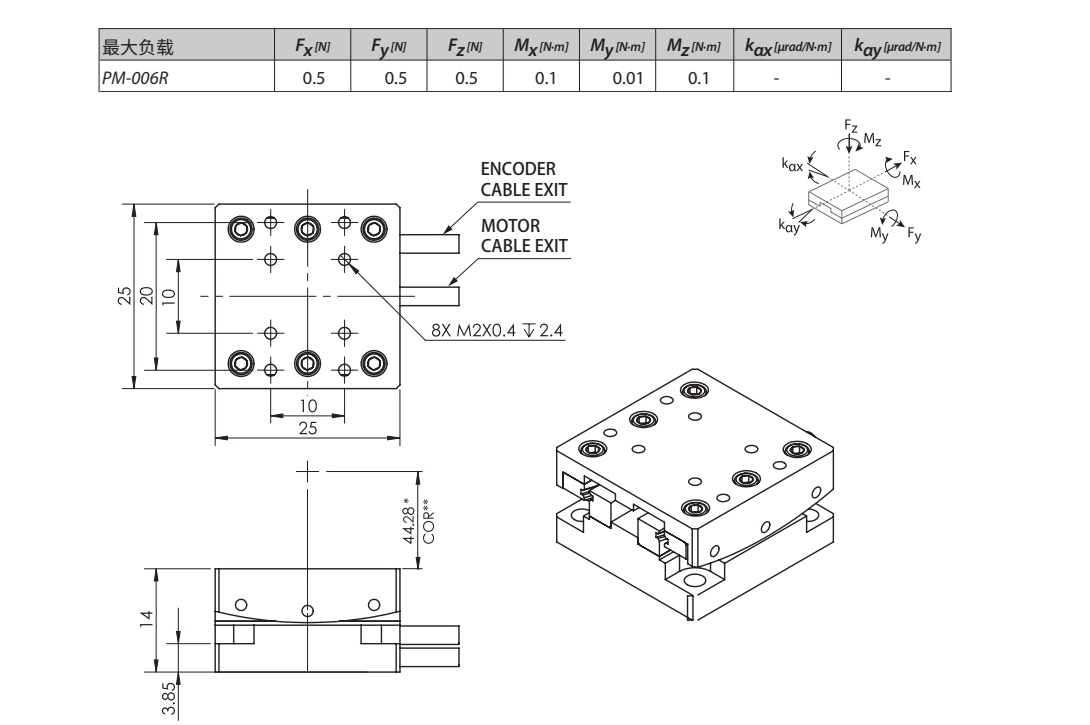

| Maximum load Fx (N) | 0.5 |
| Maximum load Fy (N) | 0.5 |
| Maximum load Fz (N) | 0.5 |
| Maximum load Mx (Nm) | 0.1 |
| Maximum load My (Nm) | 0.01 |
| Maximum load Mz (Nm) | 0.1 |
