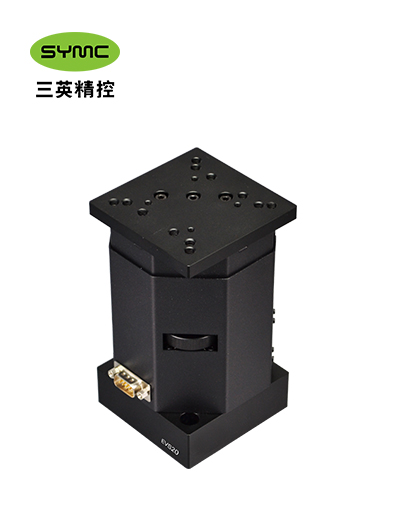

EVS20/EVS50 Precision Electric Vertical Stage
The EVS20/EVS50 precision electric vertical stage is designed for high-accuracy vertical positioning applications. It features a compact design, high load capacity, and precise movement, making it ideal for various industrial and scientific uses.
Save to Favorites
Overview

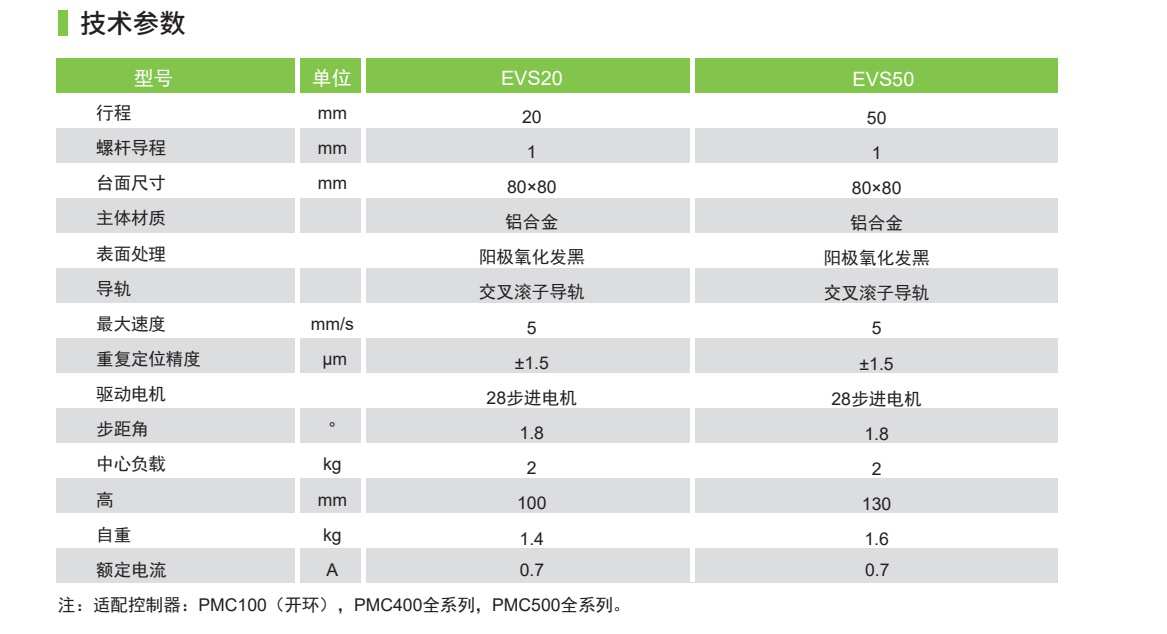

Specifications
| Parameter | Value |
|---|---|
| Travel Range (mm) EVS20 | 20mm |
| Travel Range (mm) EVS50 | 50mm |
| Lead Screw Pitch (mm) EVS20 | 1mm |
| Lead Screw Pitch (mm) EVS50 | 1mm |
| Platform Size (mm) EVS20 | 80×80 |
| Platform Size (mm) EVS50 | 80×80 |
| Main Material EVS20 | Aluminum Alloy |
| Main Material EVS50 | Aluminum Alloy |
| Surface Treatment EVS20 | Anodized Oxidation |
| Surface Treatment EVS50 | Anodized Oxidation |
| Guide Rail EVS20 | Cross Roller Guide |
| Guide Rail EVS50 | Cross Roller Guide |
| Maximum Speed (mm/s) EVS20 | 5mm/s |
| Maximum Speed (mm/s) EVS50 | 5mm/s |
| Repeatability (mm) EVS20 | ±1.5mm |
| Repeatability (mm) EVS50 | ±1.5mm |
| Drive Motor EVS20 | 28-step Motor |
| Drive Motor EVS50 | 28-step Motor |
| Step Angle EVS20 | 1.8 |
| Step Angle EVS50 | 1.8 |
| Central Load Capacity (kg) EVS20 | 2kg |
| Central Load Capacity (kg) EVS50 | 2kg |
| Height (mm) EVS20 | 100mm |
| Height (mm) EVS50 | 130mm |
| Weight (kg) EVS20 | 1.4kg |
| Weight (kg) EVS50 | 1.6kg |
| Rated Current (A) EVS20 | 0.7A |
| Rated Current (A) EVS50 | 0.7A |
