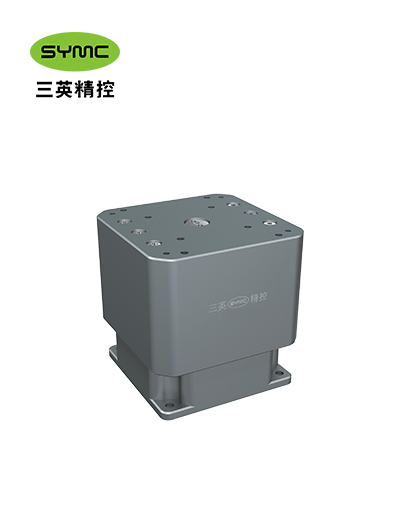

EVSP/G Series Precision Stage
The EVSP/G series precision stage is designed for high-accuracy positioning applications, featuring a compact structure and advanced optical encoder technology.
Save to Favorites
Overview

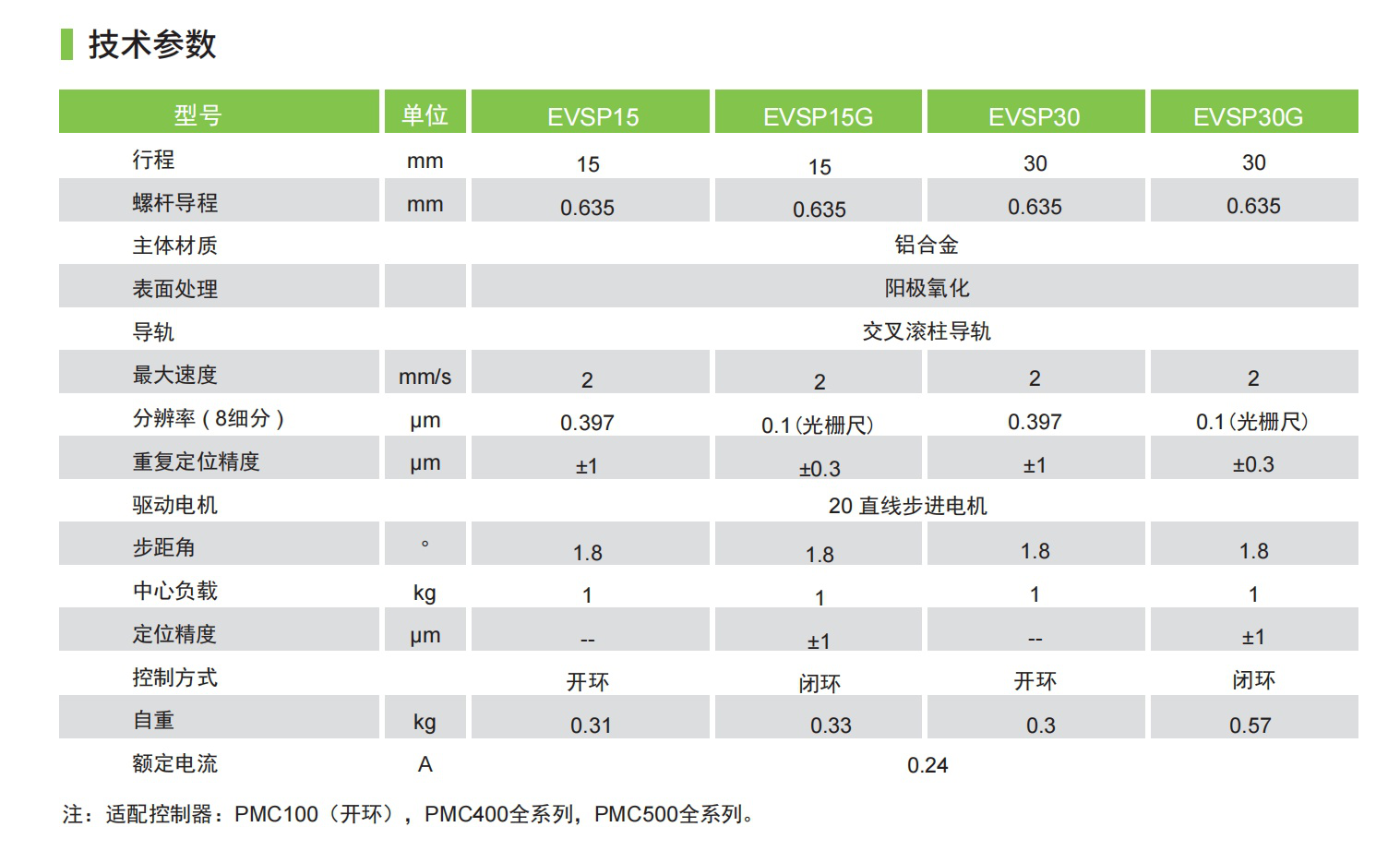

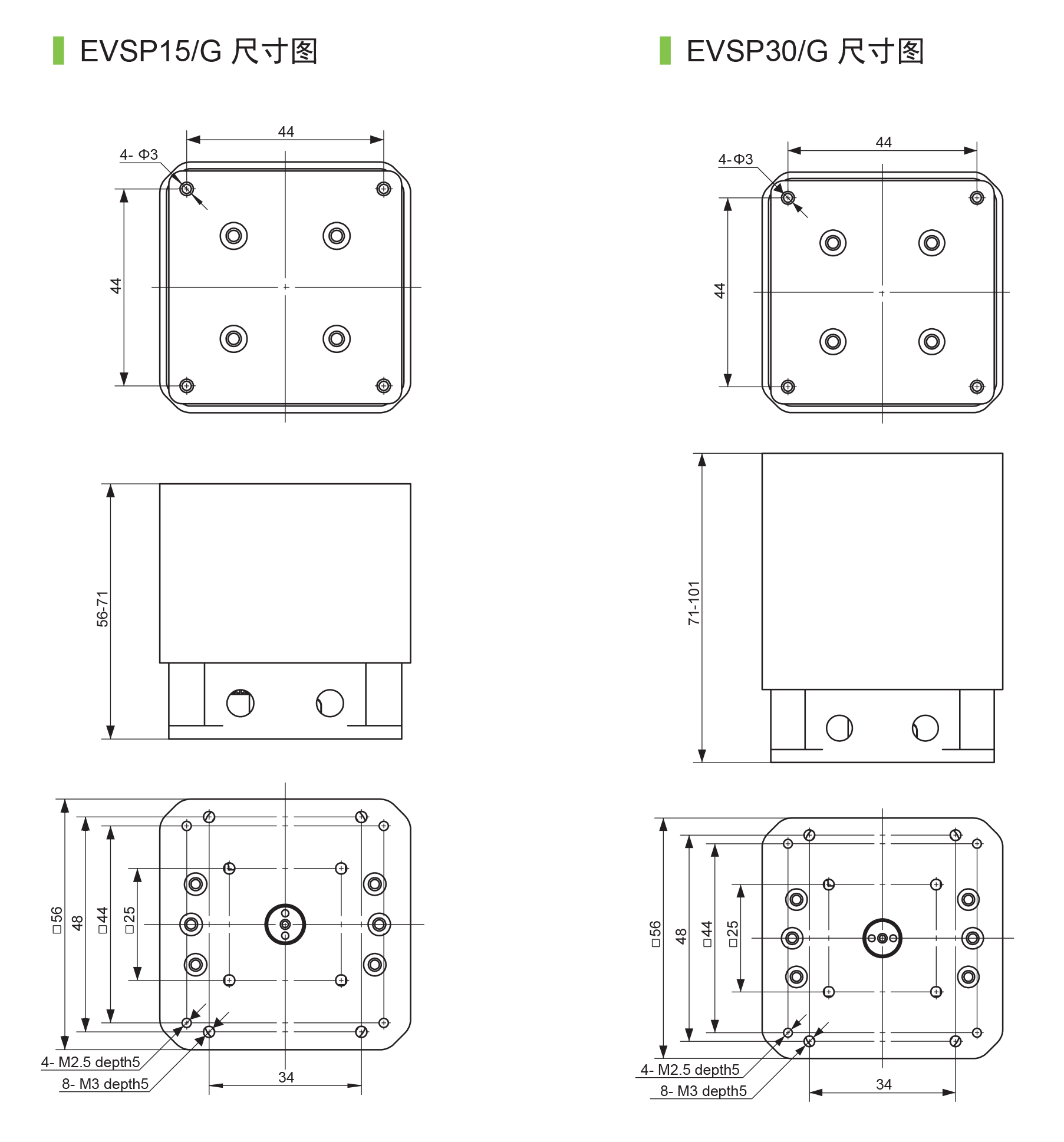

Specifications

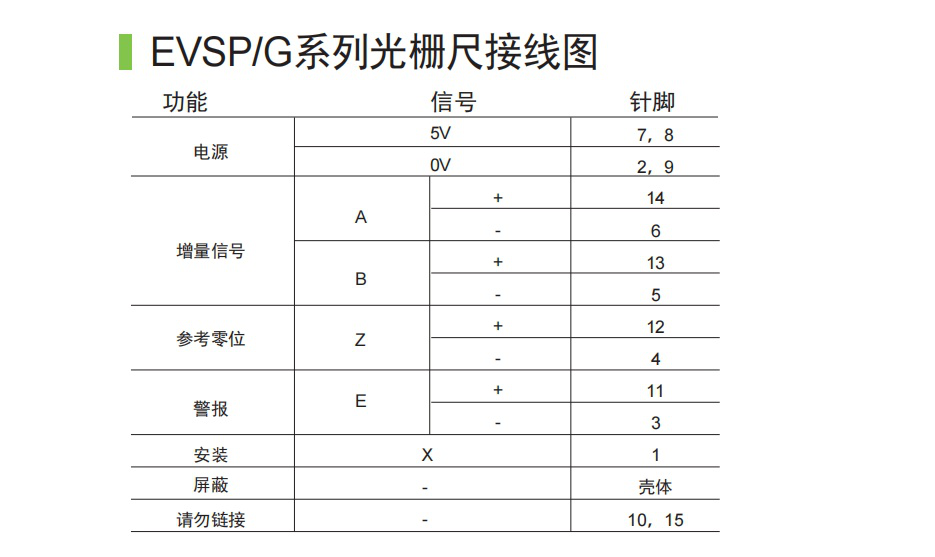

| Parameter | Value |
|---|---|
| Travel Range EVSP15 | 15mm |
| Travel Range EVSP15G | 15mm |
| Travel Range EVSP30 | 30mm |
| Travel Range EVSP30G | 30mm |
| Lead of Screw EVSP15 | 0.635mm |
| Lead of Screw EVSP15G | 0.635mm |
| Lead of Screw EVSP30 | 0.635mm |
| Lead of Screw EVSP30G | 0.635mm |
| Main Material | Aluminum Alloy |
| Surface Treatment | Anodizing |
| Guide Rail | Crossed Roller Guide |
| Maximum Speed | 2mm/s |
| Resolution (8 Subdivisions) EVSP15 | 0.397μm |
| Resolution (8 Subdivisions) EVSP15G | 0.1μm (Optical Scale) |
| Resolution (8 Subdivisions) EVSP30 | 0.397μm |
| Resolution (8 Subdivisions) EVSP30G | 0.1μm (Optical Scale) |
| Repeatability EVSP15 | ±1μm |
| Repeatability EVSP15G | ±0.3μm |
| Repeatability EVSP30 | ±1μm |
| Repeatability EVSP30G | ±0.3μm |
| Drive Motor | 20-line stepper motor |
| Step Angle | 1.8° |
| Central Load | 1kg |
| Positioning Accuracy EVSP15 | -- |
| Positioning Accuracy EVSP15G | ±1μm |
| Positioning Accuracy EVSP30 | -- |
| Positioning Accuracy EVSP30G | ±1μm |
| Control Mode EVSP15 | Open Loop |
| Control Mode EVSP15G | Closed Loop |
| Control Mode EVSP30 | Open Loop |
| Control Mode EVSP30G | Closed Loop |
| Self Weight EVSP15 | 0.31kg |
| Self Weight EVSP15G | 0.33kg |
| Self Weight EVSP30 | 0.33kg |
| Self Weight EVSP30G | 0.57kg |
| Rated current | 0.24A |
