EVSP-45SPG
The EVSP-45SPG is a precision linear stage designed for high-accuracy positioning applications. It features advanced materials and processing techniques to ensure durability and performance.
Save to Favorites
Overview

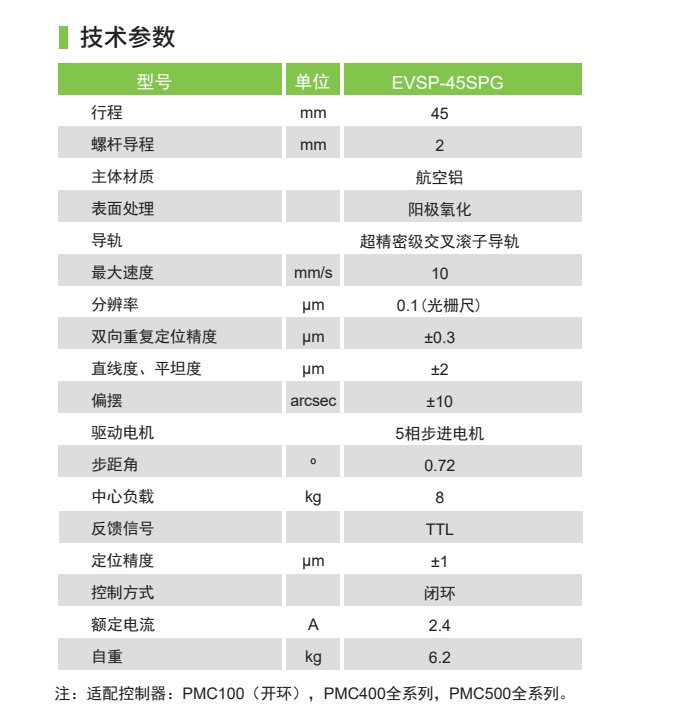

Specifications
| Parameter | Value |
|---|---|
| Travel Range(mm) | 45 |
| Lead(mm) | 2 |
| Main Material | Aerospace Aluminum |
| Surface Treatment | Anodizing |
| Guide | Ultra-precision crossed roller guide |
| Max Speed(mm/s) | 10 |
| Resolution(μm) | 0.1 (Optical Encoder) |
| Bidirectional Repeatability(μm) | ±0.3 |
| Straightness/Flatness(μm) | ±2 |
| Yaw(arcsec) | ±10 |
| Drive Motor | 5-phase stepper motor |
| Step Angle(°) | 0.72 |
| Central Load Capacity(kg) | 8 |
| Feedback Signal | TTL |
| Positioning Accuracy(μm) | ±1 |
| Control Method | Closed-loop |
| Rated Current(A) | 2.4 |
| Weight(kg) | 6.2 |
