EVSL/G系列光栅尺
EVSL/G series optical encoder is a high-precision linear motion device designed for applications requiring precise positioning and smooth operation. It features advanced linear stepper motors and high-resolution encoders.
Save to Favorites
Overview

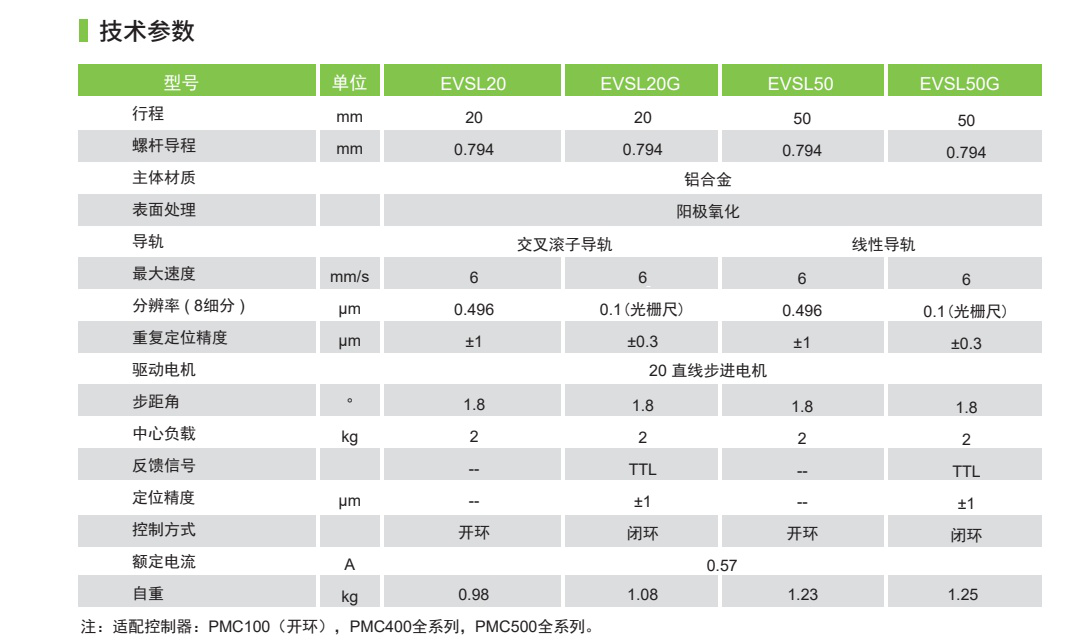

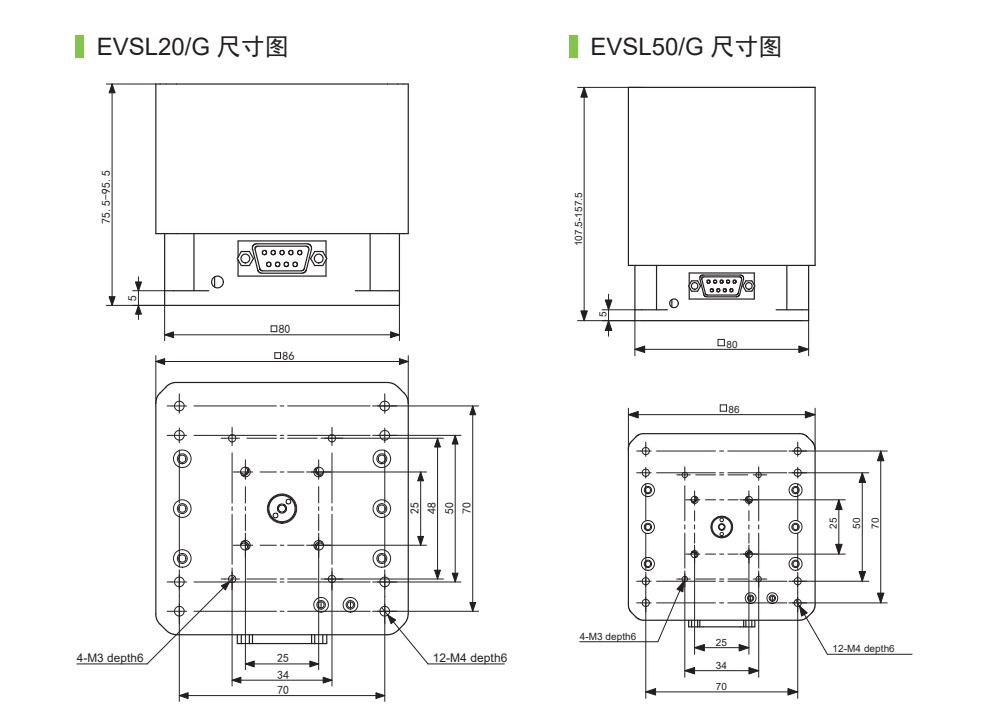

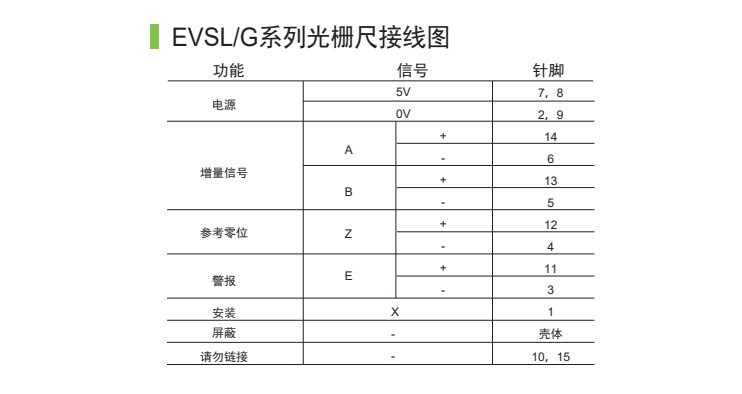

Specifications
| Parameter | Value |
|---|---|
| Travel Range EVSL20 | 20mm |
| Travel Range EVSL50 | 50mm |
| Screw Lead EVSL20 | 0.794mm |
| Screw Lead EVSL50 | 0.794mm |
| Main Material EVSL20 | Aluminum alloy |
| Main Material EVSL50 | Aluminum alloy |
| Surface Treatment EVSL20 | Anodizing |
| Surface Treatment EVSL50 | Anodizing |
| Guide Rail EVSL20 | Cross roller guide |
| Guide Rail EVSL50 | Linear guide |
| Maximum Speed EVSL20 | 6mm/s |
| Maximum Speed EVSL50 | 6mm/s |
| Resolution (Subdivision) EVSL20 | 0.496μm |
| Resolution (Subdivision) EVSL50 | 0.1μm |
| Repeat Positioning Accuracy EVSL20 | ±1μm |
| Repeat Positioning Accuracy EVSL50 | ±0.3μm |
| Drive Motor EVSL20 | 20 linear stepper motor |
| Drive Motor EVSL50 | 20 linear stepper motor |
| Step Angle EVSL20 | 1.8° |
| Step Angle EVSL50 | 1.8° |
| Central Load EVSL20 | 2kg |
| Central Load EVSL50 | 2kg |
| Feedback Signal EVSL20 | TTL |
| Feedback Signal EVSL50 | TTL |
| Positioning Accuracy EVSL20 | -- |
| Positioning Accuracy EVSL50 | ±1μm |
| Control Mode EVSL20 | Open loop |
| Control Mode EVSL50 | Closed loop |
| Rated Current EVSL20 | 0.57A |
| Rated Current EVSL50 | 1.25A |
| Weight EVSL20 | 0.98kg |
| Weight EVSL50 | 1.25kg |
