ETSU Series Precision Linear Stage
ETSU series precision linear stage is designed for high-accuracy positioning applications, featuring a compact structure and reliable performance.
Save to Favorites
Overview

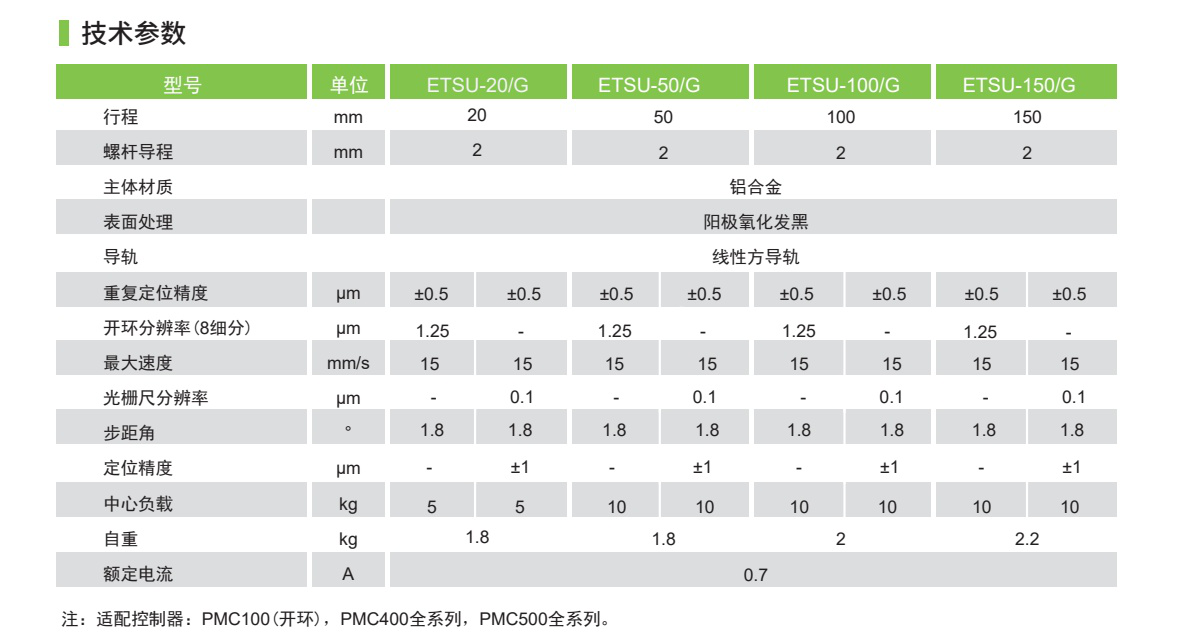

Specifications
| Parameter | Value |
|---|---|
| Travel Range (mm) ETSU-20/G | 20 |
| Travel Range (mm) ETSU-50/G | 50 |
| Travel Range (mm) ETSU-100/G | 100 |
| Travel Range (mm) ETSU-150/G | 150 |
| Screw Lead (mm) | 2 |
| Main Material | Aluminum alloy |
| Surface Treatment | Anodized |
| Guide Rail | Linear guide rail |
| Repeat Positioning Accuracy (μm) | ±0.5 |
| Open Loop Resolution (8 Subdivisions) | 1.25 |
| Maximum Speed (mm/s) | 15 |
| Photoelectric Resolution (μm) | 0.1 |
| Step Angle (°) | 1.8 |
| Positioning Accuracy (mm) | ±1 |
| Central Load (kg) ETSU-20/G | 5 |
| Central Load (kg) ETSU-50/G | 5 |
| Central Load (kg) ETSU-100/G | 10 |
| Central Load (kg) ETSU-150/G | 10 |
| Self Weight (kg) ETSU-20/G | 1.8 |
| Self Weight (kg) ETSU-50/G | 1.8 |
| Self Weight (kg) ETSU-100/G | 2.2 |
| Self Weight (kg) ETSU-150/G | 2.2 |
| Rated Current (A) | 0.7 |
