ETSN-G Series Linear Stage
The ETSN-G series linear stage is a high-precision motion control device designed for industrial applications requiring accurate positioning and smooth linear motion.
Save to Favorites
Overview

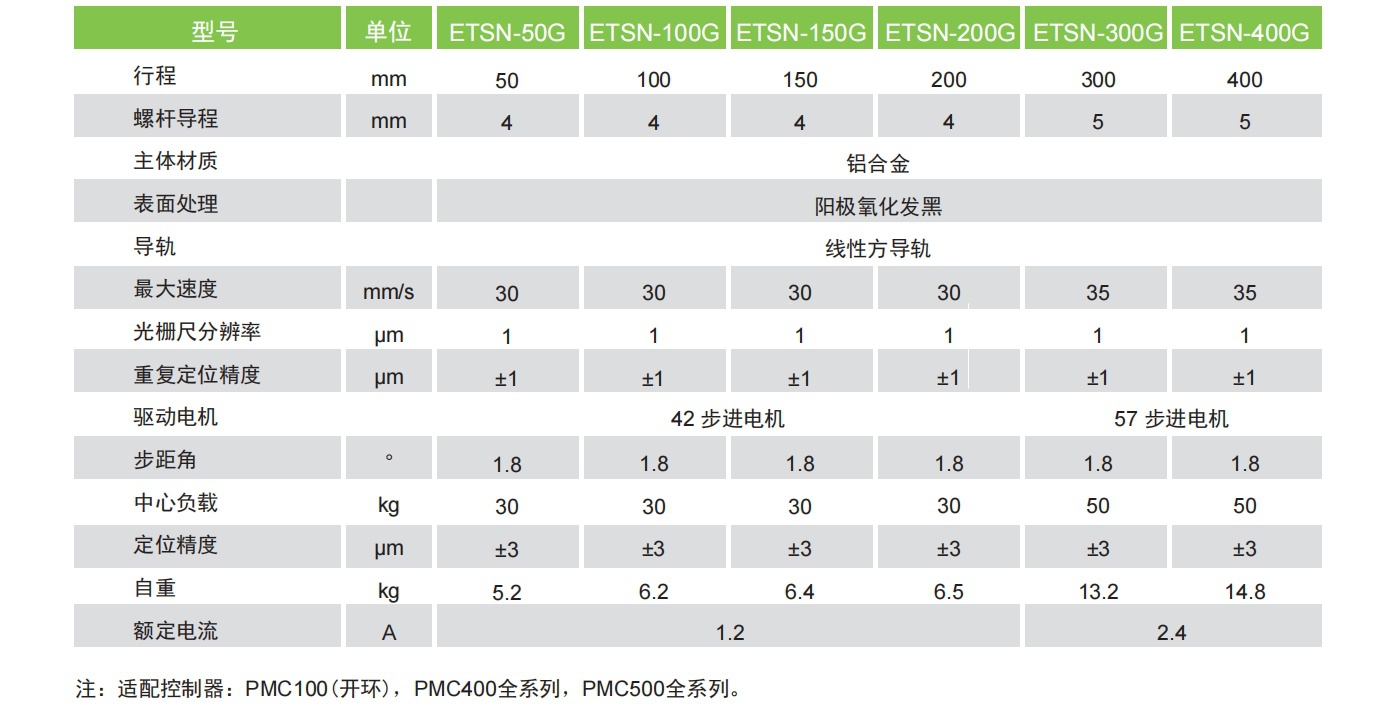

Specifications
| Parameter | Value |
|---|---|
| Travel Range ETSN-50G | 50mm |
| Travel Range ETSN-100G | 100mm |
| Travel Range ETSN-150G | 150mm |
| Travel Range ETSN-200G | 200mm |
| Travel Range ETSN-300G | 300mm |
| Travel Range ETSN-400G | 400mm |
| Lead Screw Pitch ETSN-50G | 4mm |
| Lead Screw Pitch ETSN-100G | 4mm |
| Lead Screw Pitch ETSN-150G | 4mm |
| Lead Screw Pitch ETSN-200G | 4mm |
| Lead Screw Pitch ETSN-300G | 5mm |
| Lead Screw Pitch ETSN-400G | 5mm |
| Material | Aluminum alloy |
| Surface Treatment | Anodized |
| Guide Rail | Linear guide rail |
| Maximum Speed ETSN-50G | 30mm/s |
| Maximum Speed ETSN-100G | 30mm/s |
| Maximum Speed ETSN-150G | 30mm/s |
| Maximum Speed ETSN-200G | 30mm/s |
| Maximum Speed ETSN-300G | 35mm/s |
| Maximum Speed ETSN-400G | 35mm/s |
| Encoder Resolution | 1μm |
| Repeatability | ±1μm |
| Drive Motor ETSN-50G | 42-step motor |
| Drive Motor ETSN-100G | 42-step motor |
| Drive Motor ETSN-150G | 42-step motor |
| Drive Motor ETSN-200G | 42-step motor |
| Drive Motor ETSN-300G | 57-step motor |
| Drive Motor ETSN-400G | 57-step motor |
| Step Angle | 1.8° |
| Central Load ETSN-50G | 30kg |
| Central Load ETSN-100G | 30kg |
| Central Load ETSN-150G | 30kg |
| Central Load ETSN-200G | 30kg |
| Central Load ETSN-300G | 50kg |
| Central Load ETSN-400G | 50kg |
| Positioning Accuracy | ±3μm |
| Weight ETSN-50G | 5.2kg |
| Weight ETSN-100G | 6.4kg |
| Weight ETSN-150G | 6.6kg |
| Weight ETSN-200G | 6.6kg |
| Weight ETSN-300G | 13.2kg |
| Weight ETSN-400G | 14.8kg |
| Rated Current ETSN-50G | 2.4A |
| Rated Current ETSN-100G | 2.4A |
| Rated Current ETSN-150G | 2.4A |
| Rated Current ETSN-200G | 2.4A |
| Rated Current ETSN-300G | 2.4A |
| Rated Current ETSN-400G | 2.4A |
