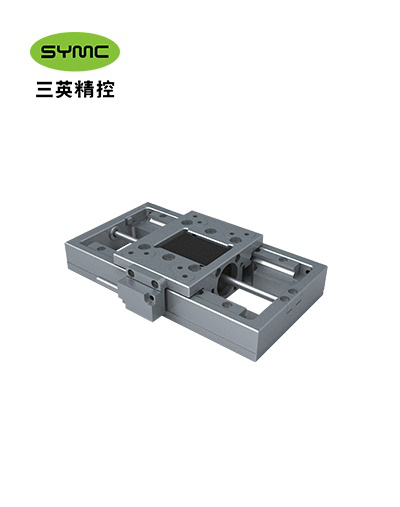

ETSM/G Series Precision Motorized Stages
ETSM/G series precision motorized stages are designed for high-accuracy linear motion control, featuring aluminum alloy construction and anodized surface treatment for durability.
Save to Favorites
Overview

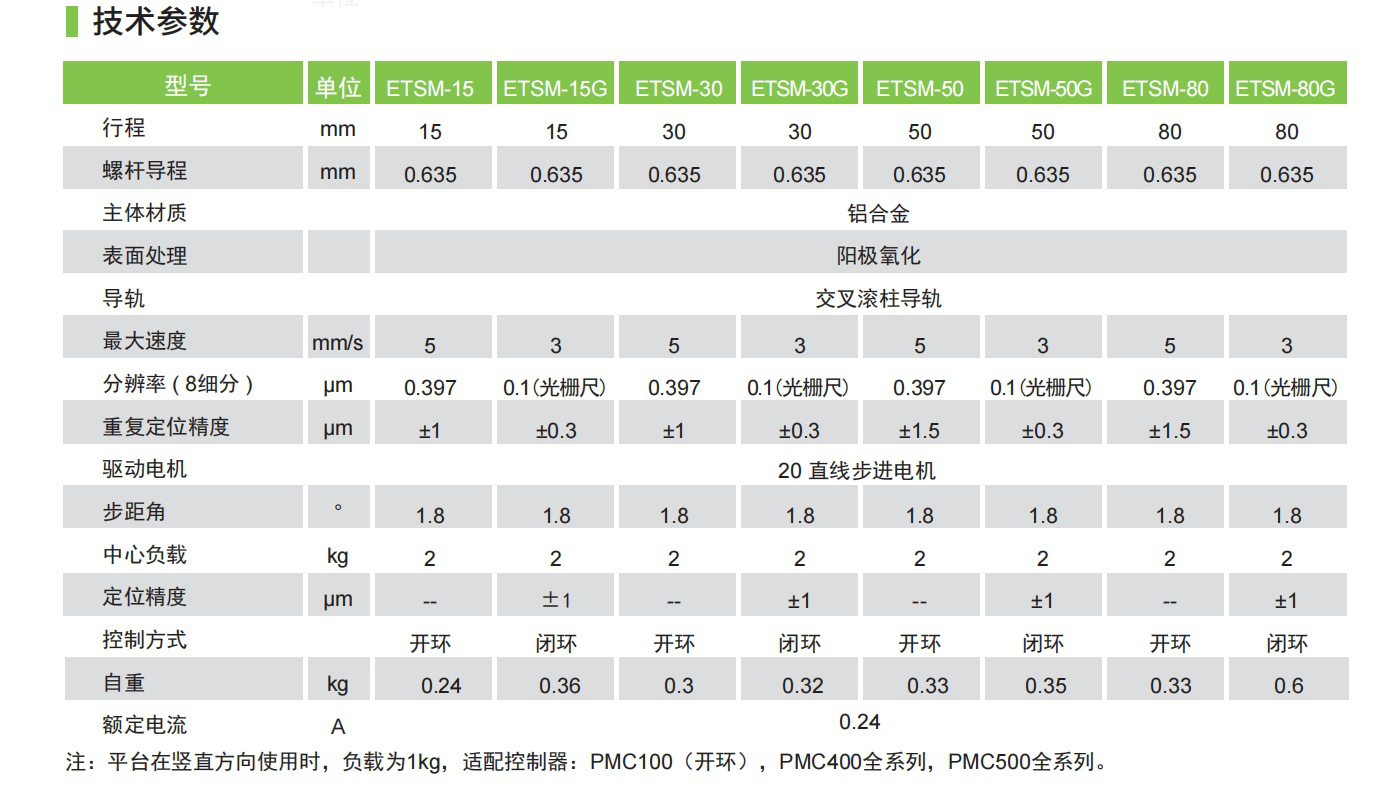

Specifications
| Parameter | Value |
|---|---|
| Travel Range ETSM-15 | 15mm |
| Travel Range ETSM-15G | 15mm |
| Travel Range ETSM-30 | 30mm |
| Travel Range ETSM-30G | 30mm |
| Travel Range ETSM-50 | 50mm |
| Travel Range ETSM-50G | 50mm |
| Travel Range ETSM-80 | 80mm |
| Travel Range ETSM-80G | 80mm |
| Lead of Screw ETSM-15 | 0.635mm |
| Lead of Screw ETSM-15G | 0.635mm |
| Lead of Screw ETSM-30 | 0.635mm |
| Lead of Screw ETSM-30G | 0.635mm |
| Lead of Screw ETSM-50 | 0.635mm |
| Lead of Screw ETSM-50G | 0.635mm |
| Lead of Screw ETSM-80 | 0.635mm |
| Lead of Screw ETSM-80G | 0.635mm |
| Main Material | Aluminum Alloy |
| Surface Treatment | Anodized |
| Guide | Crossed Roller Guide |
| Maximum Speed | 5mm/s |
| Resolution (8 Subdivisions) ETSM-15 | 0.397μm |
| Resolution (8 Subdivisions) ETSM-15G | 0.1μm |
| Resolution (8 Subdivisions) ETSM-30 | 0.397μm |
| Resolution (8 Subdivisions) ETSM-30G | 0.1μm |
| Resolution (8 Subdivisions) ETSM-50 | 0.397μm |
| Resolution (8 Subdivisions) ETSM-50G | 0.1μm |
| Resolution (8 Subdivisions) ETSM-80 | 0.397μm |
| Resolution (8 Subdivisions) ETSM-80G | 0.1μm |
| Repeatability ETSM-15 | ±1μm |
| Repeatability ETSM-15G | ±0.3μm |
| Repeatability ETSM-30 | ±1μm |
| Repeatability ETSM-30G | ±0.3μm |
| Repeatability ETSM-50 | ±1μm |
| Repeatability ETSM-50G | ±0.3μm |
| Repeatability ETSM-80 | ±1μm |
| Repeatability ETSM-80G | ±0.3μm |
| Drive Motor | 20 Linear Stepper Motor |
| Step Angle | 1.8° |
| Central Load | 2kg |
| Positioning Accuracy | ±2μm |
| Control Mode | Open Loop/Closed Loop |
| Self Weight ETSM-15 | 0.24kg |
| Self Weight ETSM-15G | 0.24kg |
| Self Weight ETSM-30 | 0.24kg |
| Self Weight ETSM-30G | 0.24kg |
| Self Weight ETSM-50 | 0.24kg |
| Self Weight ETSM-50G | 0.24kg |
| Self Weight ETSM-80 | 0.24kg |
| Self Weight ETSM-80G | 0.24kg |
| Rated current | 0.24A |
