ETSL/G Series Motorized Linear Stage
ETSL/G Series Motorized Linear Stage is a high-precision positioning device designed for applications requiring accurate linear motion control. It features a compact design, high resolution, and reliable performance.
Save to Favorites
Overview

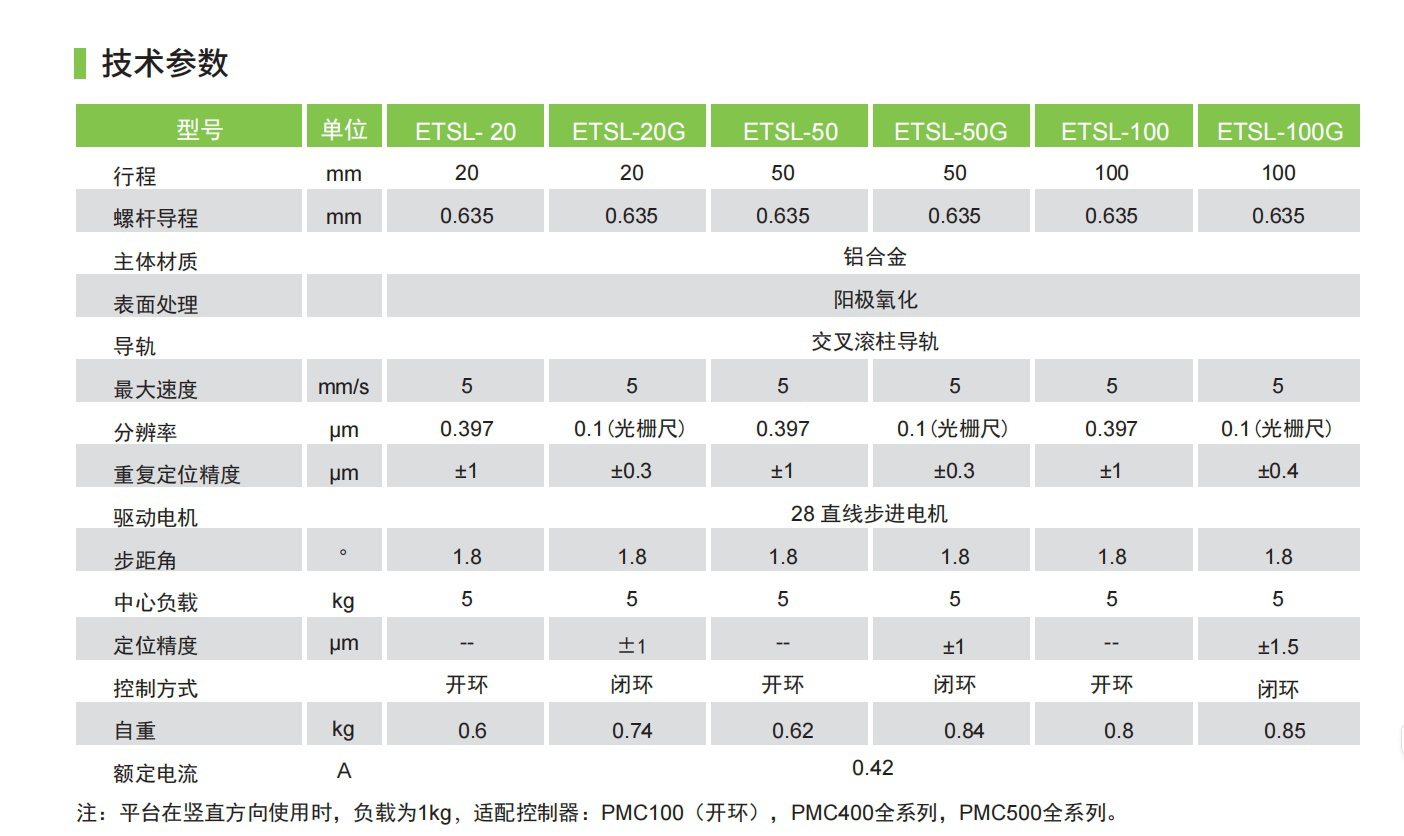

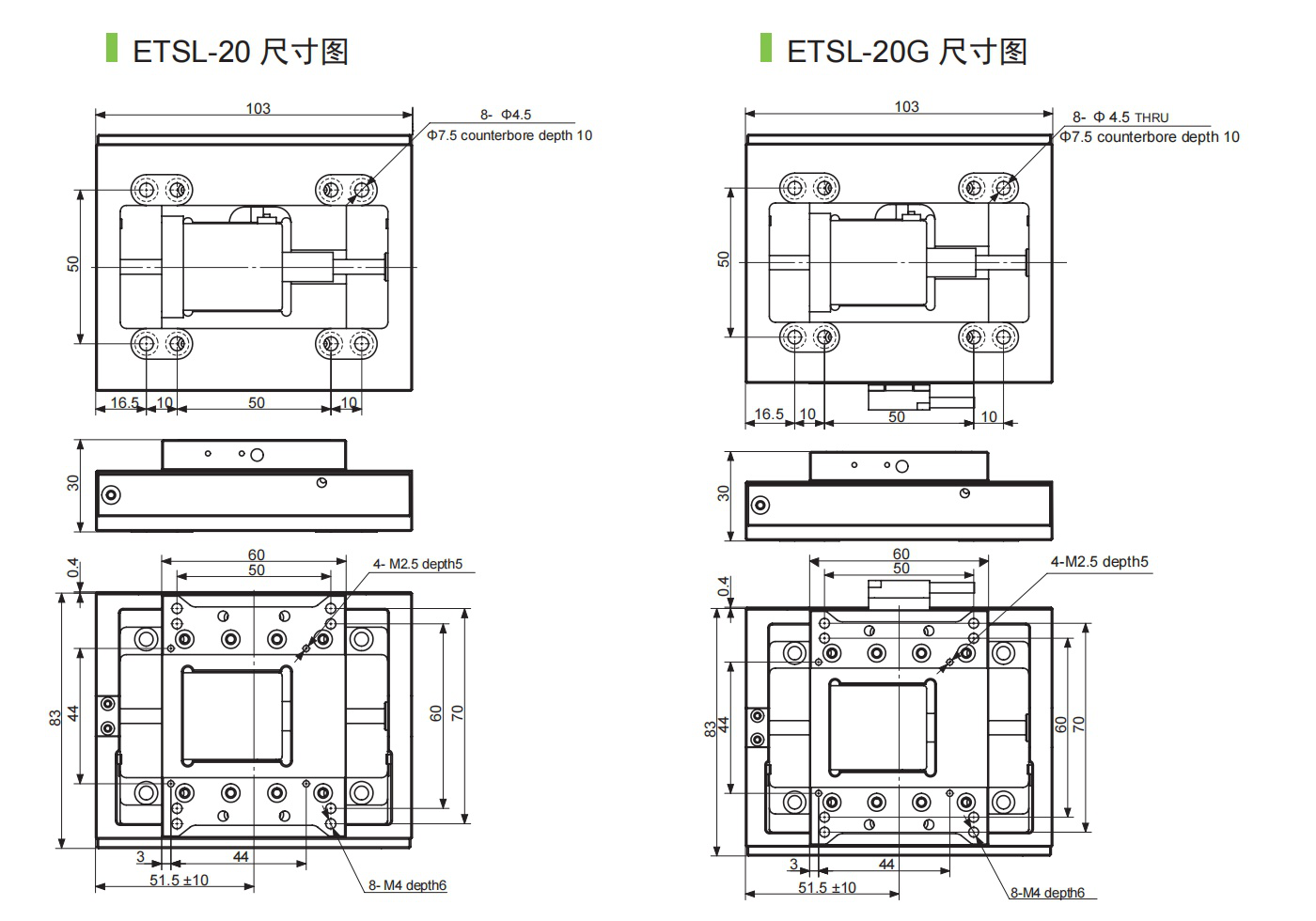

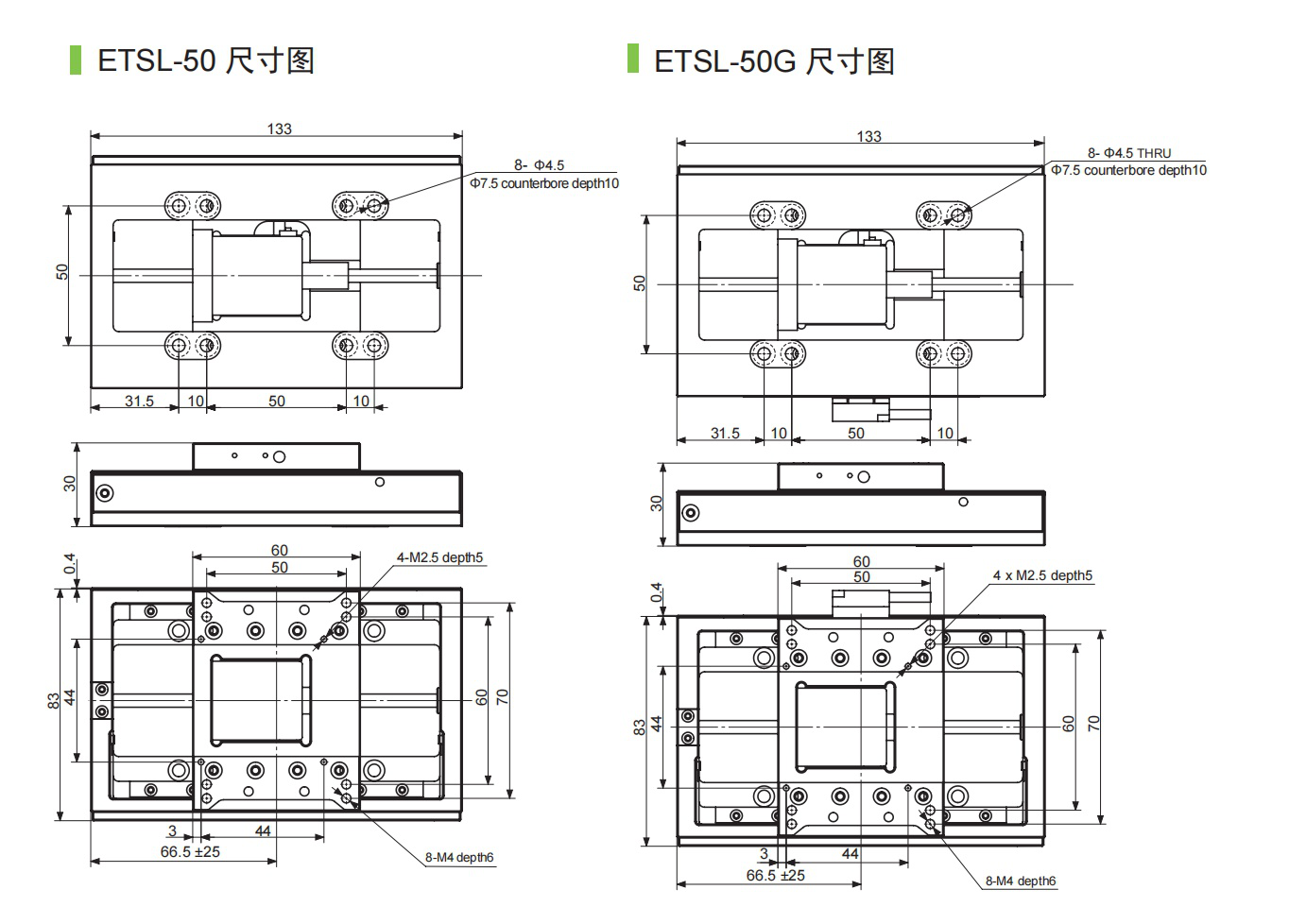

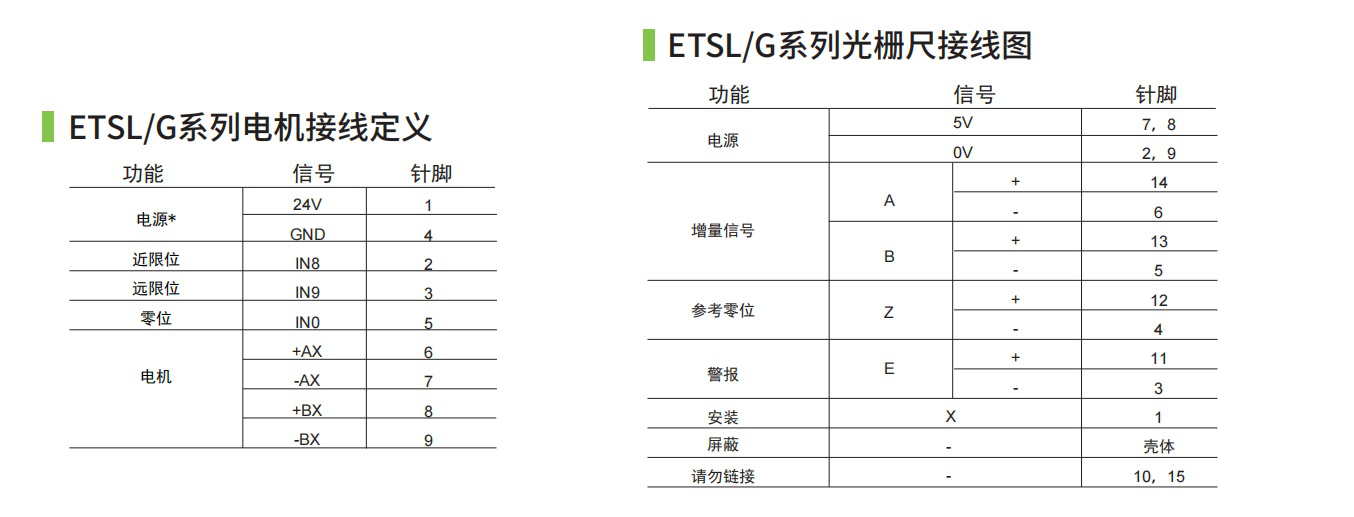

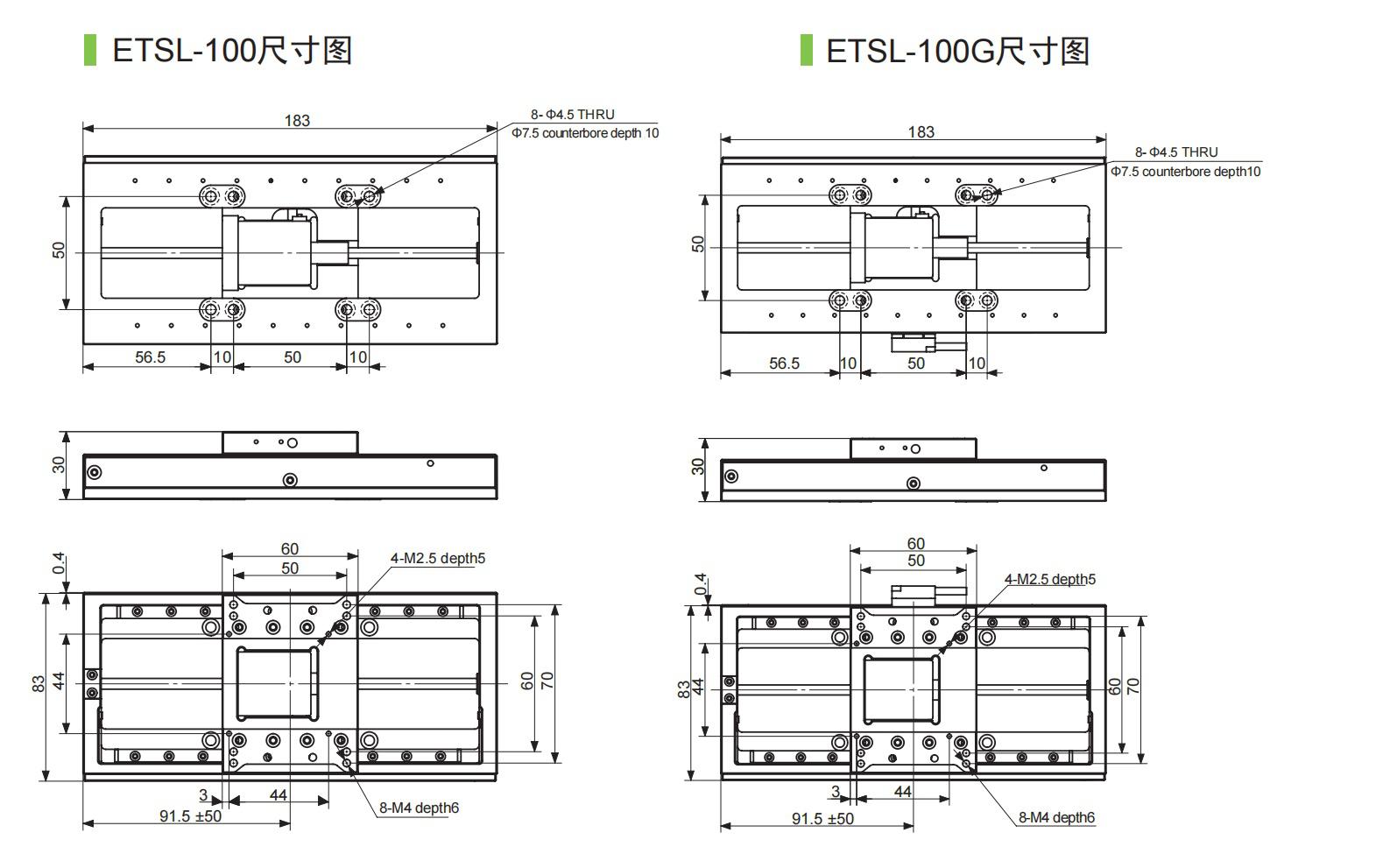

Specifications
| Parameter | Value |
|---|---|
| Travel Range ETSL-20 | 20mm |
| Travel Range ETSL-20G | 20mm |
| Travel Range ETSL-50 | 50mm |
| Travel Range ETSL-50G | 50mm |
| Travel Range ETSL-100 | 100mm |
| Travel Range ETSL-100G | 100mm |
| Lead Screw Pitch ETSL-20 | 0.635mm |
| Lead Screw Pitch ETSL-20G | 0.635mm |
| Lead Screw Pitch ETSL-50 | 0.635mm |
| Lead Screw Pitch ETSL-50G | 0.635mm |
| Lead Screw Pitch ETSL-100 | 0.635mm |
| Lead Screw Pitch ETSL-100G | 0.635mm |
| Material | Aluminum alloy |
| Surface Treatment | Anodized |
| Guide | Crossed roller guide |
| Maximum Speed | 5mm/s |
| Resolution ETSL-20 | 0.397μm |
| Resolution ETSL-20G | 0.1μm (optical scale) |
| Resolution ETSL-50 | 0.397μm |
| Resolution ETSL-50G | 0.1μm (optical scale) |
| Resolution ETSL-100 | 0.397μm |
| Resolution ETSL-100G | 0.1μm (optical scale) |
| Positioning Accuracy ETSL-20 | ±1μm |
| Positioning Accuracy ETSL-20G | ±0.3μm |
| Positioning Accuracy ETSL-50 | ±1μm |
| Positioning Accuracy ETSL-50G | ±0.3μm |
| Positioning Accuracy ETSL-100 | ±1μm |
| Positioning Accuracy ETSL-100G | ±0.4μm |
| Drive Motor | 28-step linear motor |
| Step Angle | 1.8° |
| Central Load | 5kg |
| Control Mode ETSL-20 | Open loop |
| Control Mode ETSL-20G | Closed loop |
| Control Mode ETSL-50 | Open loop |
| Control Mode ETSL-50G | Closed loop |
| Control Mode ETSL-100 | Open loop |
| Control Mode ETSL-100G | Closed loop |
| Rated current | 0.42A |
