ETS-RG Series Motorized Linear Stage
The ETS-RG series motorized linear stage is designed for precision positioning applications, featuring high accuracy, repeatability, and smooth motion control.
Save to Favorites
Overview

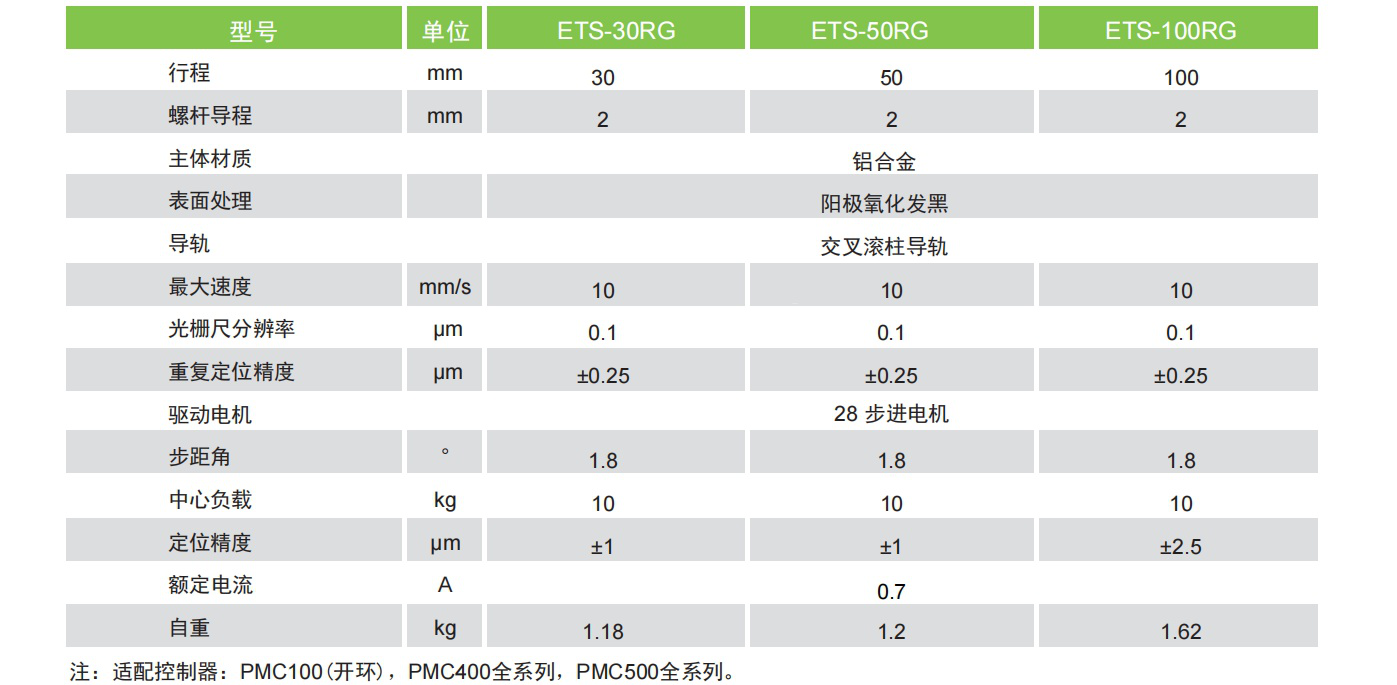

Specifications
| Parameter | Value |
|---|---|
| Travel Range ETS-30RG | 30mm |
| Travel Range ETS-50RG | 50mm |
| Travel Range ETS-100RG | 100mm |
| Lead Screw Pitch ETS-30RG | 2mm |
| Lead Screw Pitch ETS-50RG | 2mm |
| Lead Screw Pitch ETS-100RG | 2mm |
| Material | Aluminum alloy |
| Surface Treatment | Anodized black |
| Guide Rail | Crossed roller guide |
| Maximum Speed | 10mm/s |
| Encoder Resolution | 0.1μm |
| Repeatability ETS-30RG | ±0.25μm |
| Repeatability ETS-50RG | ±0.25μm |
| Repeatability ETS-100RG | ±0.25μm |
| Drive Motor | 28-stepper motor |
| Step Angle | 1.8° |
| Central Load | 10kg |
| Positioning Accuracy ETS-30RG | ±1μm |
| Positioning Accuracy ETS-50RG | ±1μm |
| Positioning Accuracy ETS-100RG | ±2.5μm |
| Rated current | 0.7A |
| Weight ETS-30RG | 1.18kg |
| Weight ETS-50RG | 1.2kg |
| Weight ETS-100RG | 1.62kg |
