ERUA200 & ERUA300
High-precision direct drive rotary tables designed for applications requiring exceptional accuracy and stability.
Save to Favorites
Overview

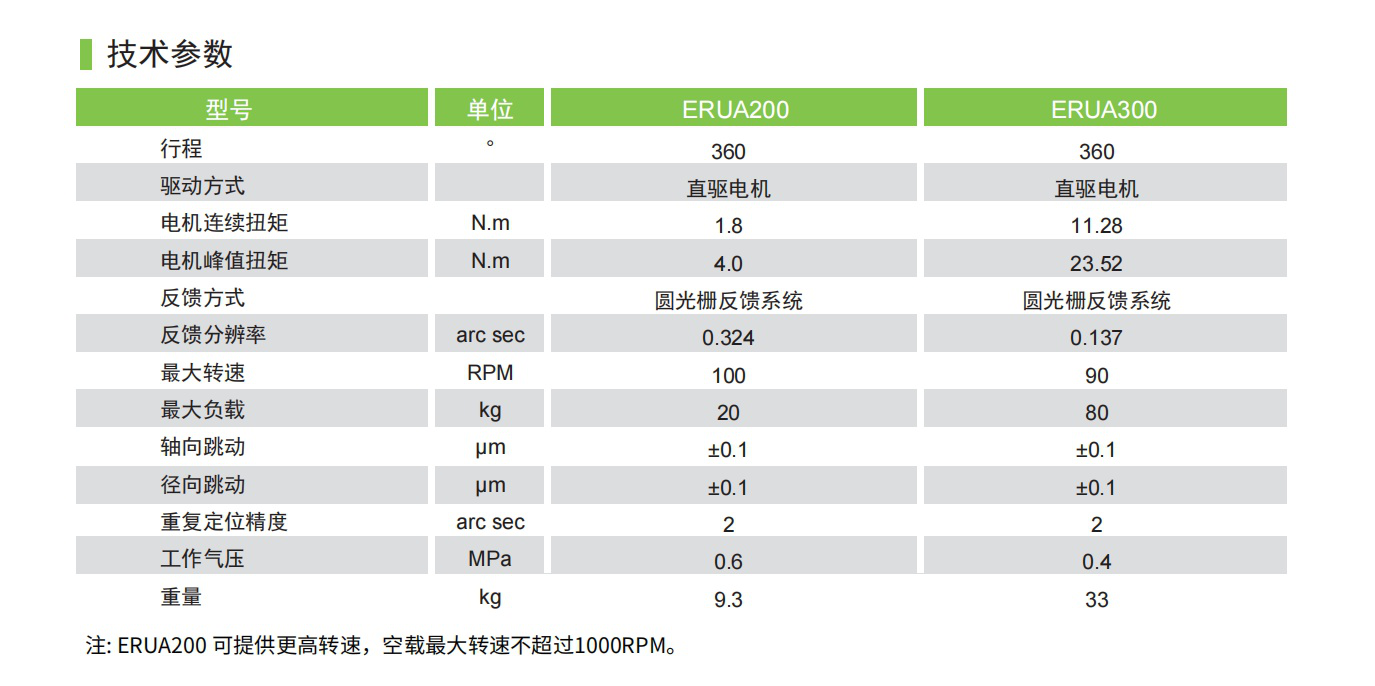

Specifications
| Parameter | Value |
|---|---|
| Travel (°) ERUA200 | 360 |
| Travel (°) ERUA300 | 360 |
| Drive Type ERUA200 | Direct drive motor |
| Drive Type ERUA300 | Direct drive motor |
| Motor Continuous Torque (N·m) ERUA200 | 1.8 |
| Motor Continuous Torque (N·m) ERUA300 | 11.28 |
| Motor Peak Torque (N·m) ERUA200 | 4.0 |
| Motor Peak Torque (N·m) ERUA300 | 23.52 |
| Feedback Type ERUA200 | Optical encoder system |
| Feedback Type ERUA300 | Optical encoder system |
| Feedback Resolution (arc sec) ERUA200 | 0.324 |
| Feedback Resolution (arc sec) ERUA300 | 0.137 |
| Max Speed (RPM) ERUA200 | 100 |
| Max Speed (RPM) ERUA300 | 90 |
| Max Load (kg) ERUA200 | 20 |
| Max Load (kg) ERUA300 | 80 |
| Axial Runout (μm) ERUA200 | ±0.1 |
| Axial Runout (μm) ERUA300 | ±0.1 |
| Radial Runout (μm) ERUA200 | ±0.1 |
| Radial Runout (μm) ERUA300 | ±0.1 |
| Repeatability (arc sec) ERUA200 | 2 |
| Repeatability (arc sec) ERUA300 | 2 |
| Working Air Pressure (MPa) ERUA200 | 0.6 |
| Working Air Pressure (MPa) ERUA300 | 0.4 |
| Weight (kg) ERUA200 | 9.3 |
| Weight (kg) ERUA300 | 33 |
Applications
Key Features
Datasheet
