ERTA200 is a high-precision rotary table designed for applications requiring accurate positioning and rotation. It features a direct drive motor and a circular grating feedback system, ensuring exceptional precision and reliability.

Request a Quote Download Datasheet
Save to Favorites Save to Favorites

Overview

ERTA200 is a high-precision rotary table designed for applications requiring accurate positioning and rotation. It features a direct drive motor and a circular grating feedback system, ensuring exceptional precision and reliability.

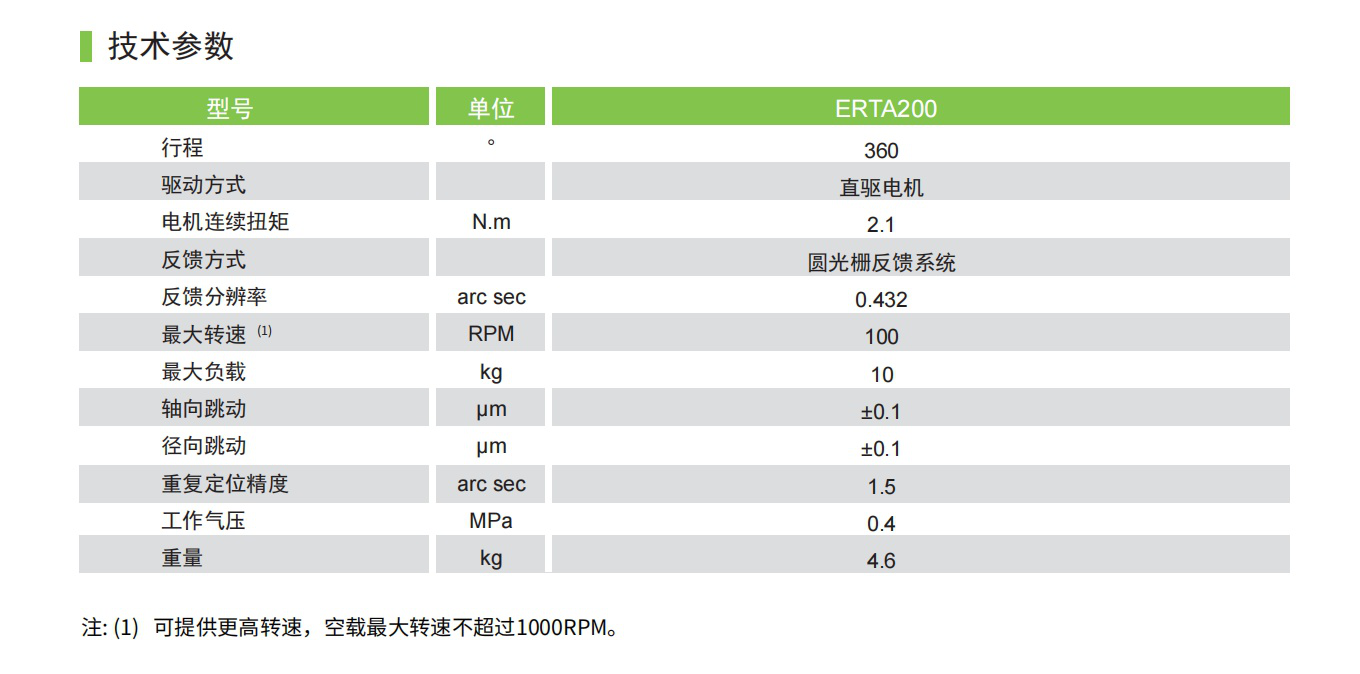

Specifications

ParameterValue
Motor Continuous Torque (N.m)2.1
Feedback ModeCircular Grating Feedback System
Feedback Resolution (arc sec)0.432arc sec
Max Speed (RPM)100
Max Load (kg)10kg
Axial Runout (μm)±0.1μm
Radial Runout (μm)±0.1μm
Repeat Positioning Accuracy (arc sec)1.5arc sec
Working Air Pressure (MPa)0.4MPa
Weight (kg)4.6kg

Applications

1. Precision machining 2. Optical inspection systems 3. Semiconductor manufacturing 4. Robotics

Key Features

1. High precision with 0.432 arc sec feedback resolution 2. Direct drive motor for smooth operation 3. Compact design with a diameter of 200mm 4. High load capacity up to 10kg 5. Suitable for high-speed rotation up to 100 RPM
