EASP Series Precision Rotation Stage
EASP series precision rotary stages are designed for high-precision angular positioning applications. They feature a compact design, high resolution, and smooth operation, making them ideal for various industrial and scientific uses.
Save to Favorites
Overview
Specifications

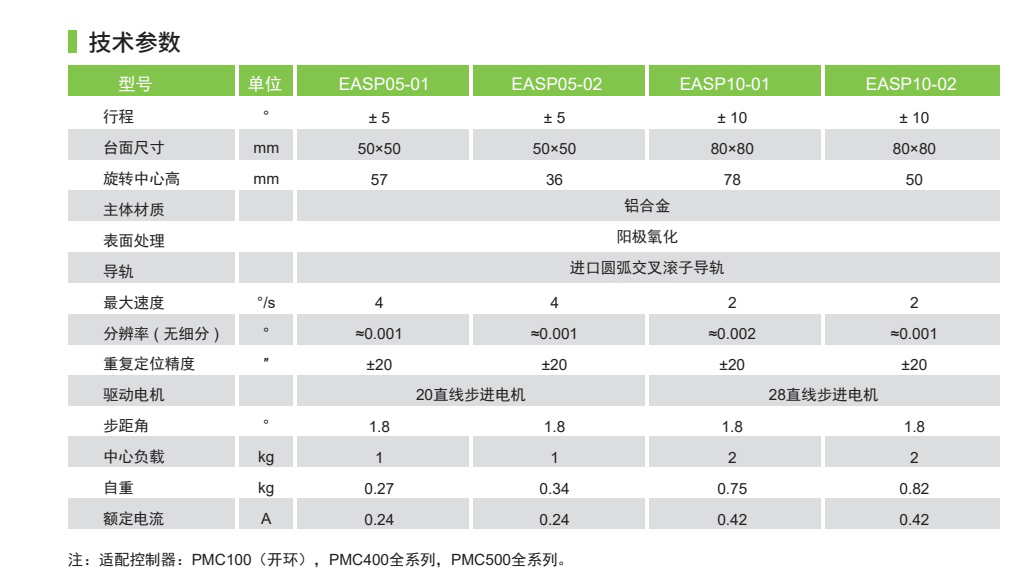

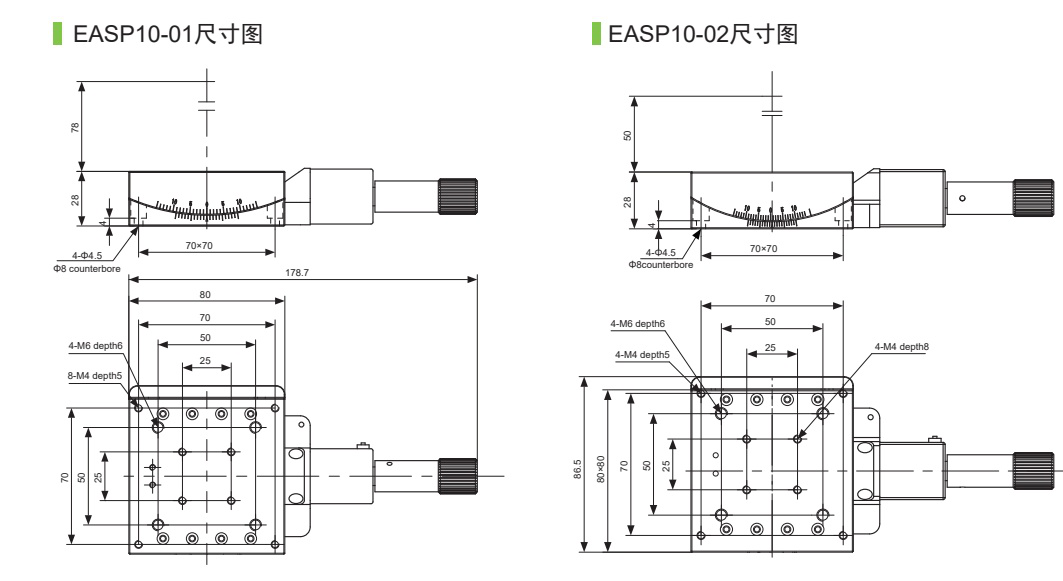

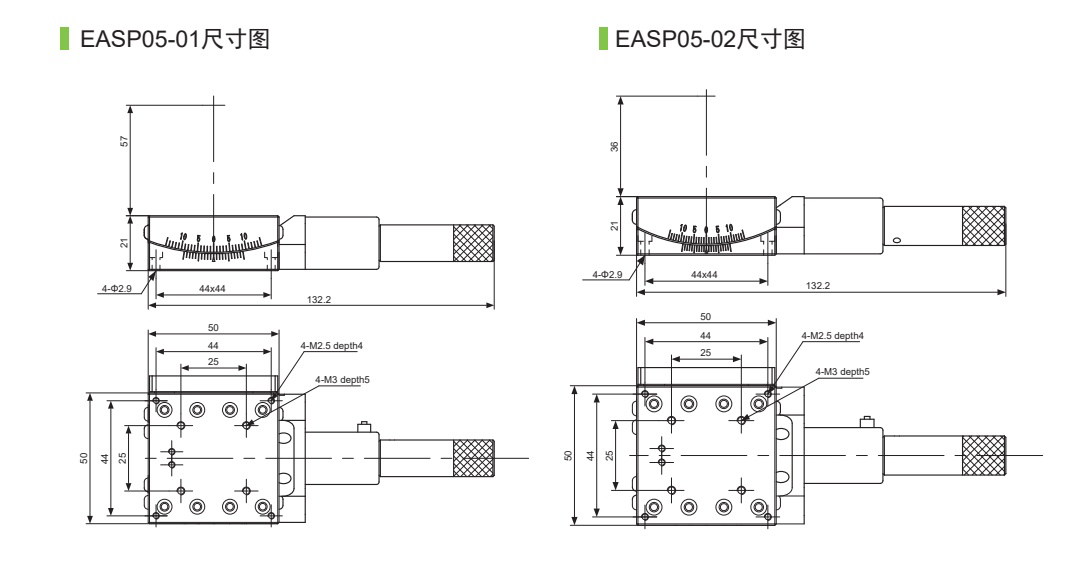

| Parameter | Value |
|---|---|
| Travel Range (°) EASP05-01 | ±5° |
| Travel Range (°) EASP05-02 | ±5° |
| Travel Range (°) EASP10-01 | ±10° |
| Travel Range (°) EASP10-02 | ±10° |
| Platform Size (mm) EASP05-01 | 50×50 |
| Platform Size (mm) EASP05-02 | 50×50 |
| Platform Size (mm) EASP10-01 | 80×80 |
| Platform Size (mm) EASP10-02 | 80×80 |
| Rotation Center Height (mm) EASP05-01 | 57mm |
| Rotation Center Height (mm) EASP05-02 | 36mm |
| Rotation Center Height (mm) EASP10-01 | 78mm |
| Rotation Center Height (mm) EASP10-02 | 50mm |
| Main Material | Aluminum Alloy |
| Maximum Speed (°/s) | 4 |
| Resolution (°) EASP05-01 | ≈0.001° |
| Resolution (°) EASP05-02 | ≈0.001° |
| Resolution (°) EASP10-01 | ≈0.002° |
| Resolution (°) EASP10-02 | ≈0.001° |
| Drive Motor EASP05-01 | 20-line stepper motor |
| Drive Motor EASP05-02 | 20-line stepper motor |
| Drive Motor EASP10-01 | 28-line stepper motor |
| Drive Motor EASP10-02 | 28-line stepper motor |
| Central Load (kg) | 1kg |
| Weight (kg) EASP05-01 | 0.27kg |
| Weight (kg) EASP05-02 | 0.34kg |
| Weight (kg) EASP10-01 | 0.75kg |
| Weight (kg) EASP10-02 | 0.42kg |
| Rated Current (A) | 2A |
