ERSP300H/ERSP300HP Precision Rotary Table
The ERSP300H/ERSP300HP is a high-precision rotary table designed for applications requiring accurate positioning and rotation. It features advanced technology and robust construction, making it suitable for various industrial and scientific uses.
Save to Favorites
Overview

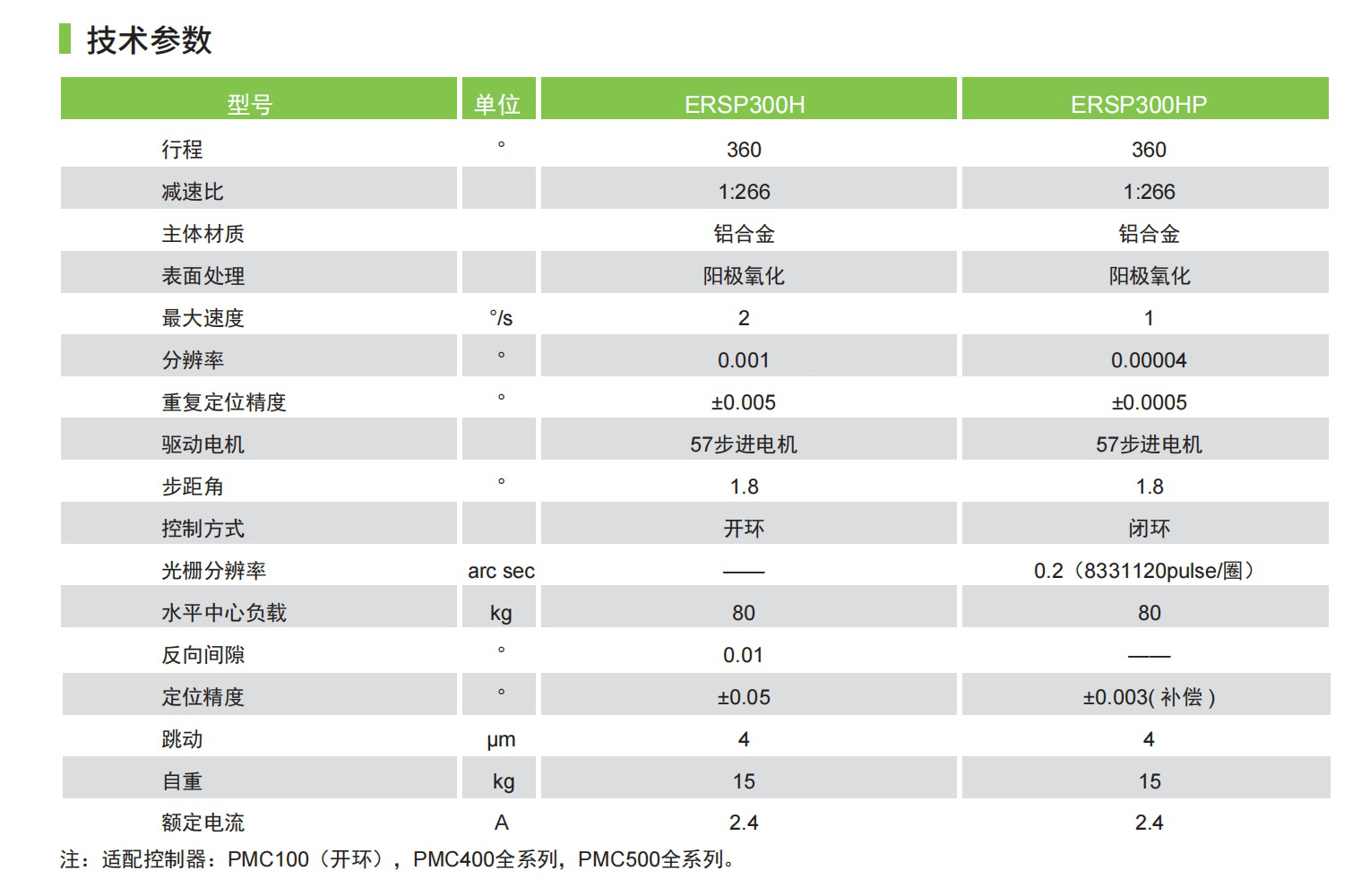

Specifications
| Parameter | Value |
|---|---|
| Travel (°) | 360 |
| Reduction Ratio | 1:266 |
| Main Material | Aluminum alloy |
| Surface Treatment | Anodizing |
| Max Speed (°/s) | ERSP300H: 2, ERSP300HP: 1 |
| Resolution (°) | ERSP300H: 0.001, ERSP300HP: 0.00004 |
| Repeat Positioning Accuracy (°) | ERSP300H: ±0.005, ERSP300HP: ±0.0005 |
| Drive Motor | 57 stepper motor |
| Step Angle (°) | 1.8 |
| Control Mode | ERSP300H: Open-loop, ERSP300HP: Closed-loop |
| Grating Resolution (arc sec) | ERSP300H: —, ERSP300HP: 0.2 (8331120pulse/rev) |
| Horizontal Center Load (kg) | 80 |
| Backlash (°) | ERSP300H: 0.01, ERSP300HP: — |
| Positioning Accuracy (°) | ERSP300H: ±0.05, ERSP300HP: ±0.003 (compensated) |
| Runout (μm) | 4 |
| Weight (kg) | ERSP300H: 15, ERSP300HP: 15 |
| Rated Current (A) | 2.4 |
Applications
Key Features
Datasheet
