PPS-70LM Linear Motor Stage
The PPS-70LM linear motor stage is a high-precision motion platform designed for applications requiring accurate positioning and smooth operation.
Save to Favorites
Overview

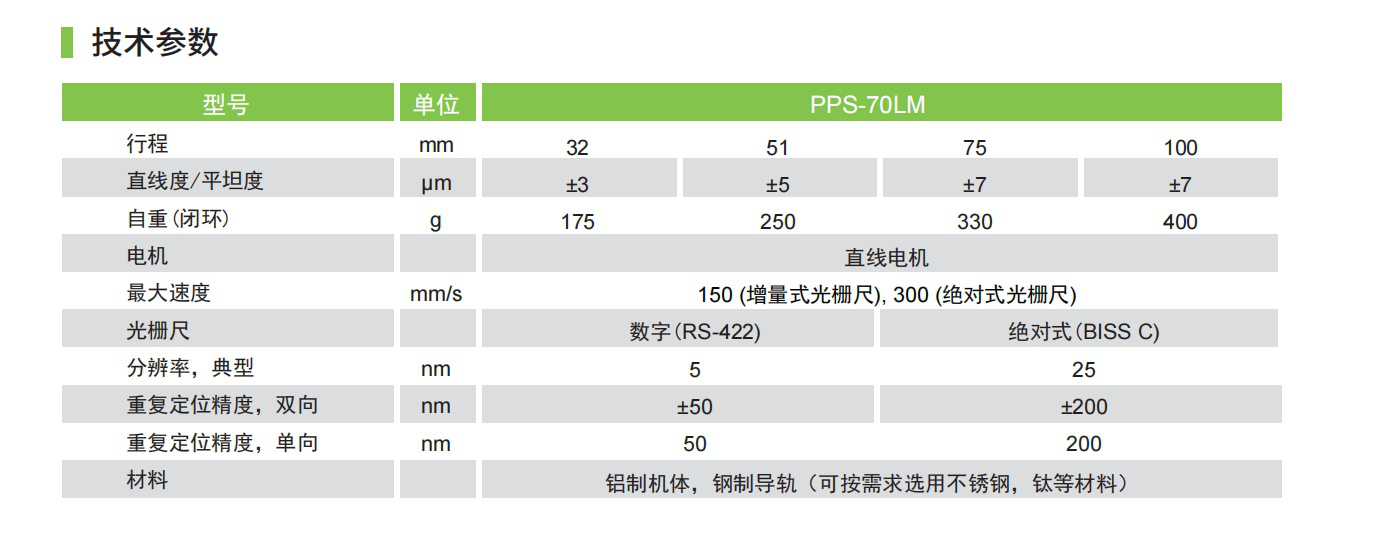

Specifications
| Parameter | Value |
|---|---|
| Travel Range 32mm | 32 |
| Travel Range 51mm | 51 |
| Travel Range 75mm | 75 |
| Travel Range 100mm | 100 |
| Straightness/Flatness 32mm | ±3μm |
| Straightness/Flatness 51mm | ±5μm |
| Straightness/Flatness 75mm | ±7μm |
| Straightness/Flatness 100mm | ±7μm |
| Weight (Closed Loop) 32mm | 175g |
| Weight (Closed Loop) 51mm | 250g |
| Weight (Closed Loop) 75mm | 330g |
| Weight (Closed Loop) 100mm | 400g |
| Motor | Linear Motor |
| Maximum Speed | 150 (Incremental Encoder), 300 (Absolute Encoder) mm/s |
| Encoder | Digital (RS-422), Absolute (BiSS C) |
| Resolution | 5nm |
| Repeatability (Bidirectional) | ±50nm |
| Repeatability (Unidirectional) | 50nm |
| Material | Aluminum body, steel guide (optional stainless steel or titanium) |
