PPS-50LM Linear Motor Stage
The PPS-50LM Linear Motor Stage is a high-precision motion control device designed for applications requiring accurate positioning and smooth linear motion.
Save to Favorites
Overview

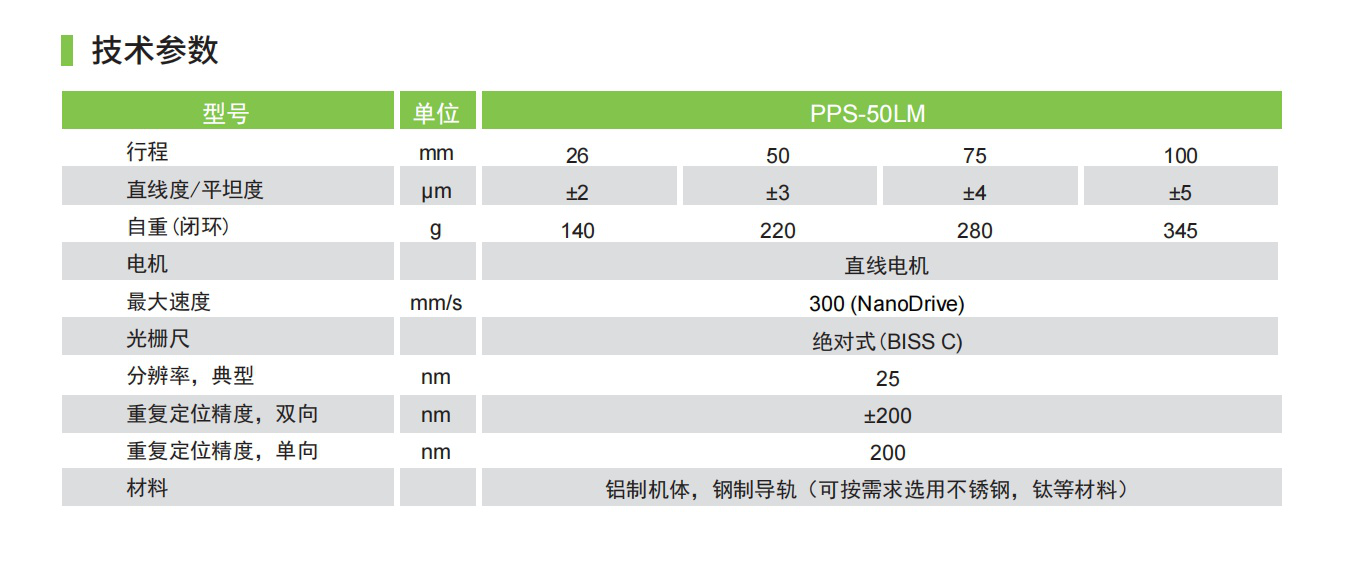

Specifications
| Parameter | Value |
|---|---|
| Travel Range (mm) 26 | 26 |
| Travel Range (mm) 50 | 50 |
| Travel Range (mm) 75 | 75 |
| Travel Range (mm) 100 | 100 |
| Straightness/Flatness (μm) 26 | ±2 |
| Straightness/Flatness (μm) 50 | ±3 |
| Straightness/Flatness (μm) 75 | ±4 |
| Straightness/Flatness (μm) 100 | ±5 |
| Weight (g) 26 | 140 |
| Weight (g) 50 | 220 |
| Weight (g) 75 | 280 |
| Weight (g) 100 | 345 |
| Motor | Linear Motor |
| Max Speed (mm/s) | 300 (NanoDrive) |
| Encoder | Absolute (BiSS C) |
| Resolution (nm) | 25 |
| Repeatability, Bidirectional (nm) | ±200 |
| Repeatability, Unidirectional (nm) | 200 |
| Material | Aluminum body, steel guide rail (optional stainless steel, titanium material) |
