NS-ZT20 Series Piezoelectric Ceramic Actuator

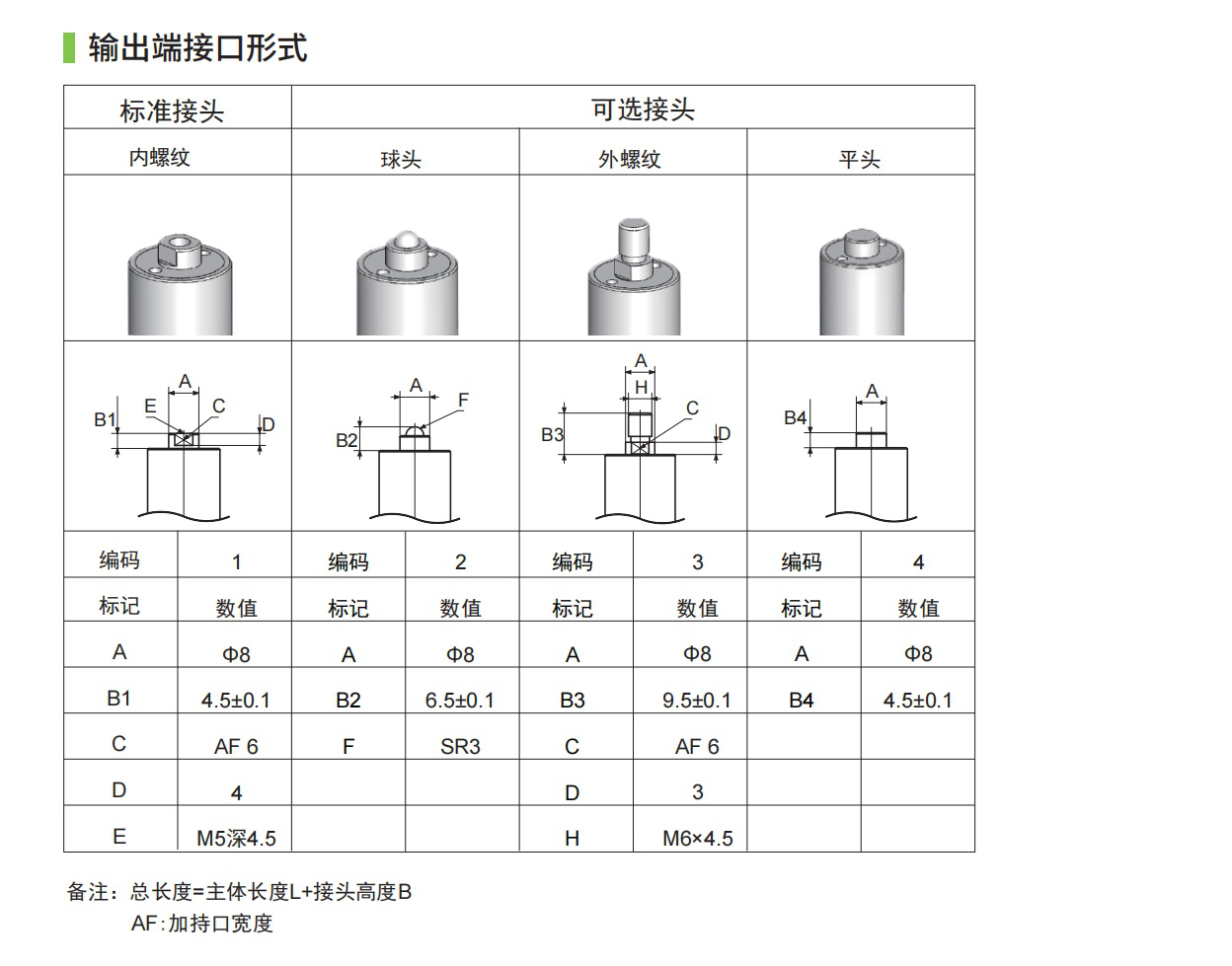

The NS-ZT20 series piezoelectric actuators are precision devices designed for high-performance applications requiring accurate positioning and control. With multiple stroke options and customizable output terminals, these actuators are ideal for various industrial and scientific uses.
Save to Favorites
Overview
Specifications

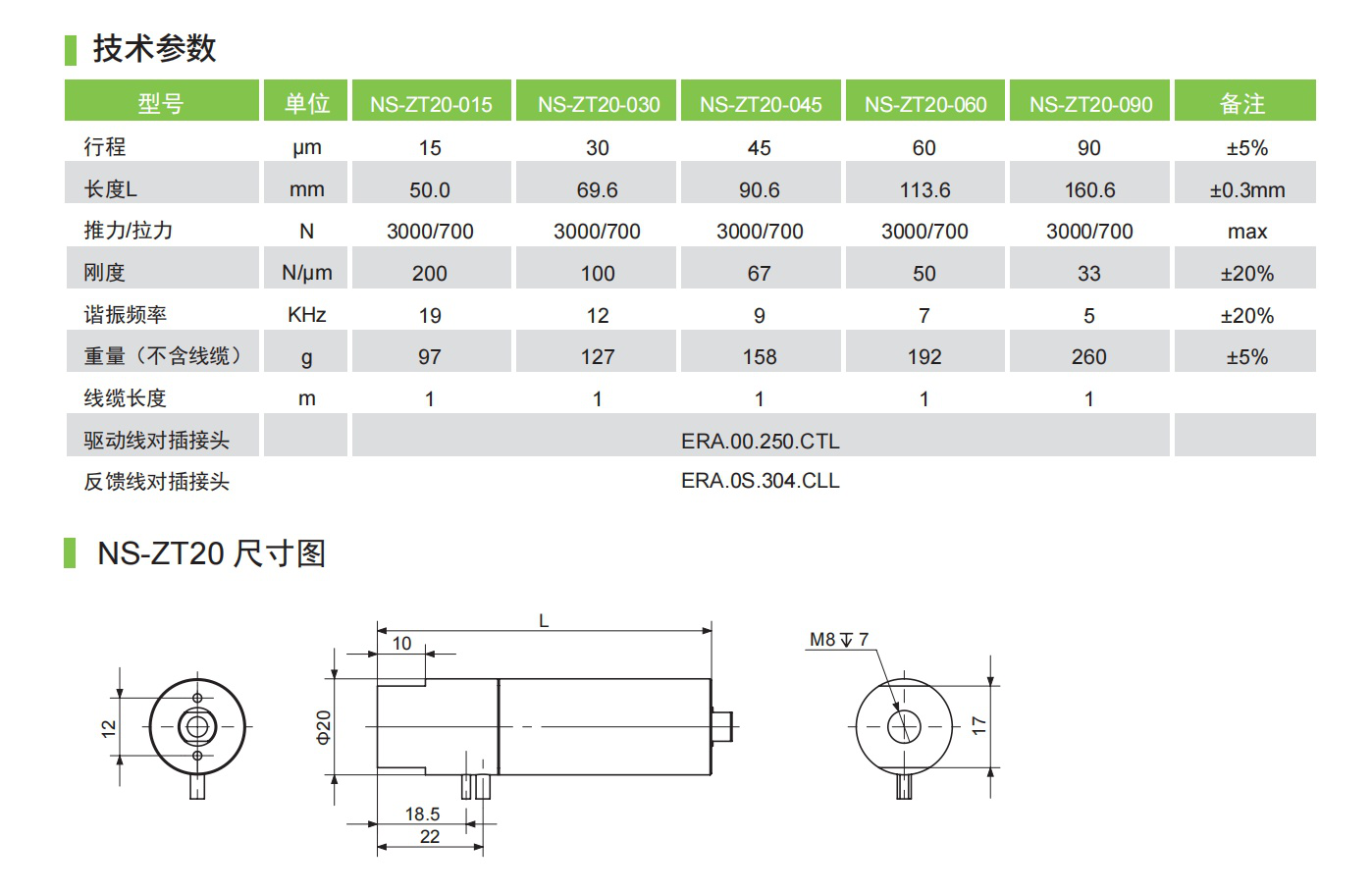

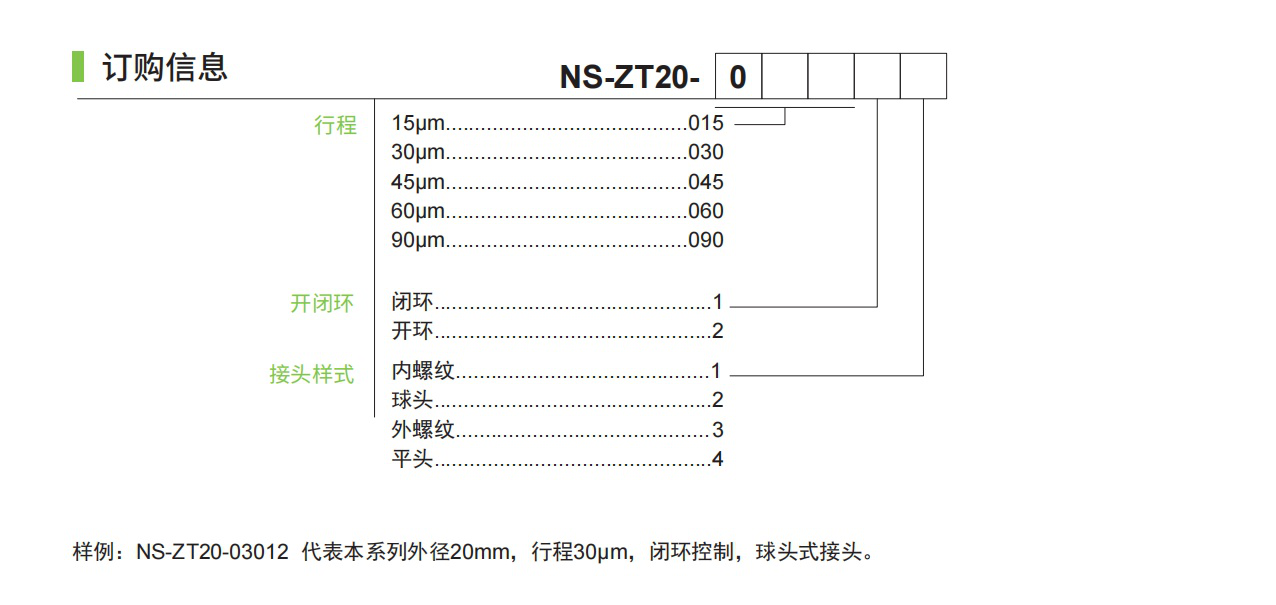

| Parameter | Value |
|---|---|
| Stroke (μm) NS-ZT20-015 | 15±5% |
| Stroke (μm) NS-ZT20-030 | 30±5% |
| Stroke (μm) NS-ZT20-045 | 45±5% |
| Stroke (μm) NS-ZT20-060 | 60±5% |
| Stroke (μm) NS-ZT20-090 | 90±5% |
| Length L (mm) NS-ZT20-015 | 50.0±0.3mm |
| Length L (mm) NS-ZT20-030 | 69.6±0.3mm |
| Length L (mm) NS-ZT20-045 | 90.6±0.3mm |
| Length L (mm) NS-ZT20-060 | 113.6±0.3mm |
| Length L (mm) NS-ZT20-090 | 160.6±0.3mm |
| Push/Pull Force (N) NS-ZT20-015 | 3000/700 maxN |
| Push/Pull Force (N) NS-ZT20-030 | 3000/700 maxN |
| Push/Pull Force (N) NS-ZT20-045 | 3000/700 maxN |
| Push/Pull Force (N) NS-ZT20-060 | 3000/700 maxN |
| Push/Pull Force (N) NS-ZT20-090 | 3000/700 maxN |
| Stiffness (N/μm) NS-ZT20-015 | 200±20% |
| Stiffness (N/μm) NS-ZT20-030 | 100±20% |
| Stiffness (N/μm) NS-ZT20-045 | 67±20% |
| Stiffness (N/μm) NS-ZT20-060 | 50±20% |
| Stiffness (N/μm) NS-ZT20-090 | 33±20% |
| Resonance Frequency (KHz) NS-ZT20-015 | 19±20% |
| Resonance Frequency (KHz) NS-ZT20-030 | 12±20% |
| Resonance Frequency (KHz) NS-ZT20-045 | 9±20% |
| Resonance Frequency (KHz) NS-ZT20-060 | 7±20% |
| Resonance Frequency (KHz) NS-ZT20-090 | 5±20% |
| Weight (excluding cable) (g) NS-ZT20-015 | 97±5% |
| Weight (excluding cable) (g) NS-ZT20-030 | 127±5% |
| Weight (excluding cable) (g) NS-ZT20-045 | 158±5% |
| Weight (excluding cable) (g) NS-ZT20-060 | 192±5% |
| Weight (excluding cable) (g) NS-ZT20-090 | 260±5% |
| Cable Length (m) | 1m |

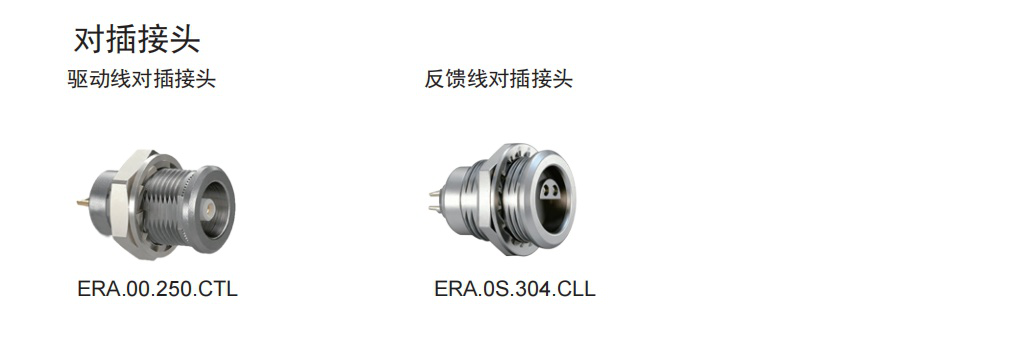

| Drive Line Plug | ERA.00.250.CTL |
| Feedback Line Plug | ERA.0S.304.CLL |
