NS-ZT12 Series Piezoelectric Actuators
The NS-ZT12 series piezoelectric actuators are precision motion control devices designed for applications requiring high accuracy and compact size. They feature various stroke lengths and output terminal options to meet diverse needs.
Save to Favorites
Overview

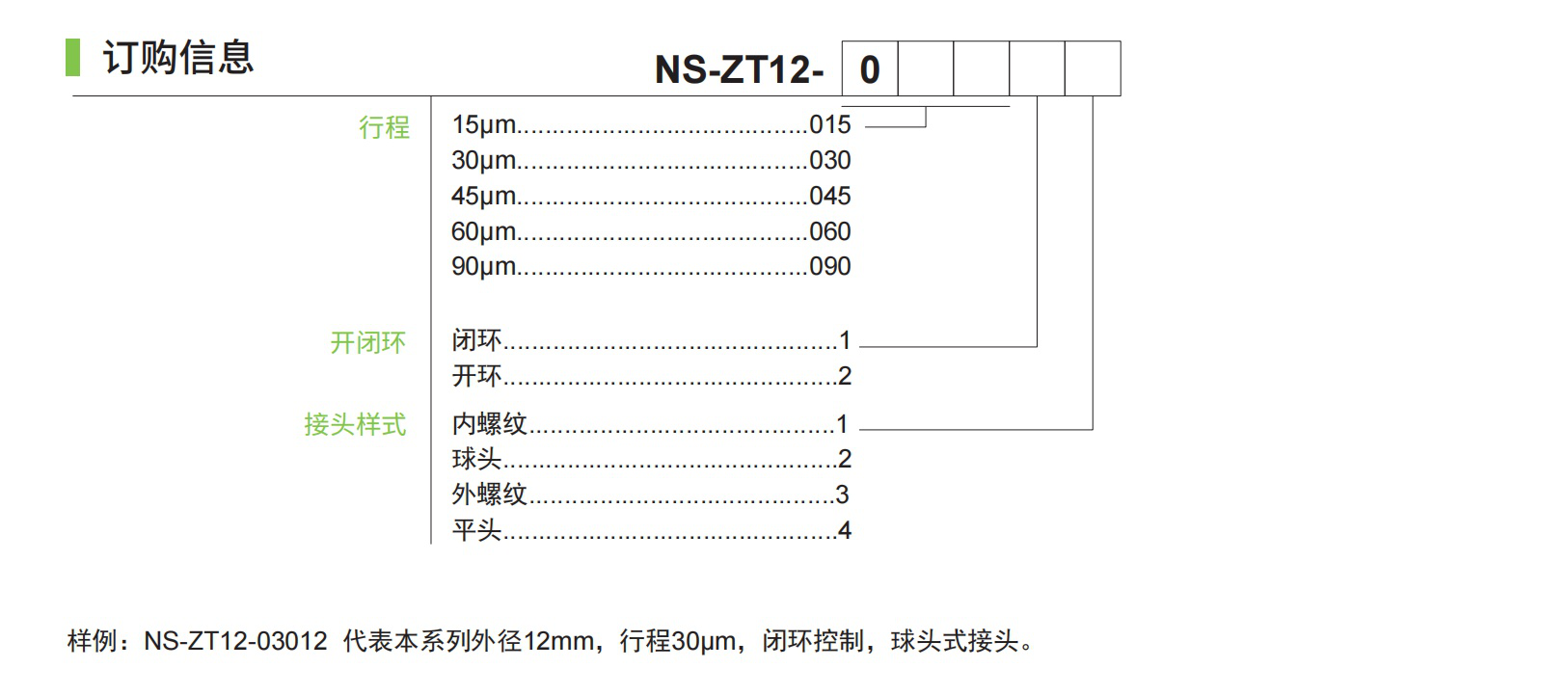

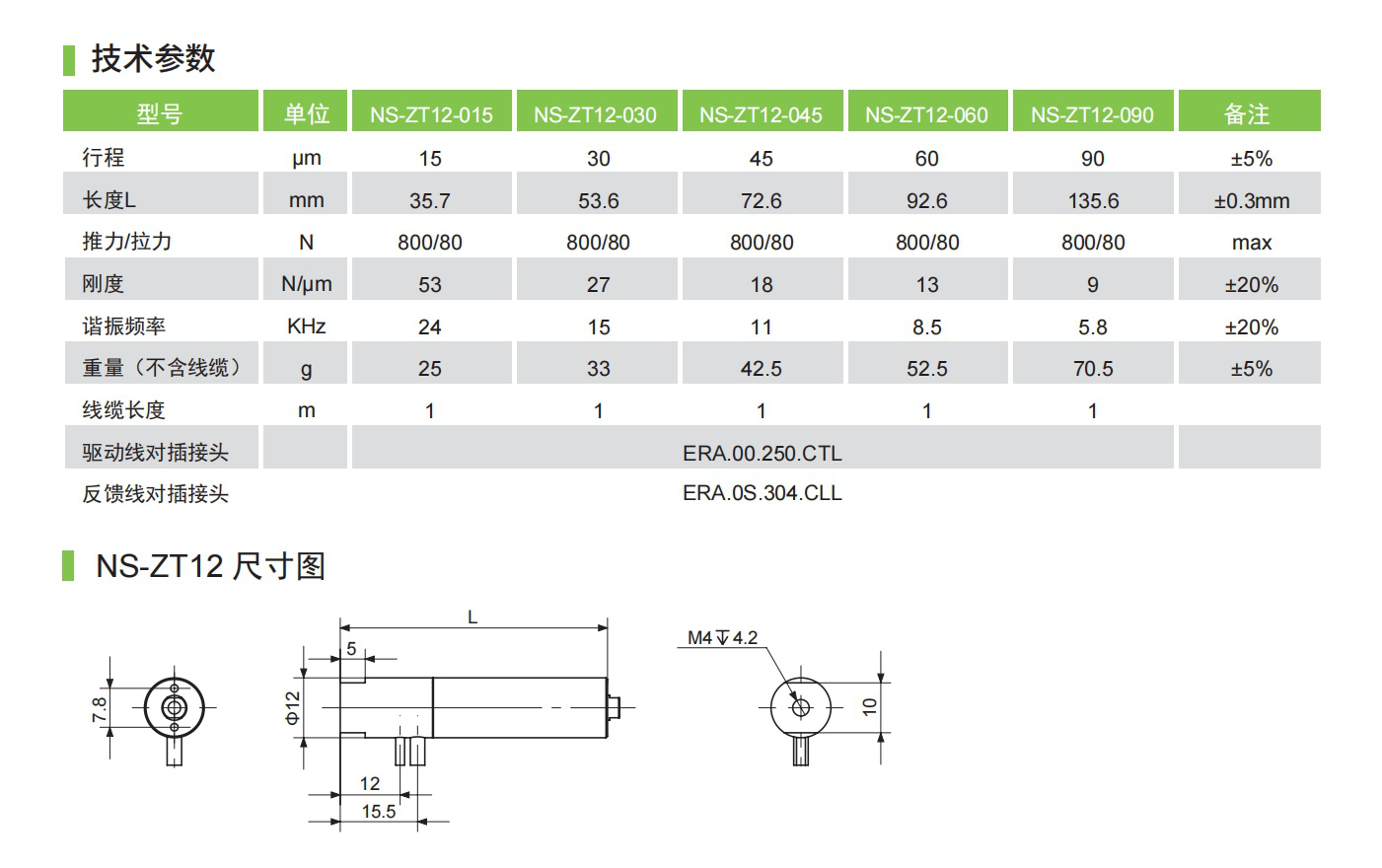

Specifications
| Parameter | Value |
|---|---|
| Stroke (μm) NS-ZT12-015 | 15±5% |
| Stroke (μm) NS-ZT12-030 | 30±5% |
| Stroke (μm) NS-ZT12-045 | 45±5% |
| Stroke (μm) NS-ZT12-060 | 60±5% |
| Stroke (μm) NS-ZT12-090 | 90±5% |
| Length (mm) NS-ZT12-015 | 35.7±0.3 |
| Length (mm) NS-ZT12-030 | 53.6±0.3 |
| Length (mm) NS-ZT12-045 | 72.6±0.3 |
| Length (mm) NS-ZT12-060 | 92.6±0.3 |
| Length (mm) NS-ZT12-090 | 135.6±0.3 |
| Push/Pull Force (N) NS-ZT12-015 | 800/80 max |
| Push/Pull Force (N) NS-ZT12-030 | 800/80 max |
| Push/Pull Force (N) NS-ZT12-045 | 800/80 max |
| Push/Pull Force (N) NS-ZT12-060 | 800/80 max |
| Push/Pull Force (N) NS-ZT12-090 | 800/80 max |
| Stiffness (N/μm) NS-ZT12-015 | 53±20% |
| Stiffness (N/μm) NS-ZT12-030 | 27±20% |
| Stiffness (N/μm) NS-ZT12-045 | 18±20% |
| Stiffness (N/μm) NS-ZT12-060 | 13±20% |
| Stiffness (N/μm) NS-ZT12-090 | 9±20% |
| Resonant Frequency (KHz) NS-ZT12-015 | 15 |
| Resonant Frequency (KHz) NS-ZT12-030 | 11 |
| Resonant Frequency (KHz) NS-ZT12-045 | 8.5 |
| Resonant Frequency (KHz) NS-ZT12-060 | 5.8 |
| Resonant Frequency (KHz) NS-ZT12-090 | 5.8 |
| Weight (g) NS-ZT12-015 | 25±5% |
| Weight (g) NS-ZT12-030 | 33±5% |
| Weight (g) NS-ZT12-045 | 42.5±5% |
| Weight (g) NS-ZT12-060 | 52.5±5% |
| Weight (g) NS-ZT12-090 | 70.5±5% |
| Cable Length (m) | 1 |

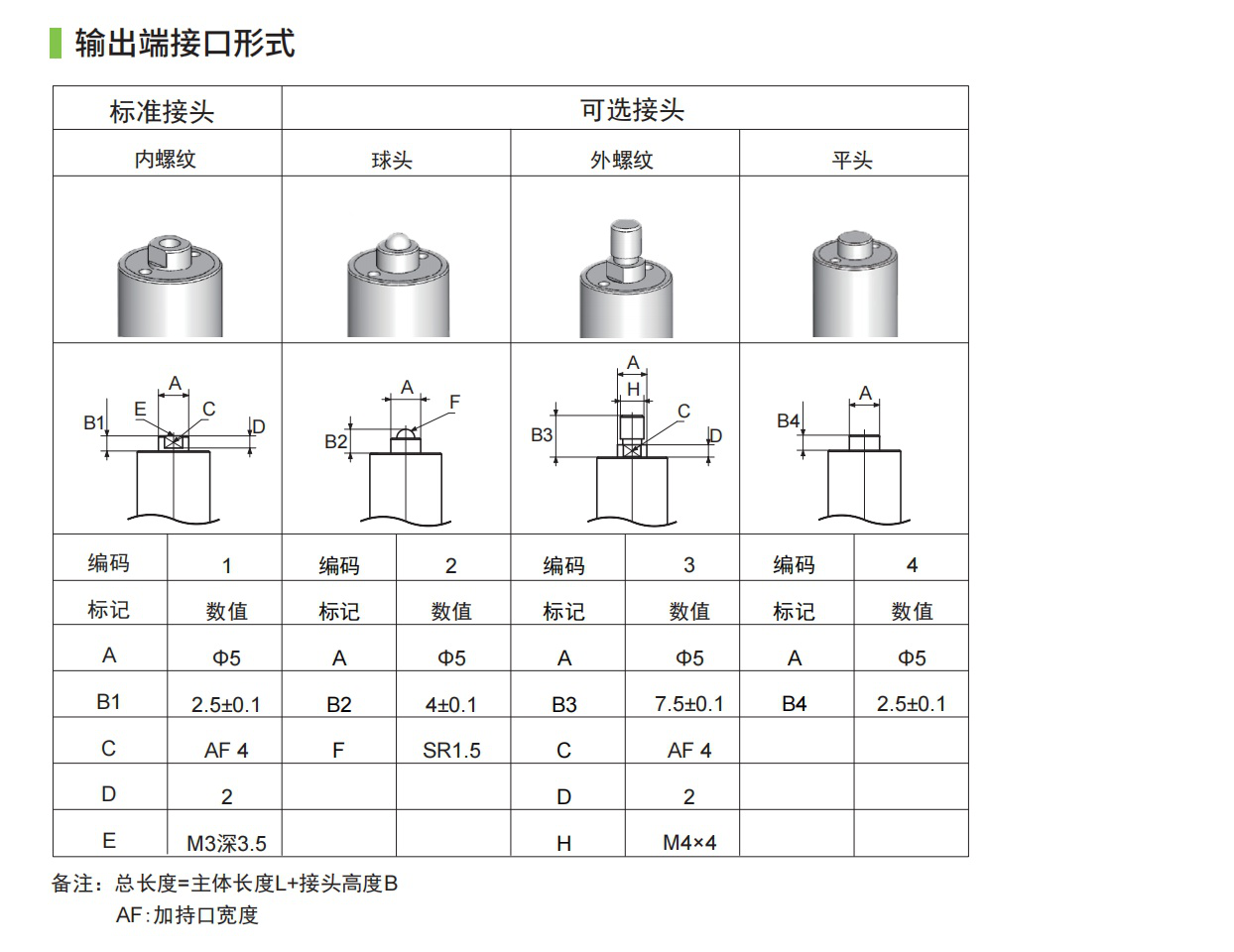

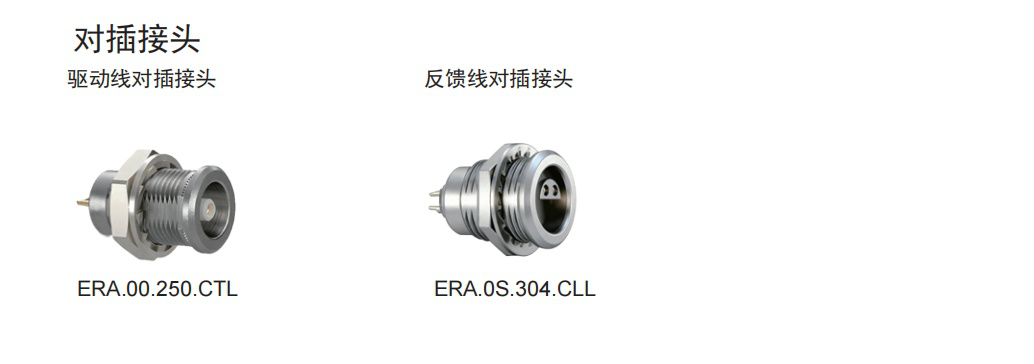

| Drive Cable Connector | ERA.00.250.CTL |
| Feedback Cable Connector | ERA.0S.304.CLL |
