NS-ZT09 Series Actuator
The NS-ZT09 series actuator is a compact and precise linear actuator designed for applications requiring high accuracy and reliability. It features a small form factor and is suitable for various industrial and scientific uses.
Save to Favorites
Overview
Specifications

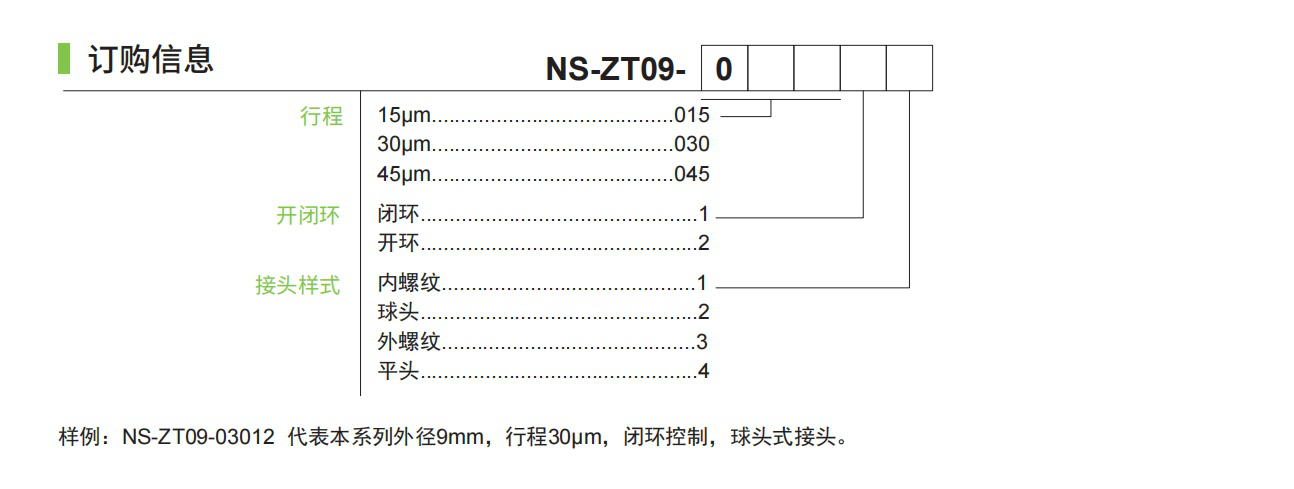

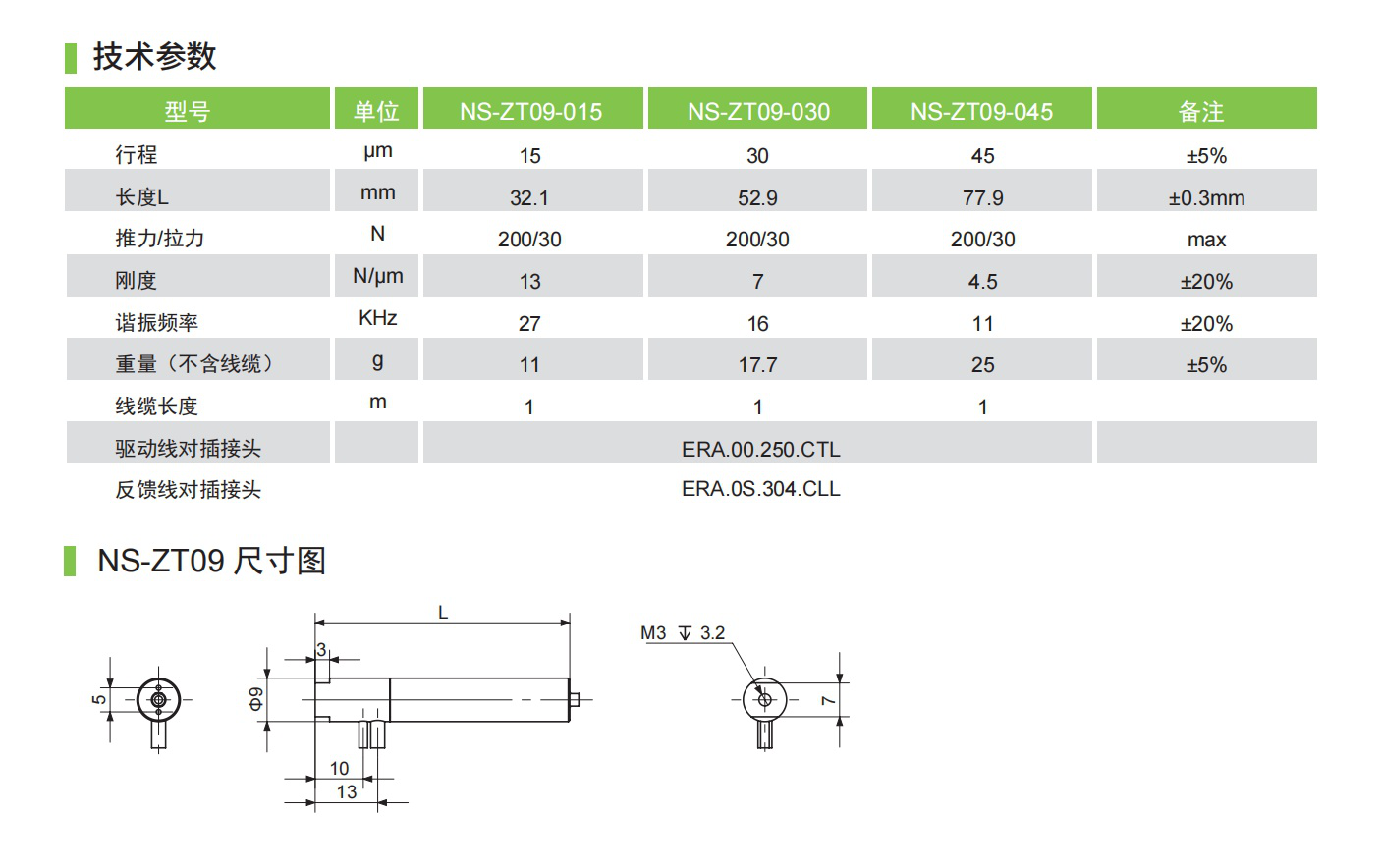

| Parameter | Value |
|---|---|
| Stroke (μm) NS-ZT09-015 | 15±5% |
| Stroke (μm) NS-ZT09-030 | 30±5% |
| Stroke (μm) NS-ZT09-045 | 45±5% |
| Length (mm) NS-ZT09-015 | 32.1±0.3mm |
| Length (mm) NS-ZT09-030 | 52.9±0.3mm |
| Length (mm) NS-ZT09-045 | 77.9±0.3mm |
| Thrust/Force (N) NS-ZT09-015 | 200/30max |
| Thrust/Force (N) NS-ZT09-030 | 200/30max |
| Thrust/Force (N) NS-ZT09-045 | 200/30max |
| Stiffness (N/μm) NS-ZT09-015 | 13±20% |
| Stiffness (N/μm) NS-ZT09-030 | 7±20% |
| Stiffness (N/μm) NS-ZT09-045 | 4.5±20% |
| Resonance Frequency (KHz) NS-ZT09-015 | 27±20% |
| Resonance Frequency (KHz) NS-ZT09-030 | 16±20% |
| Resonance Frequency (KHz) NS-ZT09-045 | 11±20% |
| Weight (g) NS-ZT09-015 | 11±5% |
| Weight (g) NS-ZT09-030 | 17.7±5% |
| Weight (g) NS-ZT09-045 | 25±5% |
| Cable Length (m) | 1 |

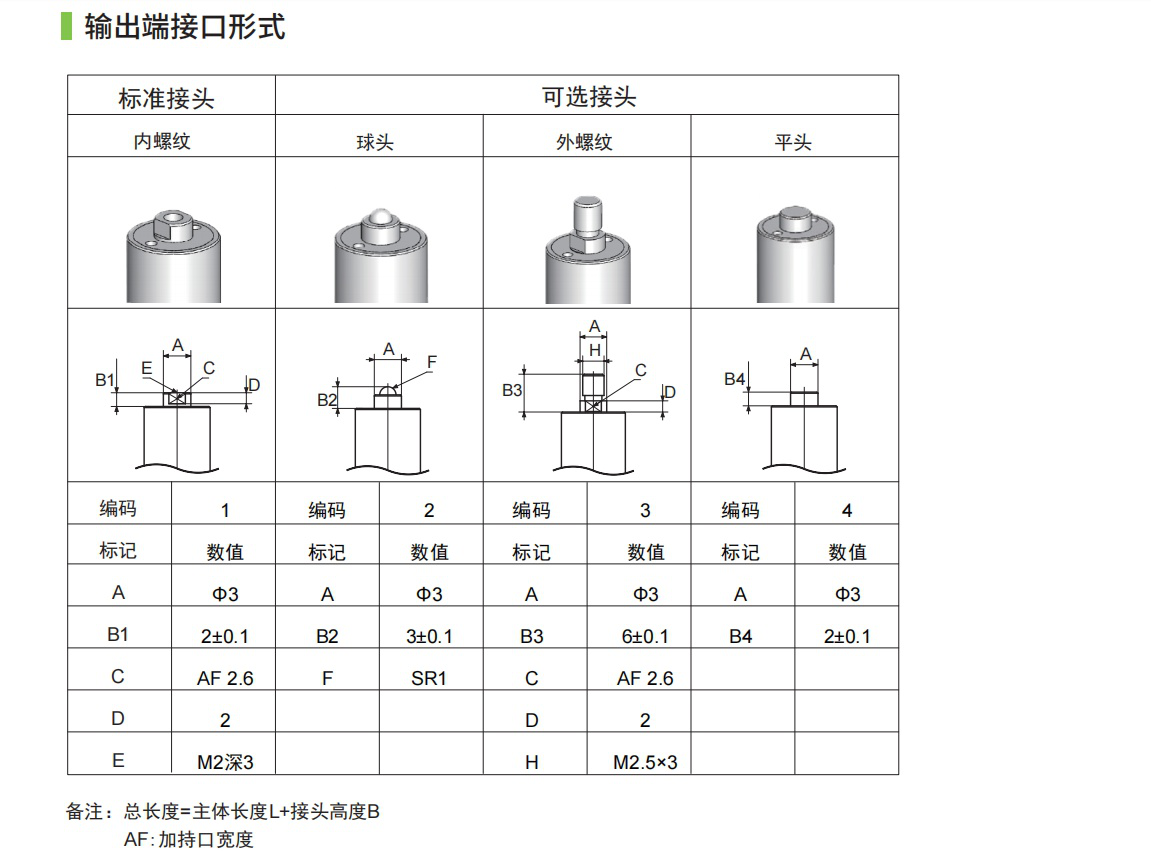

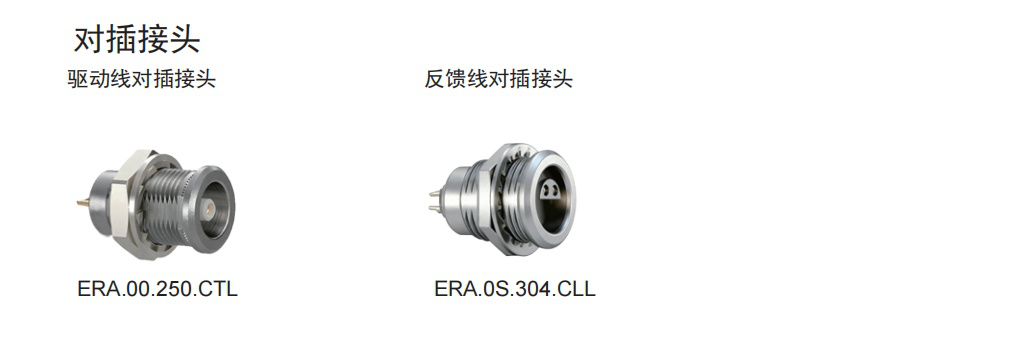

| Drive Cable Connector | ERA.00.250.CTL |
| Feedback Cable Connector | ERA.0S.304.CLL |
